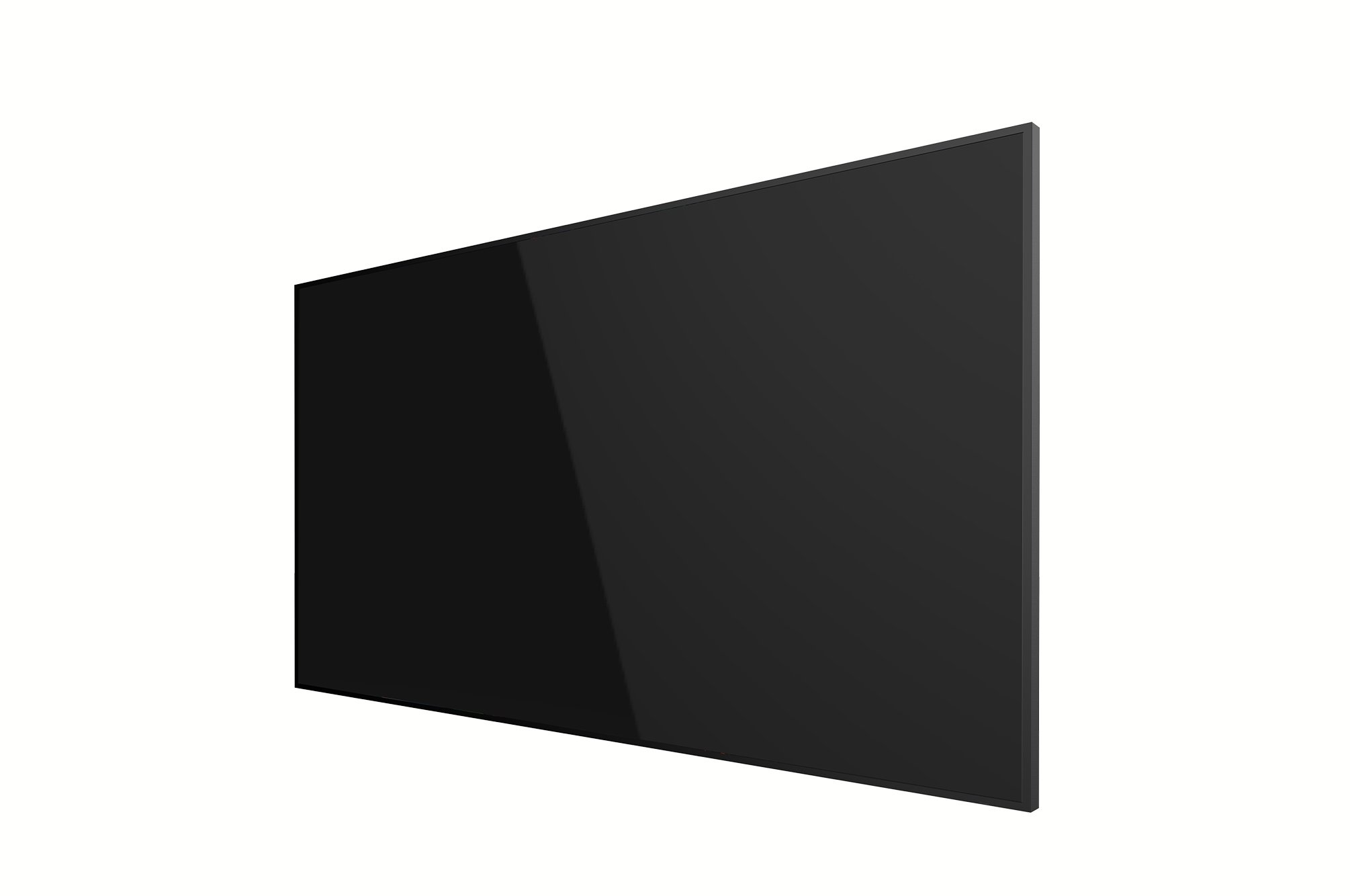

98UM5J

UHD Large Screen Signage Display

Key Feature

  • Brightness : 500 nit (Typ.), 400 nit (Min.)

  • Resolution : ULTRA HD (3,840 x 2,160)

  • Built-in Wi-Fi / Bluetooth

  • Built-in Speaker (10 W + 10 W)


UHD Large Screen Signage Display

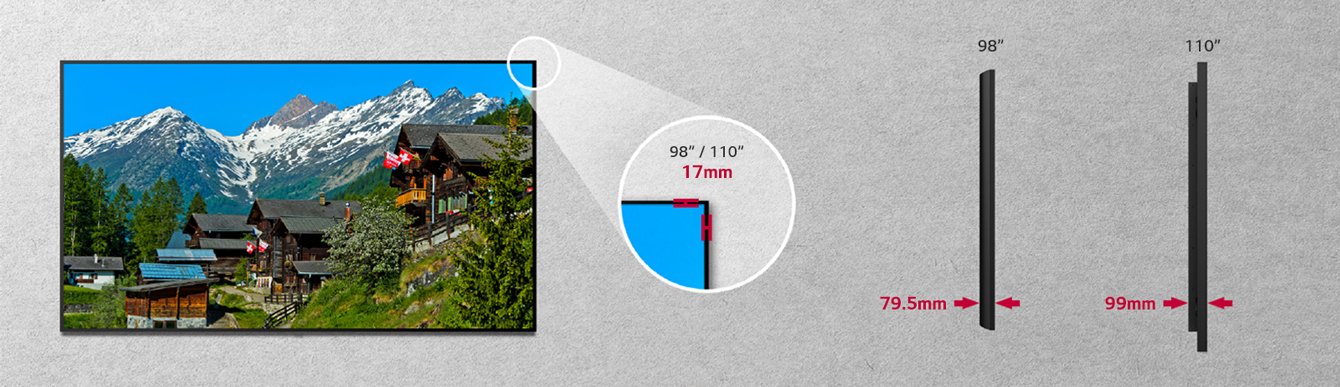

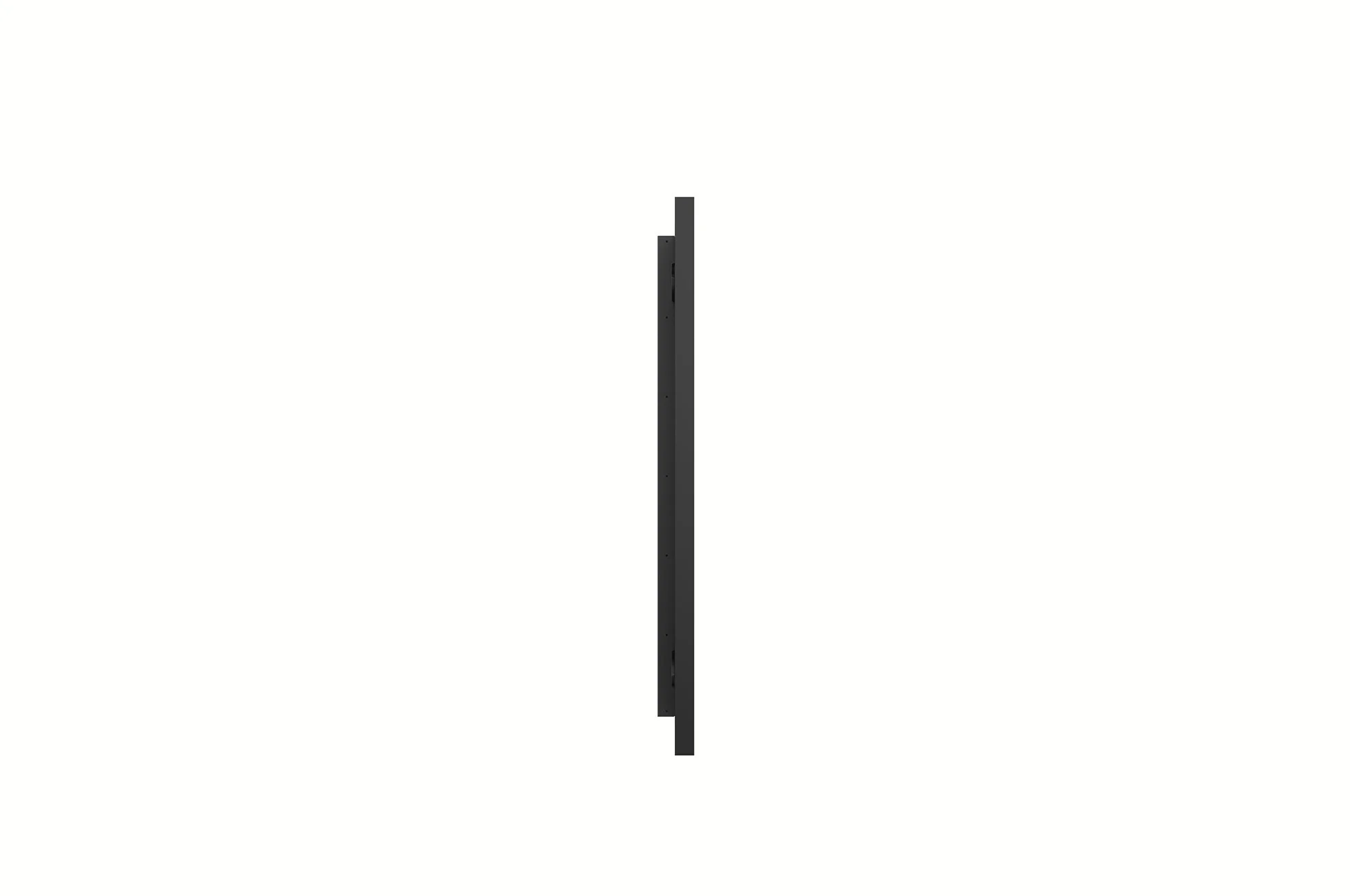

Slim Design

UM5J offers a slim design for a seamless interior, ideal for a closer wall installation. It enhances the immersive experience and adds sophistication to the overall design.

Super High Resolution

Delivering immersive viewing experience by 4 times higher definition picture quality than FHD.

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

* Internal Built-in Speaker Support (L/R max 10 W)

High Brightness

With a great brightness of 500 cd/m², UM5J series clearly deliver contents and attract public attention, which is the ultimate display for market of retail, cooperate etc.

Compatible with webOS Box (WP402)

UM5J is compatible with the webOS Box WP402 and it supports LG SuperSign Solutions when used in conjunction with the box, making content creation and distribution easier. Furthermore, thanks to its compatibility with WP402, UM5J enables display power on/off control through an HDMI-OUT port when connected to the WP402.

Some of WP402 features may NOT be available with UM5J products.
e.g.) Product monitoring-related functions such as DPM, SuperSign Control+, and Control manager
* HDMI-CEC function is only available when connected to the WP402 product, and the supported feature is limited to power on/off control.

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Tech Spec

  • Screen Size 98"

    Panel Technology IPS

    Native Resolution 3,840 X 2,160 (UHD)

    Refresh Rate 60 Hz

    Brightness (Typ.) 500 nit

    Contrast Ratio 1,200 : 1

    Dynamic CR 200,000 : 1

    Color gamut DCI 85%

    Viewing Angle (H x V) 178 Deg.(H) × 178 Deg.(V)

    Color Depth 1.07 Billon Colors (8bit + FRC)

    Response Time 8 ms

    Surface Treatment 25 %

    Life Time (Typ.) 30,000 Hrs

    Operation Hours (Hours / Days) 16 / 7

    Portrait / Landscape Yes / Yes

  • Bezel Color Black

    Bezel Width 17 mm (T/R/L/B)

    Weight (Head) 78 kg

    Packed Weight 105 kg

    Monitor Dimensions (W × H × D) 2,198 × 1,253 × 79.5 mm

    Carton Dimensions (W × H × D) 2,440 × 1,468 × 275 mm (Box outer size)

    VESA™ Standard Mount Interface 800 × 400 mm or 800 × 800 mm

  • Internal Memory (16 GB) (Based on EMMC), Wi-Fi (Built-in, FW update only), Bluetooth (Built-in), Power Indicator, Local Key Operation (7 Key, Power / UP / DOWN / LEFT / RIGHT / INPUT / MENU), webOS Non Smart / Non webOS Platform, Screen Rotation (Only 98”(Manually Change)), HDMI-CEC (power on/off control only)

  • Operation Temperature 0°C to 40°C

    Operation Humidity 10 % to 80 %

  • Power Supply AC 100-240 V~, 50/60 Hz

    Power Type Built-In Power

  • Typ./Max. 560 W / 590 W

    Smart Energy Saving (70%) No

    DPM No

    Power off 0.5 W

    BTU (British Thermal Unit) 1,706 BTU/Hr (Typ.), 1,911 BTU/Hr (Max.)

  • Input HDMI (3), RJ45(LAN) (1, FW update only), USB2.0 Type A (2)

    Output Audio Out (SPDIF, Phone Jack)

  • Speaker Yes (10 W+10 W)

  • English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Türkiye, Arabic

  • Safety UL, CB

    EMC FCC Class “A” / CE

    ErP Yes (NewErP)

  • Basic

    LG Remote Controller, Power Cord, Manual
