43UM5N-H
UHD Signage Display
Key Feature
Resolution : 3,840 x 2,160 (UHD)
Brightness (Typ.) : 500 nit
Surface Treatement (Haze) : 25 %
Bezel : 12.1 mm (T/B), 11.1 mm (R/L)
Interface : HDMI(3) / DP / USB 2.0 / RS232C / RJ45 / Audio / IR
webOS Smart Platform
UHD Signage Display with LG webOS Platform and Advanced Security
* 65 inch
* All images in this page are for illustrative purposes only.
High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Convenient webOS Platform
The UM5N-H is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Durability that Provides Reliability
Optimized for business environments, the UM5N-H is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.
Enhanced Security Features
The UM5N-H provides security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

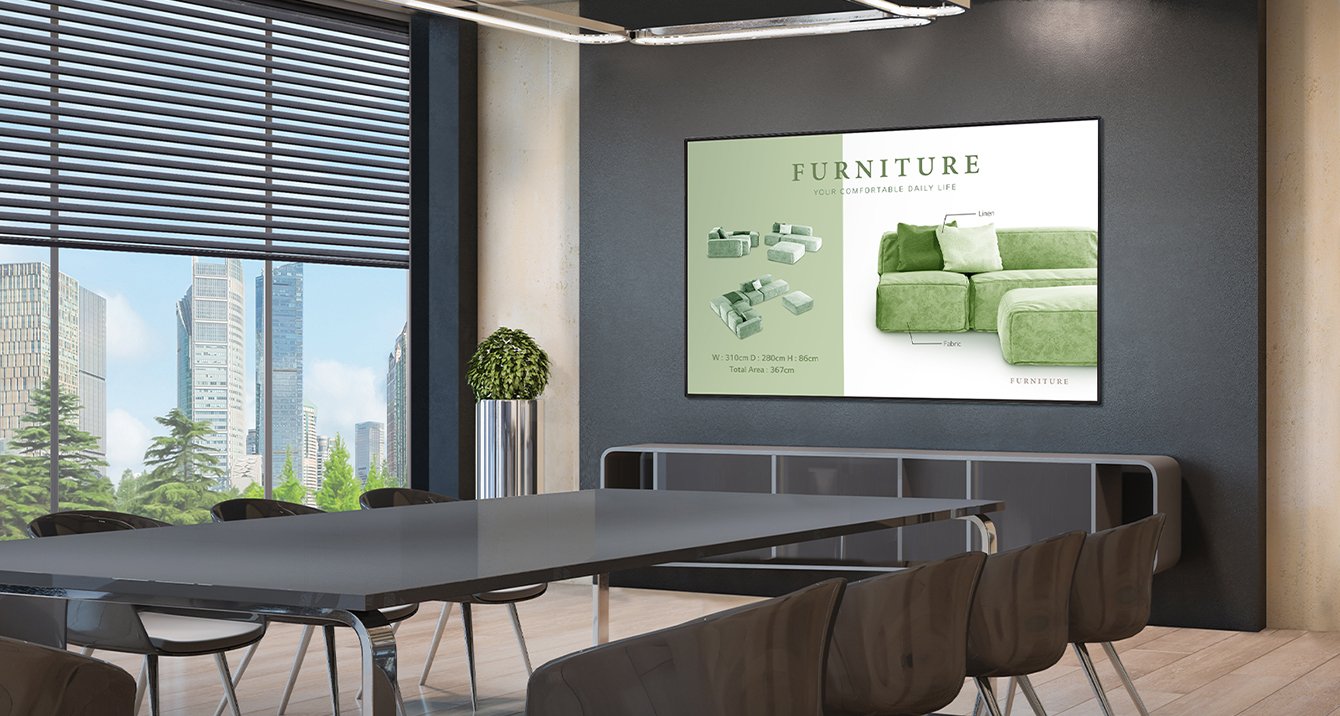

Design for Space Utilization
Designed with thin bezels and simple cable management, the UM5N-H saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.
* All images are for illustrative purposes only.

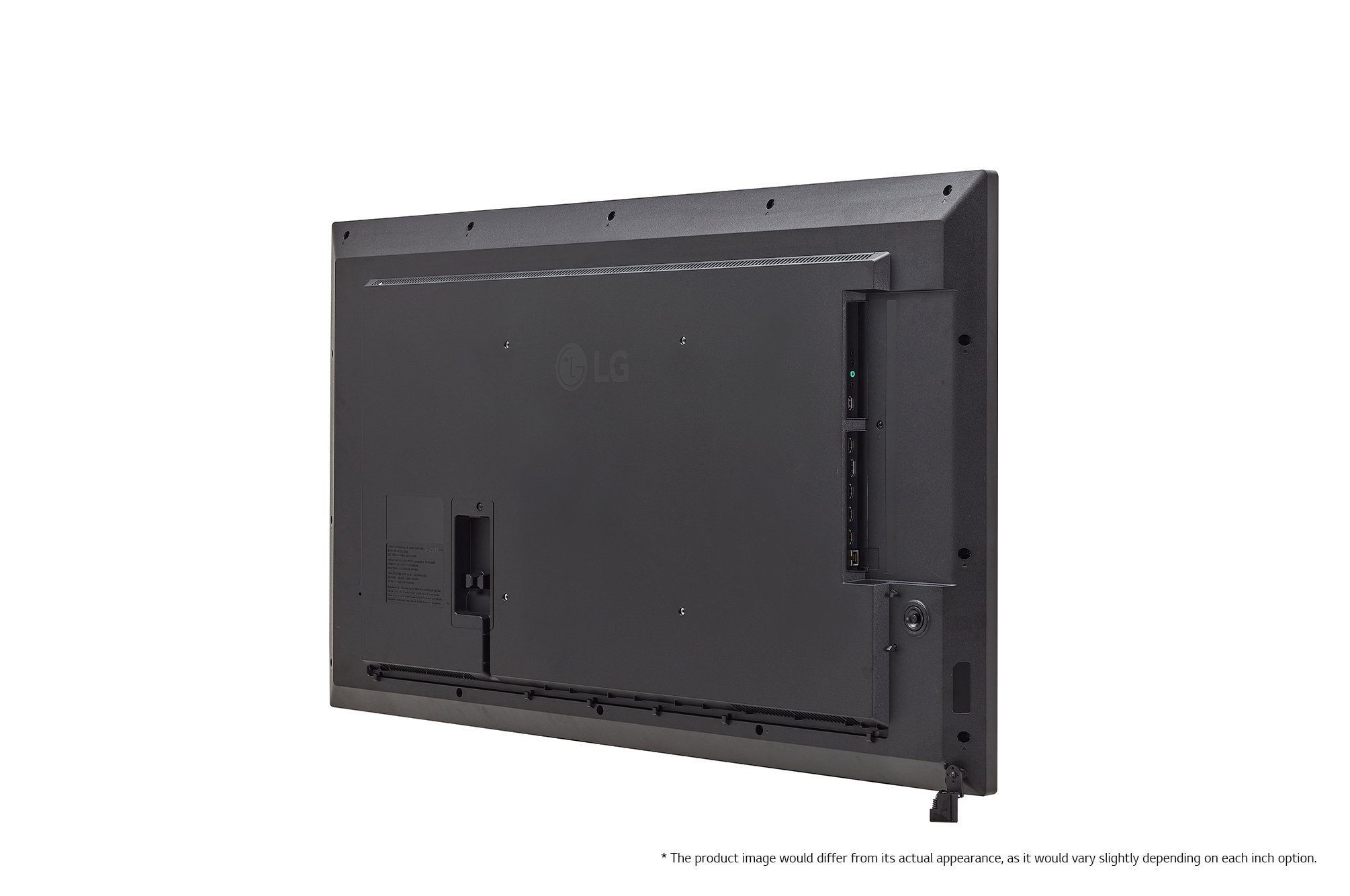

* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Tech Spec
-
Screen Size 43"
Panel Technology IPS
Back Light Type Direct
Aspect Ratio 16 : 9
Native Resolution 3,840 × 2,160 (UHD)
Refresh Rate 60 Hz
Brightness (Typ.) 500 nit
Contrast Ratio 1,000 : 1
Dynamic CR 1,000,000 : 1
Color gamut BT709 95%
Viewing Angle (H x V) 178 × 178
Color Depth 1.07 Billon Colors (10 bit (D))
Response Time Tr : 8ms / Tf :10ms
Surface Treatment (Haze) 25 %
Life Time (Min.) 50,000 Hrs
Operation Hours (Hours / Days) 24 / 7
Portrait / Landscape Yes / Yes
-
Bezel Color Black
Bezel Width 12.1 mm (T/B), 11.1 mm (R/L)
Weight (Head) 9.0Kg
Packed Weight 11.3kg
Monitor Dimensions (W × H × D) 968 x 559 x 57.7mm (Without IR)
Carton Dimensions (W × H × D) 1,055 x 660 x 142mm
Handle No
VESA™ Standard Mount Interface 200 × 200 mm
-
Operation Temperature 0 °C to 40 °C
Operation Humidity 10 % to 80 %
-
Typ./Max. 420 W / 620 W
Smart Energy Saving 294 W
DPM 0.5 W
Power off 0.5 W
BTU (British Thermal Unit) 1,434 BTU/Hr(Typ.), 2,117 BTU/Hr(Max)
-
Safety CB / NRTL
EMC FCC Class "A" / CE / KC
ErP Yes (NewErP)
-
OPS Type Compatible No
OPS Power Built In No
-
OPS Type Compatible No
OPS Power Built In No
-
nput HDMI In (3, 3,840 × 2,160 @ 60Hz, HDCP 2.2/1.4), DP In (3,840 × 2,160 @ 60Hz, HDCP 2.2/1.3), RS-232C In (4 Pin Phone-jack), RJ45 (LAN) In, IR In, USB In 2.0 (Type A)
Output HDMI Out (1, 3,840 × 2,160 @ 30Hz, Input : HDMI1/2/3/DP)
-
nput HDMI In (3, 3,840 × 2,160 @ 60Hz, HDCP 2.2/1.4), DP In (3,840 × 2,160 @ 60Hz, HDCP 2.2/1.3), RS-232C In (4 Pin Phone-jack), RJ45 (LAN) In, IR In, USB In 2.0 (Type A)
Output HDMI Out (1, 3,840 × 2,160 @ 30Hz, Input : HDMI1/2/3/DP)
-
English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Turkish, Arabic
-
English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Turkish, Arabic
-
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, EYE Bolt
-
Tilt (Facedown) Yes (Max 30º degree, 40ºC temperature)
IP Rating IP5X
Conformal Coating (Power Board) Yes
