43UH7J-H

UHD Standard Signage

Key Feature

  • Brightness(Typ.) : 700 nit

  • Surface Treatment (Haze) : 25%

  • Bezel : 8.4 mm (T/R/L), 14.4 mm (B)

  • Depth : 39.9 mm

  • Interface : HDMI(2)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR

  • Built-in Speaker


New High Haze UHD Standard Signage |

New High Haze UHD Standard Signage |

High Brightness

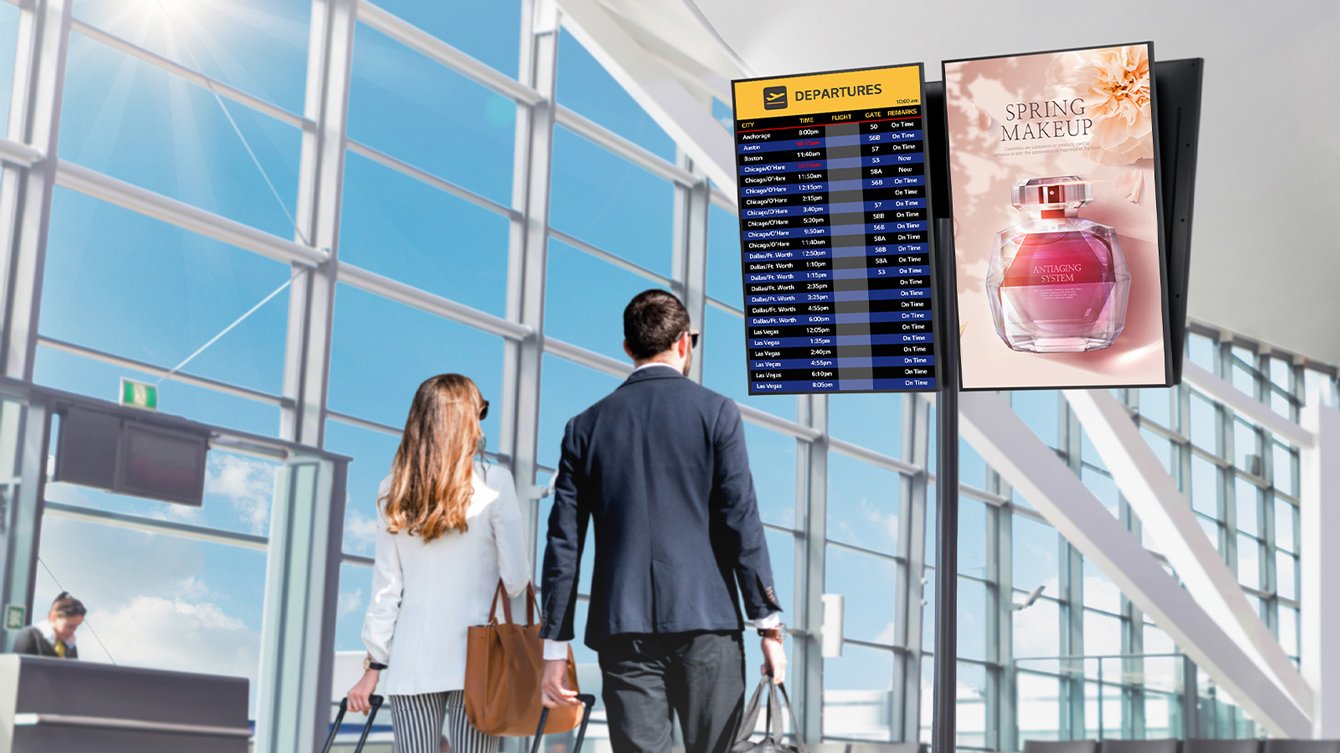

With a great brightness of 700 cd/m2, the UH7J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in airports, retail, shopping malls etc

High-Performance with webOS

LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

Conformal Coating

In various places the UH7J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH7J-H series from salt, dust, iron powder, humidity, etc.

* Actual images (signage display) available may differ from the example images shown.

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.

Tech Spec

  • Screen Size 43"

    Panel Technology IPS

    Back Light Type Edge

    Aspect Ratio 16:9

    Resolution 3,840 X 2,160 (UHD)

    Refresh Rate 60 Hz

    Brightness (Typ.) 700 nit

    Contrast Ratio 1,200:1

    Dynamic CR 1,000,000:1

    Color gamut BT709 95%

    Viewing Angle (H x V) 178 × 178

    Color Depth 8 bits + FRC, 1.07 Billion colors

    Response Time 8 ms (G to G)

    Surface Treatment (Haze) 25 %

    Life Time (Min.) 50,000 Hrs

    Operation Hours (Hours / Days) 24 / 7

    Portrait / Landscape Yes / Yes

  • Bezel Color Black

    Bezel Width T/R/L: 8.4mm, B: 14.4mm

    Weight (Head) 11.2 Kg

    Weight (Head+Stand) 11.8 Kg

    Packed Weight 13.7 Kg

    Monitor Dimensions (W × H × D) 962.5 x 568.0 x 39.9 mm (with LG Logo)

    Monitor Dimensions with Stand (W × H × D) 962.5 x 613.1 x 290.0 mm

    Carton Dimensions (W × H × D) 1,060.0 x 660.0 x 152.0 mm (Box outer size)

    VESA™ Standard Mount Interface 200 × 200 mm

  • Internal Memory 16 GB

    Wi-Fi Yes

    Temperature Sensor Yes

    Auto Brightness Sensor Yes

    Acceleration(Gyro) Sensor Yes

    Local Key Operation Yes

  • webOS ver. webOS 6.0

    Embedded CMS Local Contents Scheduling, Group Manager

    USB Plug & Play Yes

    Fail over Yes

    Multi-screen PIP, PBP (4)

    Screen Share Yes

    Background Image Booting Logo Image, No Signal Image

    Sync Mode RS-232C Sync, Local Network Sync

    Video Tag Yes (4)

    Play via URL Yes

    Rotation Screen Rotation, External Input Rotation

    Gapless Playback Yes

    Tile Mode Setting Yes (Max. 15x15)

    Setting Data Cloning Yes

    SNMP Yes

    ISM Method Yes

    Auto Set ID Yes

    Status Mailing Yes

    Control Manager Yes

    3rd Party Compatibility Crestron Connected

    Beacon Yes

    Power Smart Energy Saving, PM mode, Wake on LAN, Network Ready

    HDMI-CEC Yes

    SI Server Setting Yes

    webRTC Yes

    Pro:Idiom Yes

  • Operation Temperature 0 °C to 40 °C

    Operation Humidity 10 % to 80 %

  • Power Supply AC 100-240V~, 50/60Hz

    Power Type Built-In Power

  • Typ./Max. 80W / 120W

    Smart Energy Saving 56W

    DPM 0.5W

    Power off 0.5W

    BTU (British Thermal Unit) 273 BTU/Hr(Typ.), 410 BTU/Hr(Max.)

  • OPS Type Compatible Yes

  • SuperSign CMS Yes

    SuperSign Control / Control+ Yes

    SuperSign WB Yes

    SuperSign Media Editor Yes

    LG ConnectedCare Yes

    Mobile CMS Yes

  • Input

    HDMI (2, HDMI1/HDMI2 : HDCP 2.2/1.4), DP (1, USB-C(DP Alternate mode) shared), DVI-D, Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1), USB2.0 Type C ((1), without PD funtion)

    Output

    DP Out (1, Input : HDMI1/2/DVI/DP/USB-C/OPS), Audio Out, RS232C OUT (1, 4pin Phone-jack)

  • Speaker Yes

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Turkish, Arabic

  • Safety CB / NRTL

    EMC FCC Class "A" / CE / KC

    ErP Yes (NewErP)

  • Basic

    Remote Controller (include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, USB-C Cable

    Optional

    Stand (ST-653T), Wall bracket (LSW350B), OPS Kit (KT-OPSF)

  • Tilt (Facedown) Yes (Max 15º degree, 30ºC temperature, humidity 50%)

    IP Rating IP5X

Business Resources

Dimension: 55uh7j_2d.pdf
