43TNF5J

Touch Open Frame

Key Feature

  • Key Feature

  • Brightness : 500 nit

  • Multi Touch Point : 10 Points (Max.)

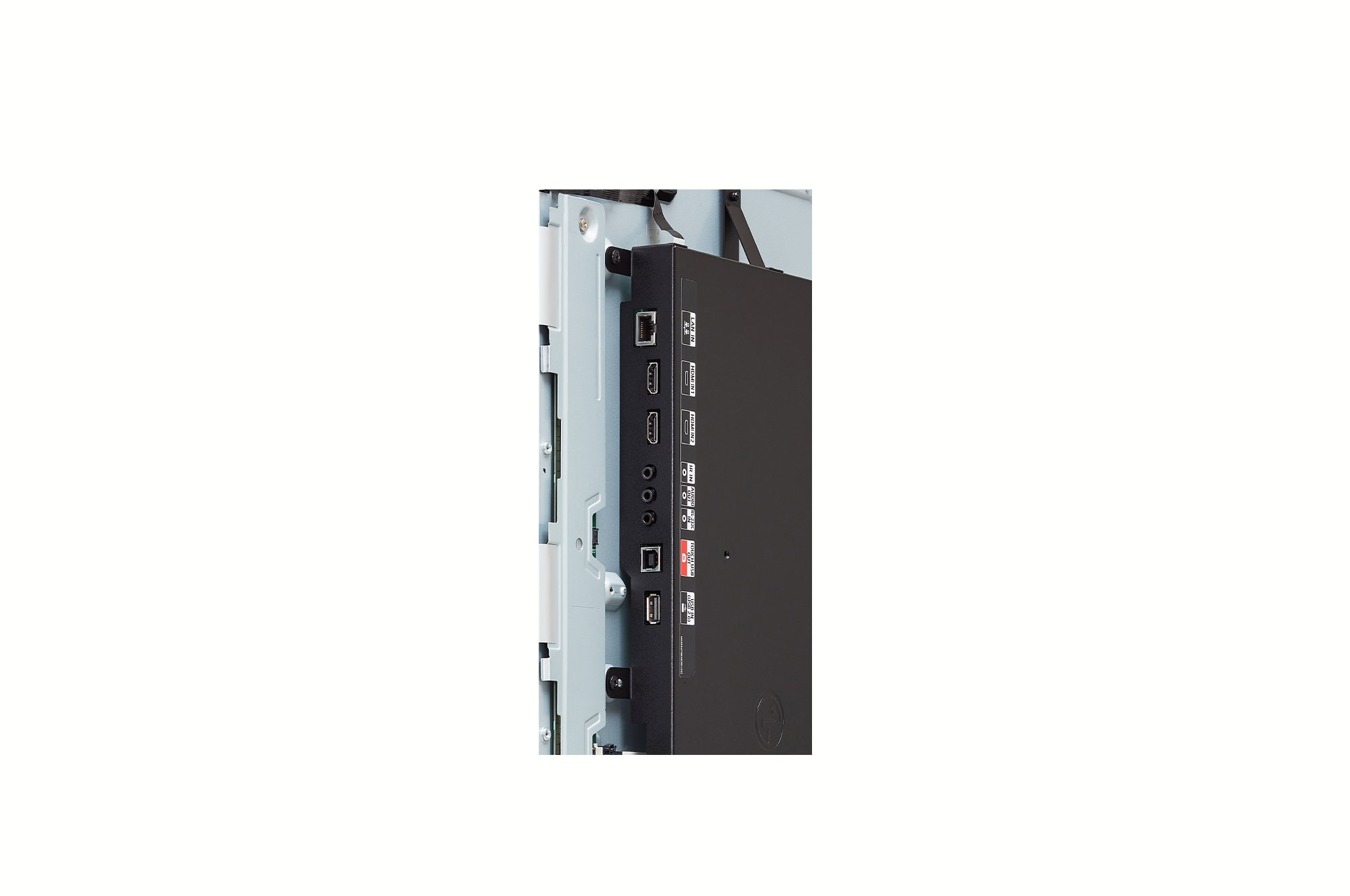

  • Interface : HDMI (2, HDCP 2.2/1.4), RS-232C In, RJ45(LAN), IR In, USB2.0 Type A, Audio Out, Touch USB (USB 2.0 Type B)


New In-Cell Touch Open Frame for Optimal Customization

* All images are for illustrative purposes only.

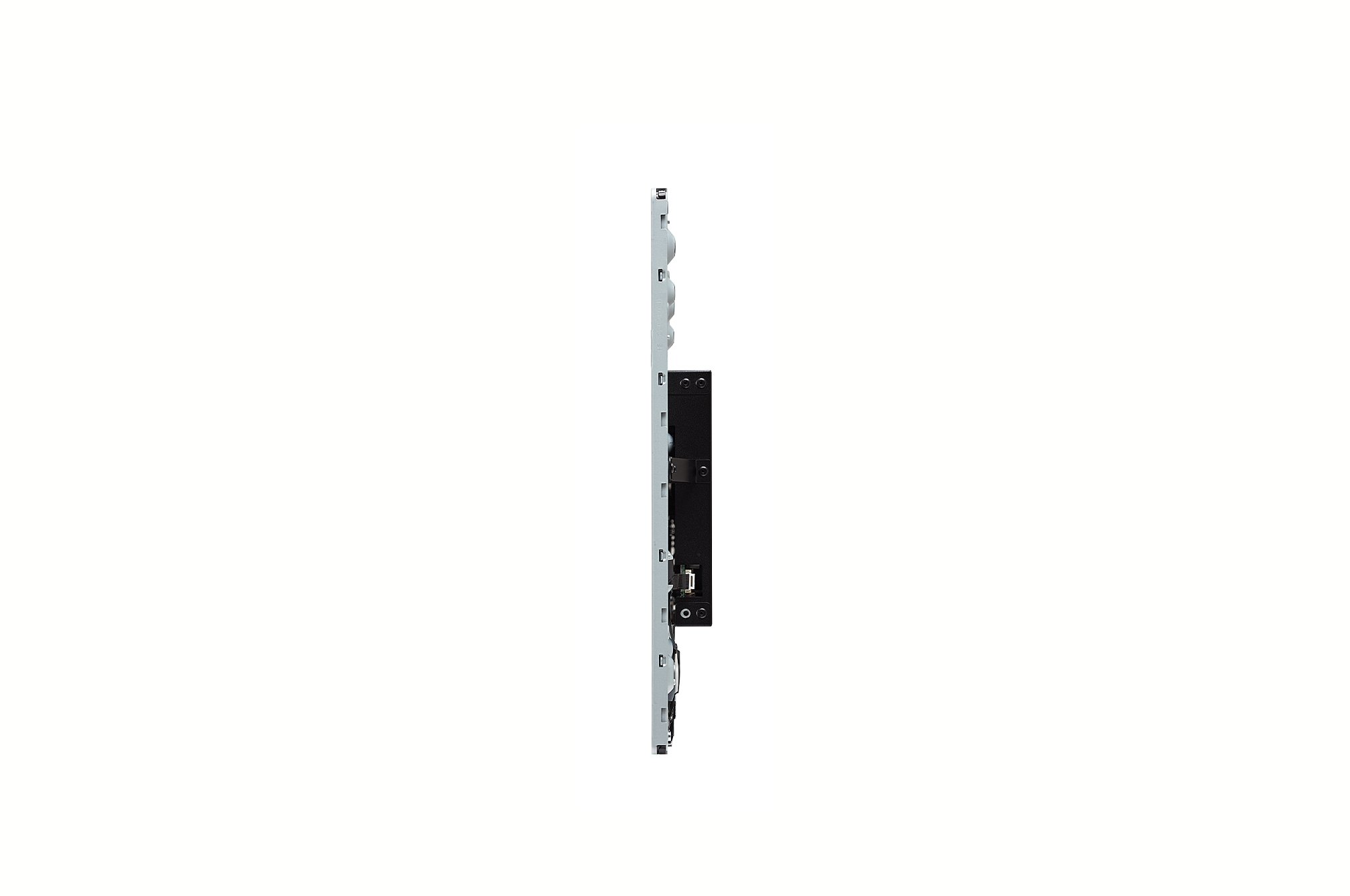

Slim & Light

The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).

Clear Picture Quality

Compared to general touch products, TNF5J implements clear picture quality without milk effects caused by additional touch sensor film parts.

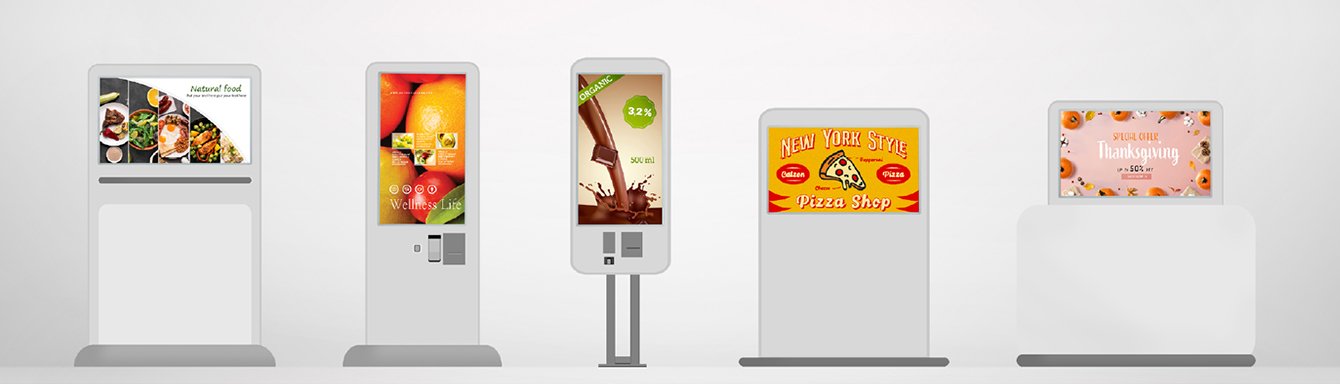

Design Flexibility

By providing integrated parts such as touchscreen, display, and webOS, users can realize free design for their own needs.

Wide Viewing Angle

IPS panel technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle

45-degree Tilt (Face up) Installation Possible

When a display is installed at low places, it is usually tilted for the user’s viewing comfort. Considering this, the installation with a max tilt of 45 degrees is supported.

10 Points of Multi-Touch

The TNF5J provides a more realistic touch sensation since it can recognize up to 10 points of multi-touch at once, and various touchbased user services can be provided through the screen.

Tech Spec

  • Screen Size 43"

    Panel Technology IPS

    Native Resolution 3,840 x 2,160 (UHD)

    Brightness 500 nit

    Contrast Ratio 1,000:1

    Color gamut NTSC 72%

    Viewing Angle (H x V) 178 x 178

    Color Depth 10bit, 1.07Billion colors

    Response Time 9ms (G to G)

    Surface Treatment (Haze) Haze 12%

    Operation Hours (Hours / Days) 24 / 7

    Portrait / Landscape Yes / Yes

  • Bezel Color Black

    Bezel Width 10.9 / 10.9 / 10.9 / 13.5 mm

    Weight (Head) 10.4 kg

    Monitor Dimensions (W × H × D) 967.2 x 559 x 38.0 mm

    VESA™ Standard Mount Interface 200 x 200

  • Internal Memory 8GB (System 5GB + Available 2.48GB)

    Temperature Sensor Yes

  • webOS ver. webOS 6.0

    Embedded CMS Local Contents Scheduling, Group Manager

    USB Plug & Play Yes

    Fail over Yes

    Background Image Booting Logo Image, No Signal Image

    Video Tag Yes

    Play via URL Yes

    Screen Rotation Yes

    Gapless Playback Yes

    Setting Data Cloning Yes

    SNMP Yes

    ISM Method Yes

    Status Mailing Yes

    Control Manager Yes

    3rd Party Compatibility Crestron Inside

    Power Smart Energy Saving, PM mode, Wake on LAN, Network Ready

    HDMI-CEC Yes

    SI Server Setting Yes

    webRTC Yes

    Pro:Idiom Yes

  • Operation Temperature 0 °C to 40 °C

    Operation Humidity 10% to 80%

  • Power Supply AC 100-240V~, 50/60Hz

    Power Type Built-In Power

  • Typ. 95 W

    Max. 110 W

    BTU (British Thermal Unit) 324 BTU/Hr (Typ.), 375 BTU/Hr (Max.)

  • Safety CB / NTRL

    EMC FCC Class "A"/ CE / KC

    ErP Yes

  • SuperSign CMS Yes

    SuperSign Control / Control+ Yes

    LG ConnectedCare Yes

  • Input Digital (HDMI(2), HDCP 2.2/1.4), RS232C IN, RJ45(LAN), IR IN, USB2.0 Type A(1)

    Output Audio Out, USB2.0 Type B(1)

  • Speaker No

  • OSD English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Arabic, Turkish, Polski

  • Basic Power Cord 1.55m, USB Cable (Type A-Type B) 1.8m, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver

  • Available Object Size for Touch Ø6mm ↑

    Reponse Time (Based on 'Paint' app on Windows 10 PC) 90ms ↓

    Accuracy 3.5mm±0.5mm

    Interface USB 2.0

    Operating System Support Windows 10

    Multi Touch Point Max. 10 Points
