22XE1J-B
Outdoor Display
Key Feature
Brightness (Typ, w/ Glass) : 1,500 nits
IP56 Rated Dust / Water Proof
21.5" of Versatile Display Size
Wide Operating Temperature Range
webOS Smart Platform
Web-based Monitoring Solutio
Versatile Outdoor Display Fit for Your Business
* All images in this web page are for illustrative purposes only.
High Visibility Under Bright Environments
With a brightness of 1,500 nits, 22XE1J boasts high visibility in bright environments. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.
21.5 inches of Versatile Screen Size
The small and light size of 21.5 inches allows for flexible use in various spaces. In particular, you can install the display in various way allowing for high utilization for small-medium businesses (SMB) to large businesses.
Secured Protection with IP56 Design
The display is sealed with IP56 design for reliable operation. It’s designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, which is an essential feature for outdoor application.
Wide Operating Temperature Range
22XE1J can be used under a wide range of operating temperatures which results in fewer constraints for outdoor installation.
Conformal Coating
Conformal Coating* improves reliability of the circuit board, power board by protecting it against dust, iron powder, humidity, etc.
* Conformal Coating : Thin protective films/breathing membranes that filter water vapor and solid debris
Tech Spec
-
Screen Size 21.5"
Panel Technology AHVA (IPS)
Back Light Type Edge
Aspect Ratio 16:9
Native Resolution 1,920 x 1,080 (FHD)
Refresh Rate 60Hz
Brightness 1,500nit (Typ, w/ Glass)
Contrast Ratio 1,000:1 (Typ)
Dynamic CR 800,000:1
Color gamut NTSC 72%
Viewing Angle (H x V) 178 x 178
Color Depth 8bit, 16.7Million colors
Response Time 25ms (G to G)
Surface Treatment (Haze) Anti glare, 3H (Haze 25%)
Lifetime 50,000 Hrs (Min.)
Operation Hours (Hours / Days) 24/7

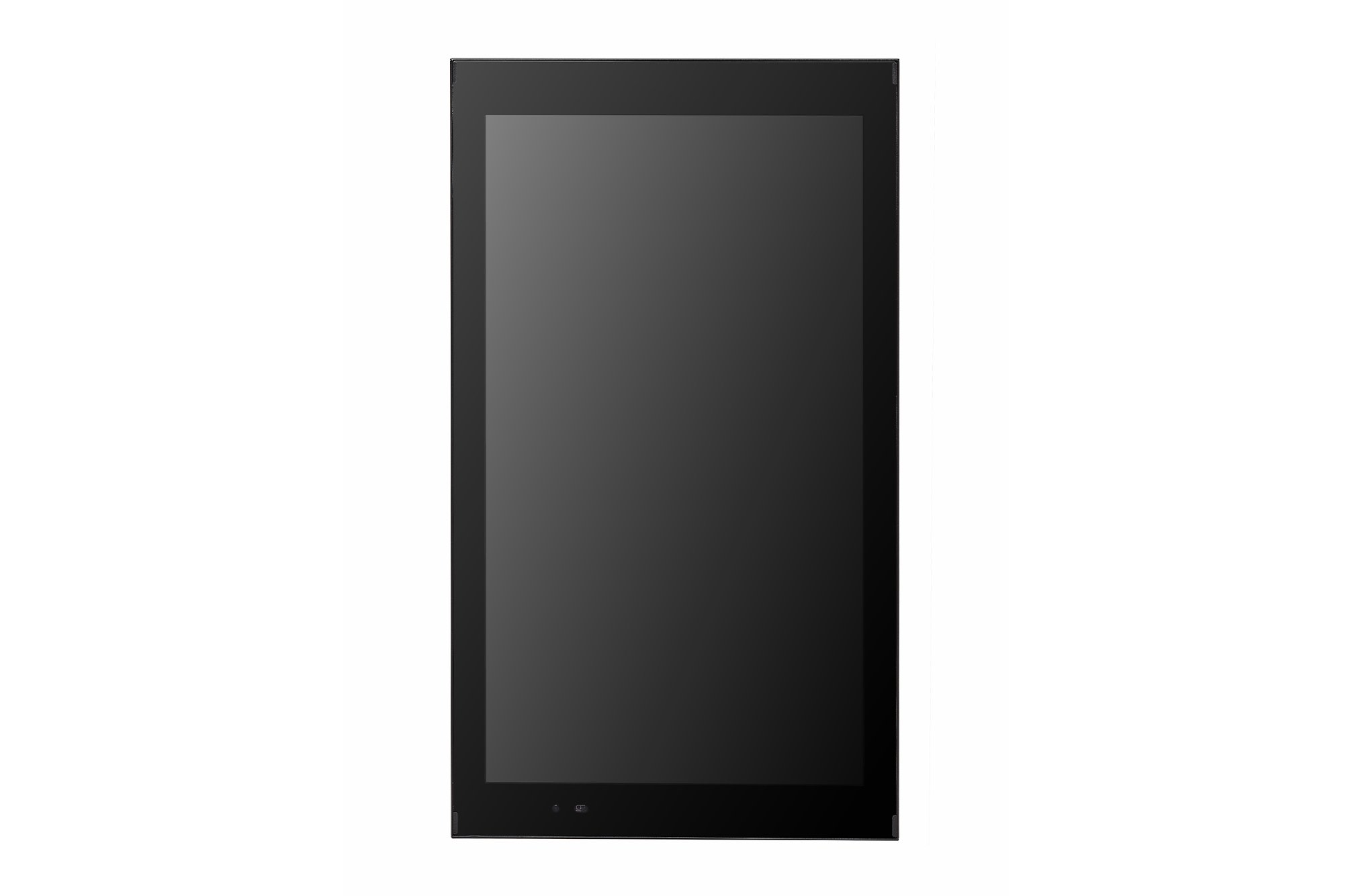

Portrait / Landscape Yes / Yes
QWP (Quarter Wave Plate) Yes (Apply on glass)
-
Bezel Color Black
Bezel Width 38.3mm (R/L), 24.0mm (T/B)
Weight (Head) 8.7 kg
Packed Weight 10kg
Monitor Dimensions (W × H × D) 557.3 x 319.8 x 66 mm
Carton Dimensions (W × H × D) 632 x 394 x 187 mm (Box outer size)
VESA™ Standard Mount Interface 100x100
Protection Glass Depth 3mm, Tempered / Chemical strengthening (Chemical strengthening), Anti-Reflective, Infrared - Resistance (IR), Shatter-Proof
-
HW Internal Memory 16GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Humidity Sensor, Acceleration (Gyro) Sensor, Power Indicator, FAN
SW webOS ver. (webOS4.1), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (Local Network Sync), Video Tag (4, Max One HDMI input), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Status Mailing, Control Manager, Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting , webRTC, Pro:Idiom
-
Operation Temperature -30°C to 50 °C
Operation Humidity 5 % to 100 %
-
Power Supply AC 100-240V~, 50/60Hz
Power Type Built-In Power
-
Typ. 85W (Full White)
36W (IEC 62087)
Max. 115W
DPM 0.5W↓
Power off 0.5W↓
BTU (British Thermal Unit) 290 (Typ), 393 (Max)
-
Safety CB / NRTL
EMC FCC Class "A" / CE / KC / VCCI
ErP Yes
-
SuperSign CMS Yes
SuperSign Control / Control+ Yes / Yes
LG ConnectedCare Yes
-
Input HDMI (HDCP 2.2), RS232C IN, RJ45 (LAN), USB2.0 Type A (1)
Output Externel Speaker Out (1, L/R, 10W+10W)
-
OSD English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Türkiye
-
Basic
Remote Controller (including battery 2ea), Power Cord, Manual (EIG, IG), RS-232C Gender
-
Tilt (Facedown) Yes (Max -15º degree, Face Down) PP
IP Rating IP56
Direct Sunlight Yes
