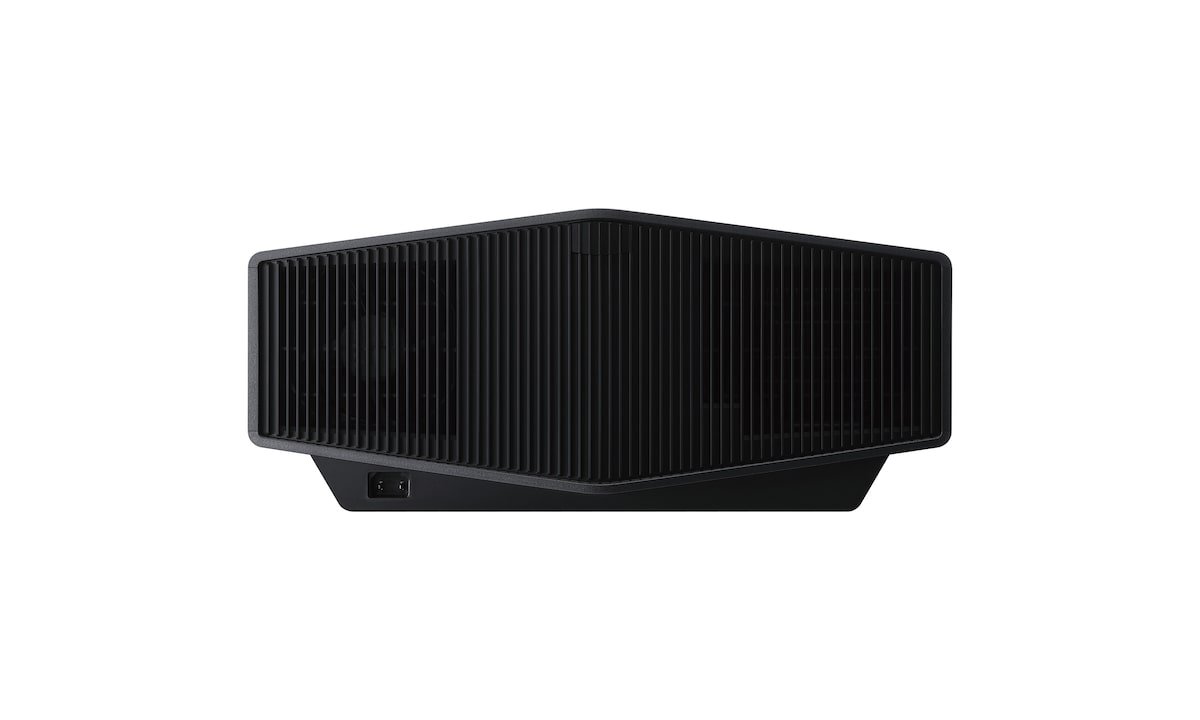

SONY VPL-XW5000ES
4K Home Cinema Projector
VPL-XW5000ES
Bring home true 4K entertainment with a high-value laser projector
New innovative technologies deliver a more immersive viewing experience with extreme clarity, expanded dynamic range for HDR and expanded color volume
-
Extreme Clarity
-
Expended Dynamic Range for HDR
-
Expanded Color Volume
Up to 2,000-lumen
laser light source
Savor the action with up to 2,000 lumens of high brightness, generated by a long-lasting laser light source, for vibrant images even on a large screen
World’s most compact native 4K laser projector
We've designed the VPL-XW5000ES to be even smaller and lighter than its predecessors by developing the all-new Native 4K SXRD panel and compact Wide Dynamic Range Optics. This laser projector is about 30% smaller in volume and about 35% lighter than the VPL-VW915ES, delivering the same high brightness.
-
Eco and energy saving
Power Consumption (Standby Mode)
0.3 W (When "Remote Start" is set to "Off")
Power Consumption (Networked Standby Mode)
0.5 W (LAN) (when "Remote Start" is set to "On") When a LAN terminal is not connected, it becomes a low power consumption mode (0.5 W)
Standby Mode Activated
After about 10 Minutes
Interface
Input and Output Terminals
HDMI (TWO INPUTS) - Digital RGB/Y Pb/Cb Pr/Cr, IR IN - Minijack, LAN - RJ45, 10Base-T/100BASE-TX, REMOTE - RS-232C, D-sub 9-pin (male), TRIGGER - Minijack, DC 12 V Max. 100 mA, USB - Type A, DC 5 V, Max. 500 mA
Power
Power Consumption
295 W
Power Requirement
AC 100 V to 240 V, 50/60 Hz
Acoustic noise
24 dB
Size & Weight
Dimensions (W x H x D)
18.13" x 7.88" x 18.59"
Weight
Approx. 28 lb (13 kg)
Accessibility
Screen Reader
Yes
Display
Display Resolution
720 x 576/50p, 720 x 480/60p, 1280 x 720/50p, 1280 x 720/60p, 1920 x 1080/50i, 1920 x 1080/60i, 1920 x 1080/24p, 1920 x 1080/50p, 1920 x 1080/60p, 1920 x 1080/120p, 3840 x 2160/24p, 3840 x 2160/25p, 3840 x 2160/30p, 3840 x 2160/50p, 3840 x 2160/60p, 4096 x 2160/24p, 4096 x 2160/25p, 4096 x 2160/30p, 4096 x 2160/50p, 4096 x 2160/60p
Display System
4K SXRD™ panel, projection system
Light source
Laser diode
Picture processor
X1™ Ultimate for projector
Hardware
Projection lens zoom / focus
Manual (Approx. x1.60) / Manual
Operating Conditions
Operating temperature / humidity
41 °F to 95 °F (5 °C to 35 °C) / 20% to 80% (no condensation)
Storage temperature / humidity
14 °F to +140 °F (–10 °C to +60 °C ) / 20% to 80% (no condensation)
Video Features
Color Light Output
2000 lm
Light Output
2000 lm
General Features
Contrast Ratio
∞: 1 (Dynamic Contrast)
Effective Imager Size
0.61 in x 3
Effective pixels
24,883,200 (3840 x 2160 x 3) pixels
Projection lens shift
Manual, Vertical +/- 71%, Horizontal +/- 25%
Throw ratio
1.38:1 to 2.21:1
