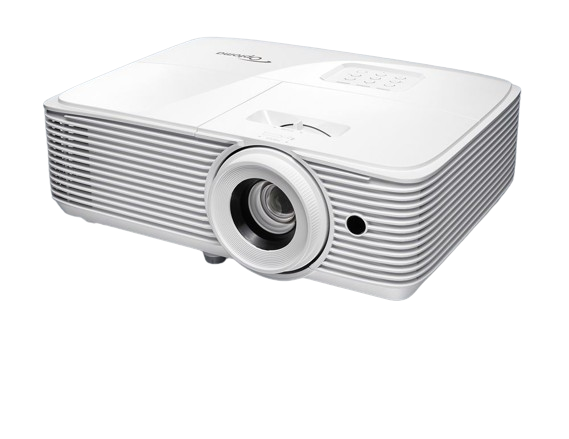

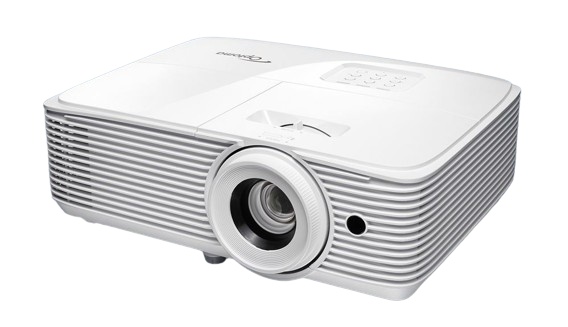

Optoma EH339

1080p / WUXGA Data DLP projector

E9PV7GA10EZ1ET

Compact Full HD projector

The EH339 is a compact Full HD projector boasting a high brightness of 3800 lumens. Designed for use any time of day, this versatile projector is suited to professional use - from meeting rooms to classrooms. This feature packed projector is 4K and HDR compatible, has a built-in speaker, offers high quality projected colours and a long lamp life for a lower overall cost of ownership.

Boasting a sleek, simple design and multiple inputs including 2x HDMI, this projector is ideal for connecting HDMI dongles for easy connection to a laptop, PC or Blu-ray player. This compact model can either be installed or conveniently taken on the move.

Features

Bright Full HD 1080p projector

- 3800 lumens for big screen presentations

4K UHD and HDR compatible

- See more detail and texture for a greater sense of depth

Easy connectivity

- 2x HDMI, USB power and built-in speaker

Portable and lightweight

- Easy installation or conveniently take on the move

Lights on viewing

This versatile projector combines high brightness and vivid colours for vibrant, true-to-life visuals in any environment*. Make a lasting impression with bigger and bolder presentations any time of day.

*With no direct sunlight or lights directed on screen.

Lights on viewing

Amazing colours

Give powerful presentations and educational lessons with stunning colours. Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.

Superior contrast

Add more depth to your image with a high contrast projector. Compared to competing technology, Optoma DLP projectors provide you with brighter whites and ultra-rich blacks, images come alive and text appears crisp and clear - ideal for business and education applications.

Special Contrast

  • Display/image

    Display technology : DLP™

    Resolution : 1080p Full HD (1920x1080)

    Brightness : 3,800 lumens

    Contrast ratio : 22,000:1

    Native aspect ratio : 16:9

    Aspect ratio - compatible : 4:3

    Keystone correction - vertical : +/-40°

    Horizontal scan rate : 15.38 ~ 91.15Khz

    Vertical scan rate : 50 ~ 85(120 for 3D)Hz

    Uniformity : 80%

    Screen size : 0.76m ~ 7.65m (29.93" ~ 301.14") diagonal

    Lamp info

    Light source type : Lamp

    Lamp watts : 240

    Lamp life hours (up to) : 4000 (Bright), 15000 (Dynamic), 10000 (Eco)

    Optical

    Throw ratio : 1.5:1 ~ 1.66:1

    Projection distance (m) : 1.1m - 10m

    Zoom : 1.1

    Zoom type : Manual

    Focal length (mm) : 15.84 ~ 17.42

    Native offset : 116%

    Connectivity

    Connections : Inputs 1 x HDMI 2.0, 1 x HDMI 1.4a 3D support

    Outputs 1 x Audio 3.5mm, 1 x USB-A power 1.5A

    General

    Noise level (min) : 27dB

    Noise level (max) : 29dB

    PC compatibility : UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac

    2D compatibility : NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz), 4K UHD (24/30/50/60Hz)

    3D compatibility : Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60

    3D : Full 3D

    Security : Security bar, Kensington Lock, Password protected interface

    OSD / display languages : 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese

    24/7 operation : Yes

    Operating conditions : 5°C ~ 40°C, Max. Humidity 85%, Max. Altitude 3000m

    Remote control : Card style

    Heat dissipation : 1,023BTU/hour

    Speaker count : 1

    Watts per speaker : 3W

    In the box

    AC power cord

    Remote control

    Battery

    Basic user manual

    Input lag : 8.40ms

    Optional wireless models : WHD200, UHDCast Pro, QuickCast

    Power

    Power supply : 100 ~ 240V, 50 ~ 60Hz

    Power consumption (standby) : 0.5W

    Power consumption (min) : 210W

    Power consumption (max) : 290W

    Weight and dimensions

    Dimensions (W x D x H) mm : 316 x 244 x 108

    Gross weight : 3.9 kg

    Net weight : 2.88 kg
