EXCELLENCE IN EDUCATION

MAXHUB Interactive Flat Panel E2 Series

Best-in-class performance comes easily with the MAXHUB Interactive Flat Panel E2 Series. Combining a pro-grade display with effortless operation and innovative safety features to protect students’ health, this classroom all-star meets the unique needs of young learners and those who teach them.

E6520

65" Education IFP , Android 11.0 ,4G RAM ,32G Storage , IR Touch , 2 x 12W Speaker , TUV Low Blue Light

A display that focuses attention, and fuels interaction.

Content comes alive on the E2 Series’ 4K, high-contrast screen. Images, text and handwriting are rendered with astonishing sharpness and professional-grade color accuracy. The flicker-free screen reduces eye strain, and anti-glare glass eliminates distracting reflections.

Flicker-free screen | Anti-glare glass | 4K resolution | Color ΔE ≤ 2

Easy on the eyes.

TÜV-certified to protect eyes and preserve students’ vision, the E2 Series’ display minimizes visual fatigue by reducing blue light and reflections, eliminating flicker, and automatically adjusting brightness to adapt to the indoor environment.

Ambient light sensor | Eye-care mode | TÜV Certified Low Blue Light | TÜV Certified Flicker Free

MAXHUB Interactive Flat Panel E2 Series

Maximize utility with simplicity.

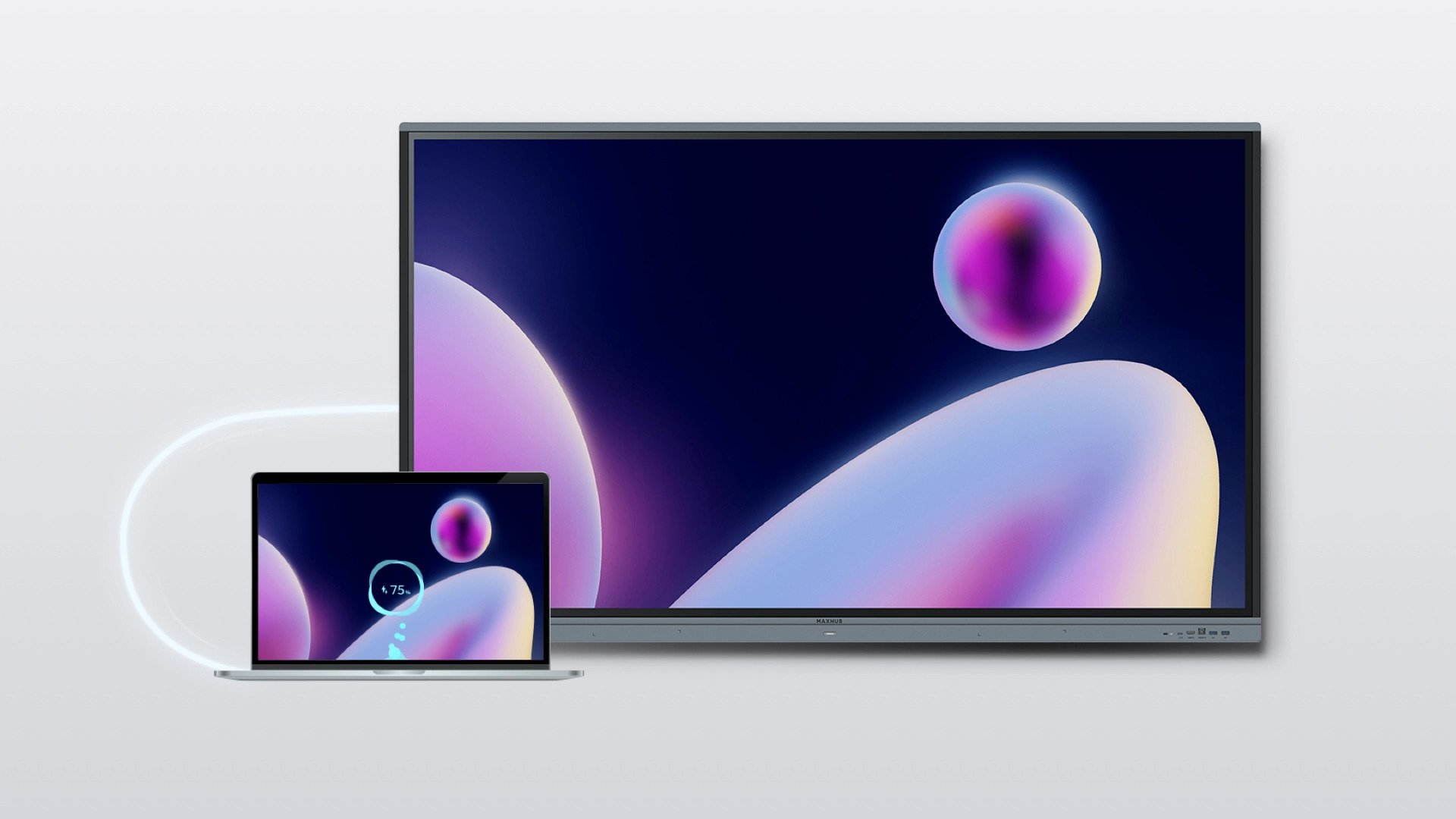

Bringing BYOD convenience and capabilities to the classroom, the E2 Series features an all-in-one Type-C interface for your mobile device.

Front Type-C interface for all-in-one video, audio, touch, network and charging transmission.

· Supports audio and display up to 4K@60fps.

· Supports charging up to 65W.

· Laptop internet access via Type-C interface on web-connected the E2 Series displays.

Specs

  • Diagonal Size (inch): 65

    Glass: Anti-glare, Tempered

    Bonding: Zero parallax

    Viewing Angle: 178°(H/V)

    Aspect Ratio: 16:9

    Blacklight: DLED

    Resolution: 3840 x 2160

    Contrast Ratio: 1200:1

    Color Depth: 1.07B(10bit)

    Color Gamut (typ.): 72% NTSC

    Color Accuracy: Delta E ≤ 2

    Refresh Rate: 60Hz

    Response time: 8ms

    Brightness (typ.): 350cd/m2

  • Interactivity: Infrared (IR)

    Touch Sensor: Finger,Gesture,Stylus

    Touch Tool: Up to 40 touch points (OS dependent)

    Multitouch Capabilities: ≤ 10ms

    Response Time: +1.5mm

    Touch Accuracy: ≥ 3mm

    Object Recognition Range: Passive dual nibs

    Stylus Type: Windows 10 / Windows8 / Windows7/ WindowsXP/Android/Linux/ Mac OS X /

    Supported Operating System (Touch Return): Chrome OS

  • Operating System: Android 11.0

    RAM: 4GB

    ROM: 32GB

    CPU: 2.0GHz quad core ARM A55

    GPU: Mali-G52 MP2

  • Screen Share: Yes

    DMS: Yes

    On Board Apps: Browser, Cloud Drive, System Keeper, Note, Palette, Annotate, Timer, Screen Record, Split Screen, etc.

  • Power Supply: AC 100~240V 50/60Hz

    Power Consumption（standby）: ≤ 0.5W

    Power Consumption（maximum）: 400W（including OPS）

  • Sound Channel: 2.0

    Power Output: 2 × 12w

  • OPS Slot: Yes, 3840 x 2160 @ 60fps

    OPS Compatible: OPS62A

    Wired: 1000baseT RJ45 x 2

    Wi-Fi: 2.4Ghz, 5Ghz band 802.11ac/b/g/n/a/ax

    HDMI: HDMI 2.0 In x 3

    HDMI Out x 1 (Up to 4K @ 60fps)

    Touch: USB Type-B × 2

    Control: RS-232 × 1

    Analog: VGA In × 1

    Audio: Audio In × 1

    Audio Out × 1

    S/PDIF Out × 1

    USB Type-A: USB 3.0 × 4

    USB 2.0 × 1

    Multifunction Port: USB Type-C × 1

  • 3m Power Cord : × 1

    1.4m HDMI Cable: × 1

    5m USB Touch Cable（Type A-B): × 1

    1.8m USB Type-C Cable : × 1

    Remote Control : × 1

    Wall Mount : × 1

    Stylus : × 2

    Wireless Adapter: × 1

  • Dimension（W × H × D）: 1488.1 × 896.3 × 88.3mm

    Shipping Dimension（W × H × D）: 1628 × 1024 × 208mm

    VESA: 600 × 400mm, M8 × 25mm

    Net Weight: 35.50 Kg

    Gross Weight: 45.80 Kg

  • Operating Temperature: 0℃-40℃

    Storage Temperature: -20℃-60℃

    Operating Humidity: 10%-90% RH

    Storage Humidity: 10%-90% RH

  • TüV Rheinland Flicker Free: Yes

    TüV Rheinland Low Blue Light: Yes

    SGS Antibacterial⁴: Stylus, Power Button

    Protection Glass（optional）
