BU70QGA

LG ProBeam BU70QGA 4K Laser Signage Projector with 7,000 ANSI Lumens Brightness

Key Feature

  • 7,000 ANSI Lumens Brightness

  • Laser 4K UHD & 3M:1 CR

  • from 40" to 300" Screen Size

  • Edge Blending technology

  • Auto Screen Adjustment


Picture Quality

7,000 ANSI Lumens

4K UHD (3840 x 2160)

Easy Installation

Edge Blending

Auto Screen Adjustment

Efficient Management

SuperSign

LG Connected Care

All-around Projector for Versatile Fields

Laser 4K UHD & 3M:1 CR

Exceptional Picture Quality

With 8.3 mega pixels utilizing 4K UHD (3840 x 2160) resolution, LG ProBeam delivers precisive details from 40-inch up to the 300-inch screen. With 3M:1 contrast ratio, it can express deep darkness and brightness.

7,000 ANSI Lumens Brightness

Accurate Color Even in Bright Ambient

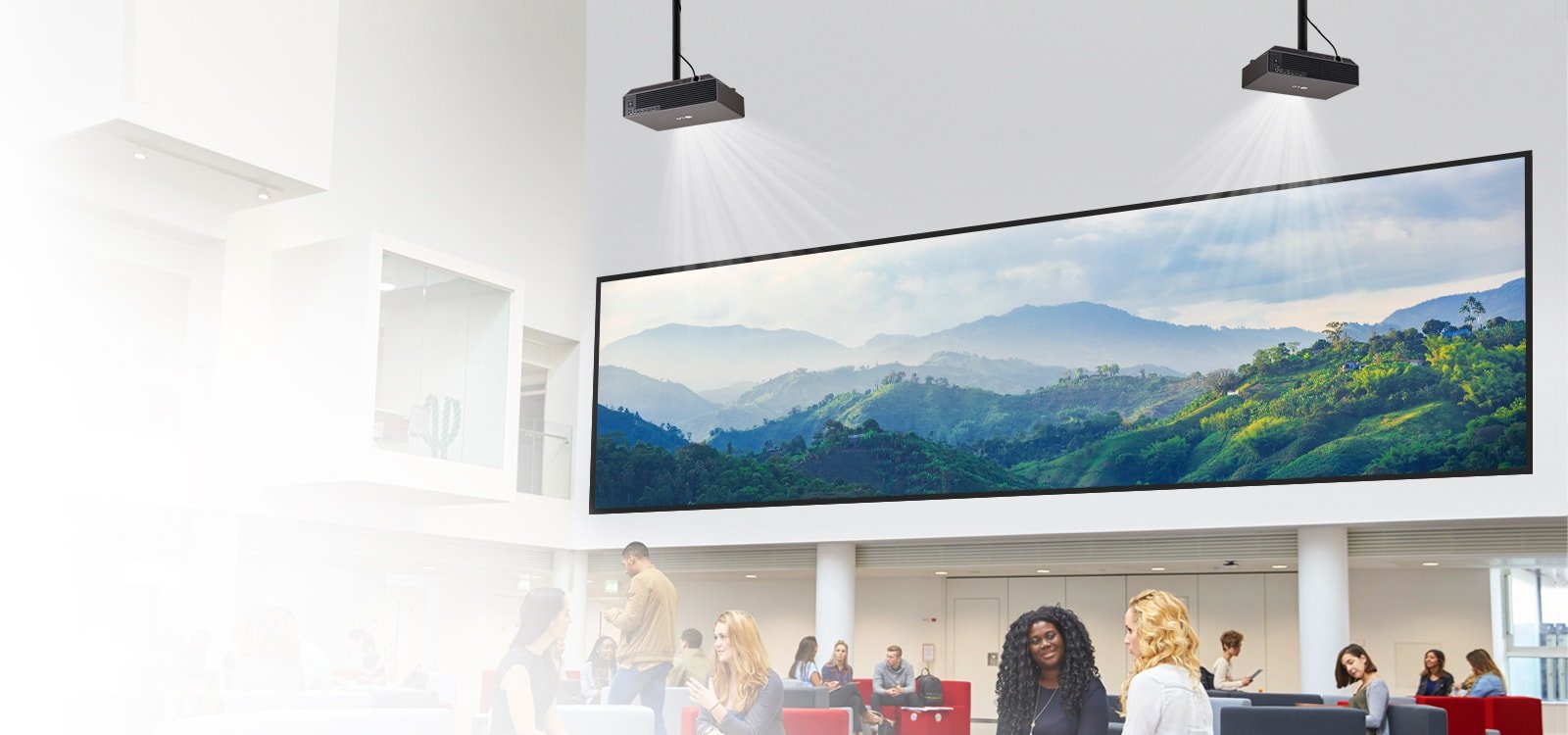

Thanks to the 7,000 ANSI Lumens brightness, LG BU70QGA can produce clear picture quality even in bright indoor environments such as building lobbies.

Edge Blending

Seamless Panoramic View

By supporting Edge Blending technology which controls the luminance of the area where the projected light overlaps, it can provide the seamless connection without resulting in a higher luminance when two or more projectors must be used simultaneously.

Auto Screen Adjustment

Simply Adjust Screen Distortion

With an Auto Screen Adjustment function, it can automatically correct the screen using the appropriate technology according to the installation status.

4/9/15/25 Point Warping

Lens Shift (+60/-33%), H (±28%)

1.6x Zoom

  • PROJECTION SYSTEM

    Native Resolution 4K UHD (3840 x 2160)Brightness (ANSI Lumen) 7000

    Contrast Ratio (Full On Full Off) 3,000,000:1 ↑Noise (typical) - Energy Saving Min. (Bright) 35 dB(A)

    Noise (typical) - Energy Saving Med. 33 dB(A)Noise (typical) - Energy Saving Off (Max) 31 dB(A)

    Uniformorty(JBMMA 9point) 85%Changeable F# X

    Projection Lens - Focus (Auto / Manual) AutoProjection Lens - Zoom 1.6x Auto

    Projection Image - Screen Size 40" ~ 300"Projection Image - Standard (lens to wall) Wide 3395 /Tele 5470 (100inch)

    Projection Image - Throw Ratio 1.53 ~ 2.45Lens Shift ( Horiz ± 28% / Vert +60%,-33% ) (Auto)

    Projection Offset 110%Light source - Type Laser (LD + P/W)

    Light source - Life High Brightness 20,000 Hrs

    GENERAL SPECIFICATION

    Aspect Ratio Control Full / OriginalSound - Output 10W (5W+5W)

    Sound - Clear Voice Yes (Clear Voice lll)Net Size (mm) (W x D x H) 570x360x160

    Net Weight (kg or g) 17.8kgGross size (mm) (W x D x H) 774 x 473x 265

    Gross Weight (kg or g) 20.5KGPower Consumption (Max.) 500W

    Stand-by Power 0.5W↓Power Supply 100V – 240V @ 50~60 Hz

    (PSU Built-in)

    Operation Temperature 0 ~ 40℃Input Signal Compatibility - Digital(HDMI) Up to 4K (4096x2160)

    (60Hz, 50Hz, 24Hz)

    Input Signal Compatibility - HDBaseT Yes

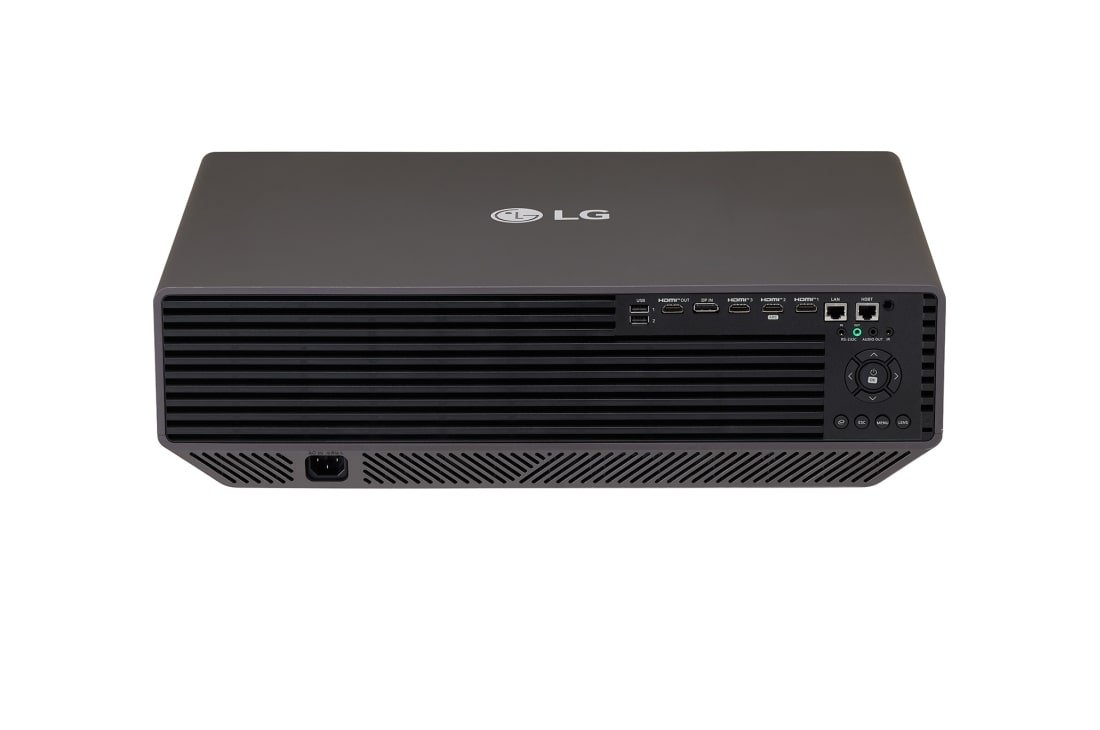

    INPUT/OUTPUT TERMINALS

    Audio out Yes (Phone jack)RS-232C(in) 1

    RS-232C(out) 1IP control Yes

    RJ45 1HDMI(in) 3

    HDM(out) 1HDBaseT 1

    USB Type-A 2 (USB2.0)mic in Yes (Phone jack)

    MAIN FEATURES

    Platform (OS, UI) Signage webOS ECOScreen Share

    (Wireless Mirroring with MiraCast supporting device) Yes

    Contents Sharing (with DLNA supporting device) YesBluetooth Sound out Yes

    LG Sound Sync(with Sound Bar) YesPlug & Play(RGB/DVI/HDMI Auto Source Detection) Yes

    USB Host (Movie, Music, Photo) Yes (Except for Music)Setting Guide Yes (Bean Bird)

    Eco Function - Energy Saving Mode YesEco Function - Sleep Timer Yes (Min/Mid/Max)

    Eco Function - Time Power On/Off (On Time / Off Time) YesEco Function - Automatic Standby / Auto Power Off Yes (On / Off)

    Eco Function - HDD Eco Mode Yes

    ADDED FEATURES

    HDR YesDICOM Yes

    TruMotion YesDigital Keystone Correction Warping (4/9/15/25/HV)(Auto)

    HDCP HDCP2.2Quick(Instant) Power on/off Yes (on 12 Sec off 2 Sec)

    Built-in Memory (for Storage) Yes (about 9G)Background Image Yes

    Blank YesImage Flip Yes (Horizontal/Vertical)

    Edge Blending YesAuto Screen Adjustment Yes (Camera Sensor+ ToF Sensor)

    Tile Mode Yes (9)PIP Yes

    PBP YesCrestron RoomView™ Yes

    24/7 Operation YesDaisy Chain Yes

    One Quick Share Yes360 degree Installation Yes

    Black Level Control YesColor Temperature Adjustment Yes

    Expert controlvADJ YesBrilliant Color™ (Overlap Duty) Yes

    Gamma Correction YesNoise Reduction Yes

    HDMI ARC(Audio Return Channel) YesHDMI simplink(CEC) Yes

    DESIGN

    Cabinet Color Clay charcoalLocal Key Tact (9key)

    Kensington Lock YesLeg-Stand Yes (4 Leg)

    Ceiling mount hole (for bracket) Yes

    ACCESSORY

    Manual (Full or Simple Book) YesQuick User Guide (Quick Set-up Guide) Yes

    Warranty Card YesCable - RS232C cable(D-sub to phone) 1

    Cable - Power cord 1Remote control (Battery included) - Normal Yes

    Conformances(Regulation) FCC/ETL/CE/CB/CCC/PSE/BIS
