BU53PST

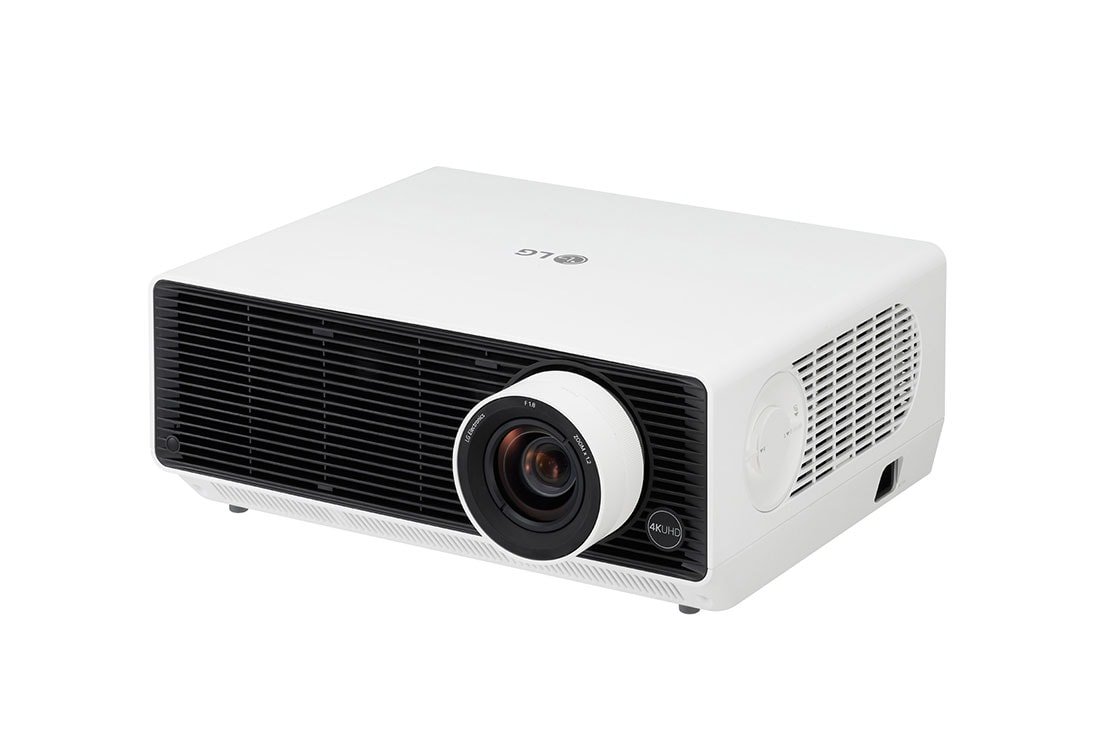

2023 LG ProBeam Short-Throw Laser Projector

Key Feature

  • Laser 4K UHD

  • 8.3 Mega pixels (3840x2160)

  • 5,000 ANSI Lumens

  • Short Throw

  • Zoom x 1.2

  • Lens shift H ±20%, V ±50%


Designed for Business Innovation

Display

4K UHD(3840x2160) Laser

5,000 ANSI Lumens

Usability

Short Throw

Zoom x 1.2

Lens shift H ±20%, V ±50%

An immersive 4K UHD Experience with 0.94 Short Throw Ratio

Even in tight spaces, LG Short Throw Projector provides a high-definition large screen with a short projection distance.

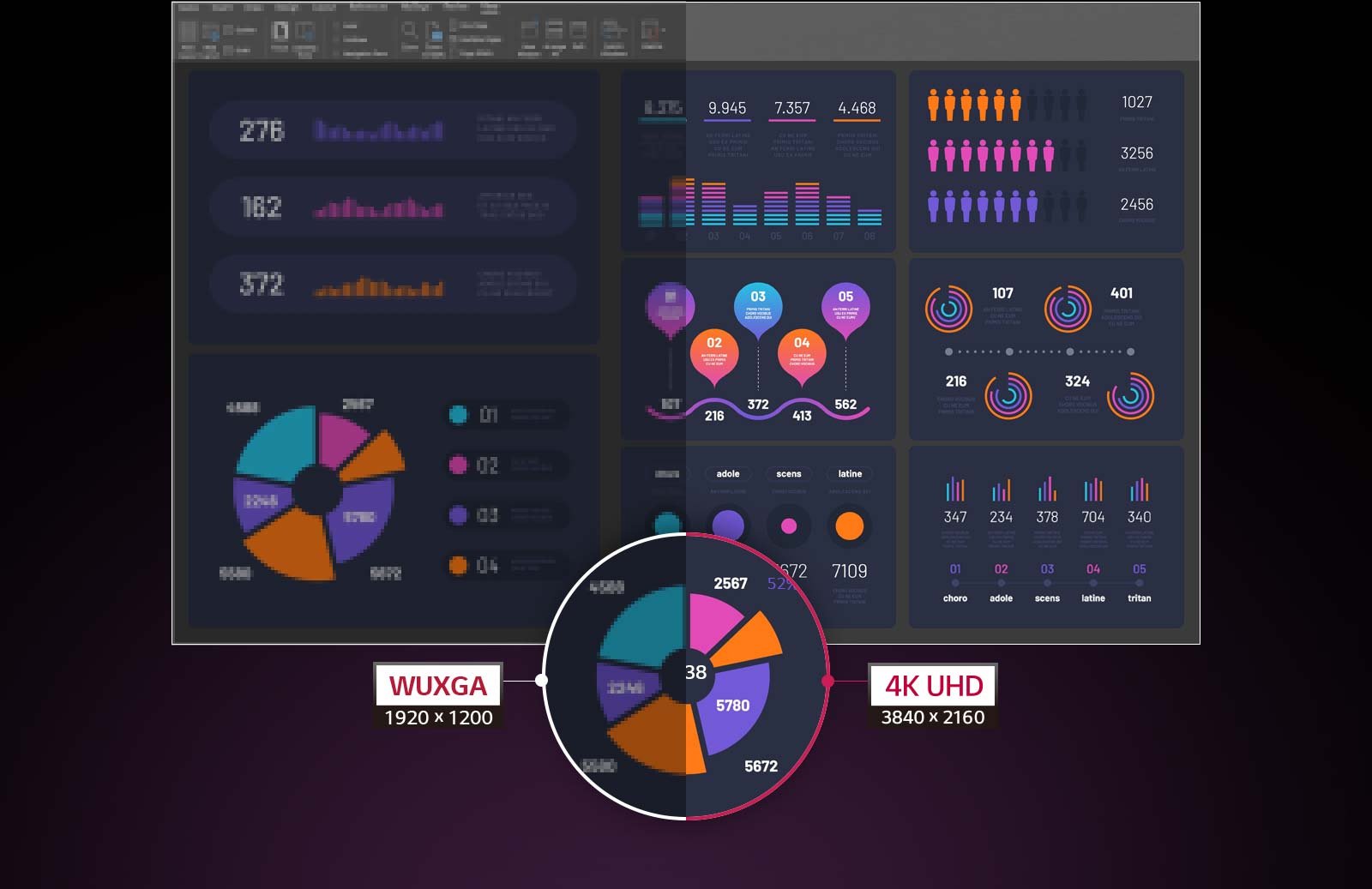

Real 4K Laser

High Definition Clarity to Large Audience

LG ProBeam brings a stunning visual quality even on up to 300-inch big screen with 8.3 million pixels utilizing 4K UHD Laser technology.

5,000 ANSI Lumens

Boost Power of Presentation

5,000 ANSI lumens of brightness delivers accuracy and clarity, even in brightly lit conference rooms without loss of picture quality, magnifying productivity of business meetings.

Scalable & Adaptive Projector

Fits to Any Business

Enterprise : Efficiency & Productivity

The corporate-quality projector is designed for business meeting, conferences, and collaboration. It allows users to boost work efficiency and productivity.

Flexible and Easy Installation

With Zoom x1.2 & Lens Shift (H ±20%, V ±50%) functionality, the user can install the device anywhere and set the screen to the exact size and location.

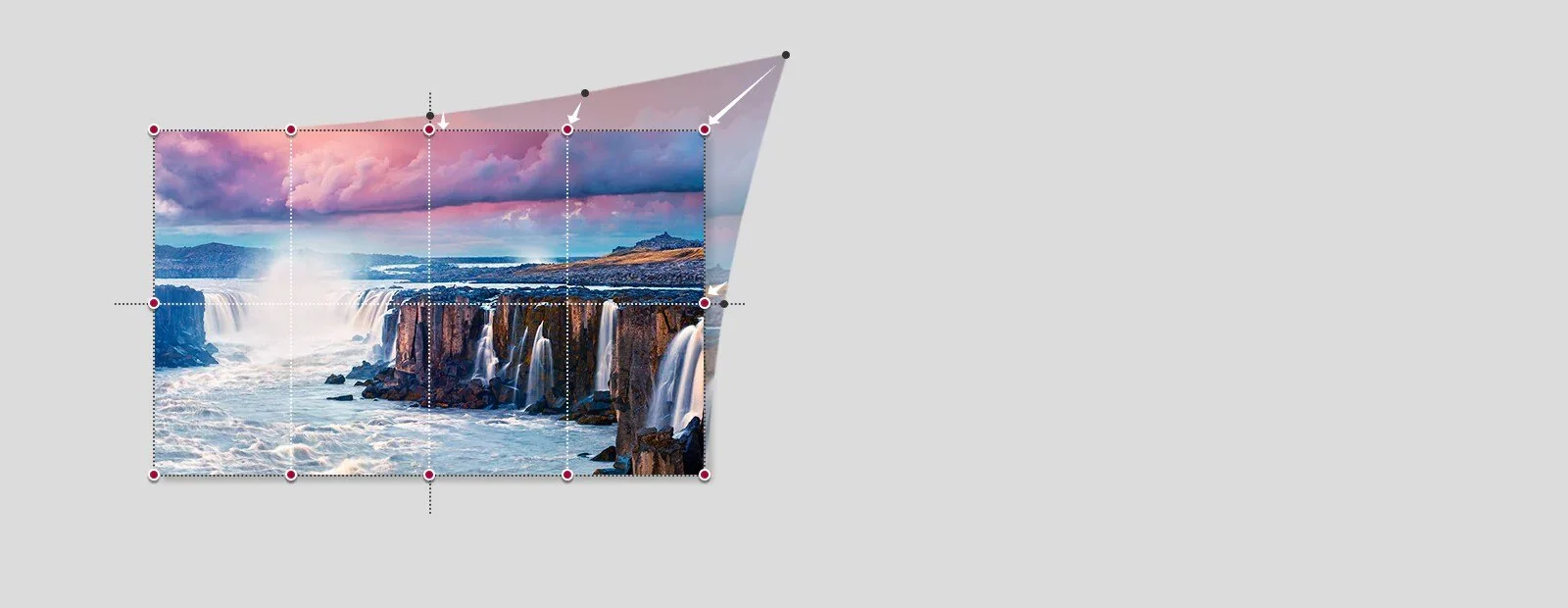

12 Point Warping

More Simply and Detailedly

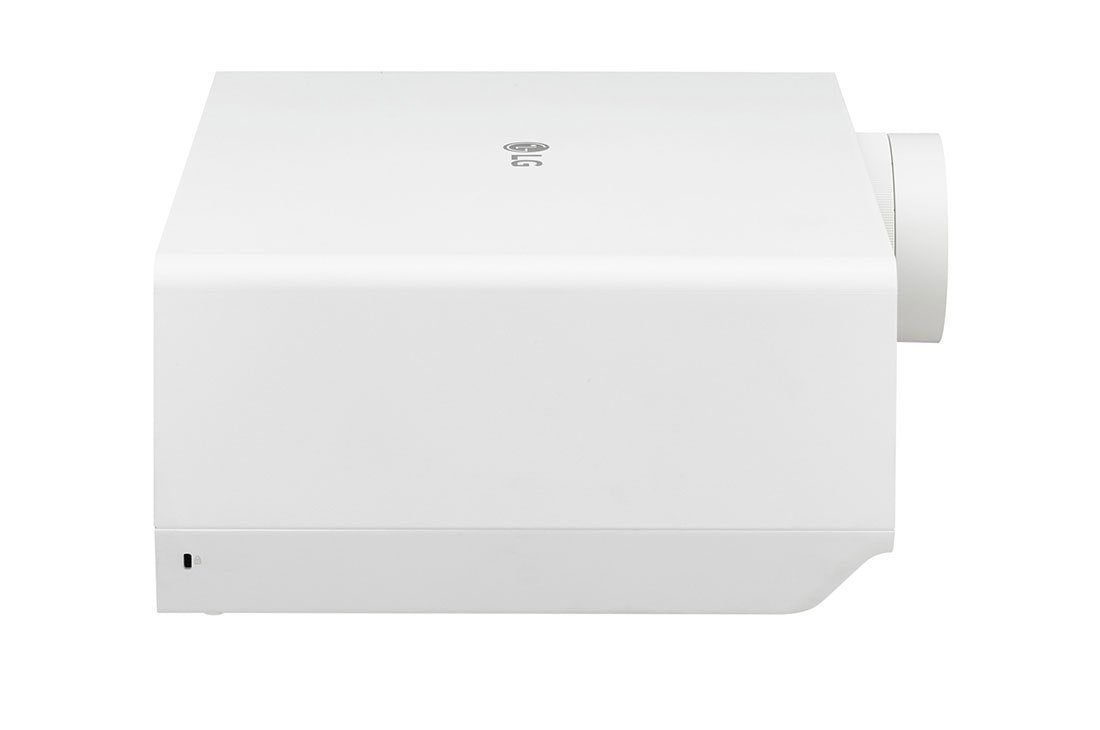

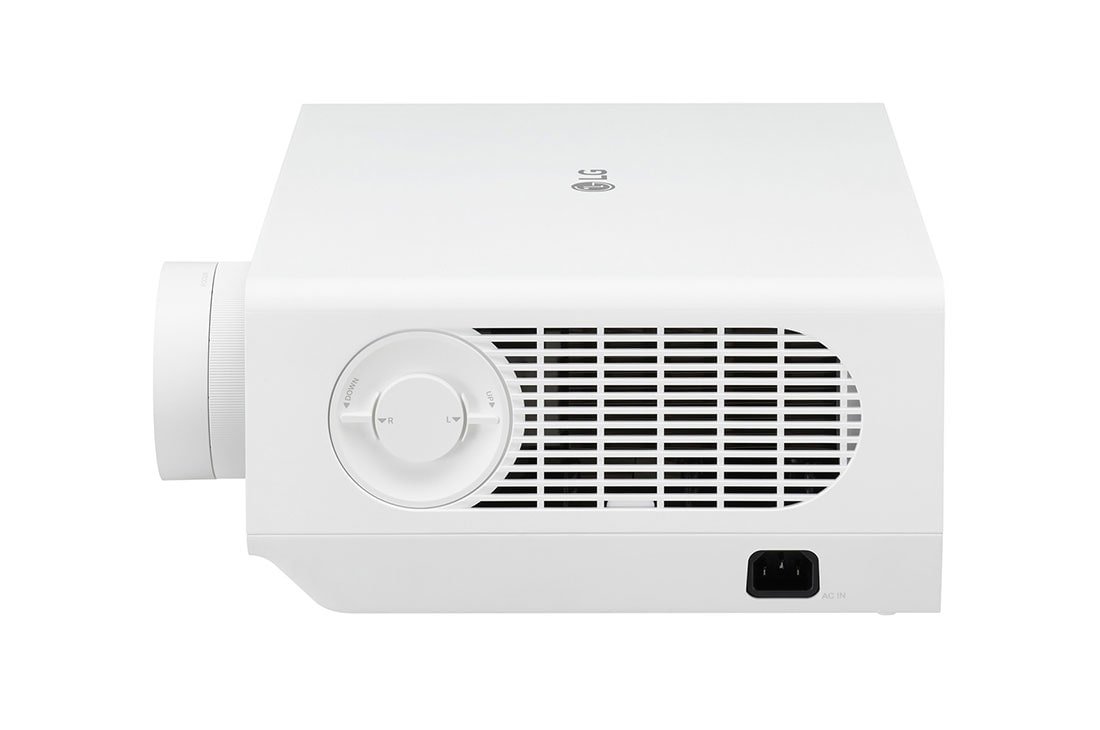

The Smallest 4K 5,000 ANSI Projector

Sufficiently Compact Size

LG BU53PST, has not only 16.7 liter compact body but also 4K high-resolution and 5,000 ANSI lumens brightness, perfectly matches any business space.

  • PROJECTION SYSTEM

    Native Resolution 4K UHD (3840 x 2160)3)Brightness (ANSI Lumen) 1) 5000

    Contrast Ratio (Full On Full Off) 3,000,000:1 ↑Noise (typical) - Energy Saving Min. (Bright) 29 dB(A)

    Noise (typical) - Energy Saving Med. 27 dB(A)Noise (typical) - 3 26 dB(A)

    Noise (typical) - Energy Saving Off (Max) 29 dB(A)Uniformorty(JBMMA 9point) 85%

    Projection Lens - Focus(Auto/Manual) ManualProjection Lens - Zoom 1.2x

    Projection Image - Screen Size 40" ~ 300"Projection Image - Standard (lens to wall) Wide 2017 /Tele 2454 (100")

    Projection Image - Throw Ratio 0.94 - 1.14Lens Shift Yes( Horiz ± 20% / Vert ± 50% )

    Projection Offset 100%Light source - Type Laser (LD + P/W)

    Light source - Life High Brightness 20,000 Hrs

    GENERAL SPECIFICATION

    OSD Language English / Regional languagesAspect Ratio Control 16:9/Original/4:3/Vertical Zoom/All-Direction Zoom

    Sound - Output 10W (5W+5W)Sound - Dolby Surround Audio Yes

    Sound - DTS-HD YesSound - Clear Voice Yes (Clear Voice lll)

    Net Size (mm) (W x D x H) 370x290x155.7

    370x290x143.7 (Without Leg)Net Weight (kg or g) 9,7Kg

    Gross size (mm) (W x D x H) 580 x 441 x 273Gross Weight (kg or g) 11.5Kg

    Power Consumption (Max.) 380WStand-by Power 0.5W↓

    Power Supply 100V – 240V @ 50~60 Hz

    (PSU Built-in)Operation Temperature 0 ~ 40℃

    Input Signal Compatibility - Digital(HDMI) Up to 4K (4096x2160)

    (60Hz, 50Hz, 24Hz)

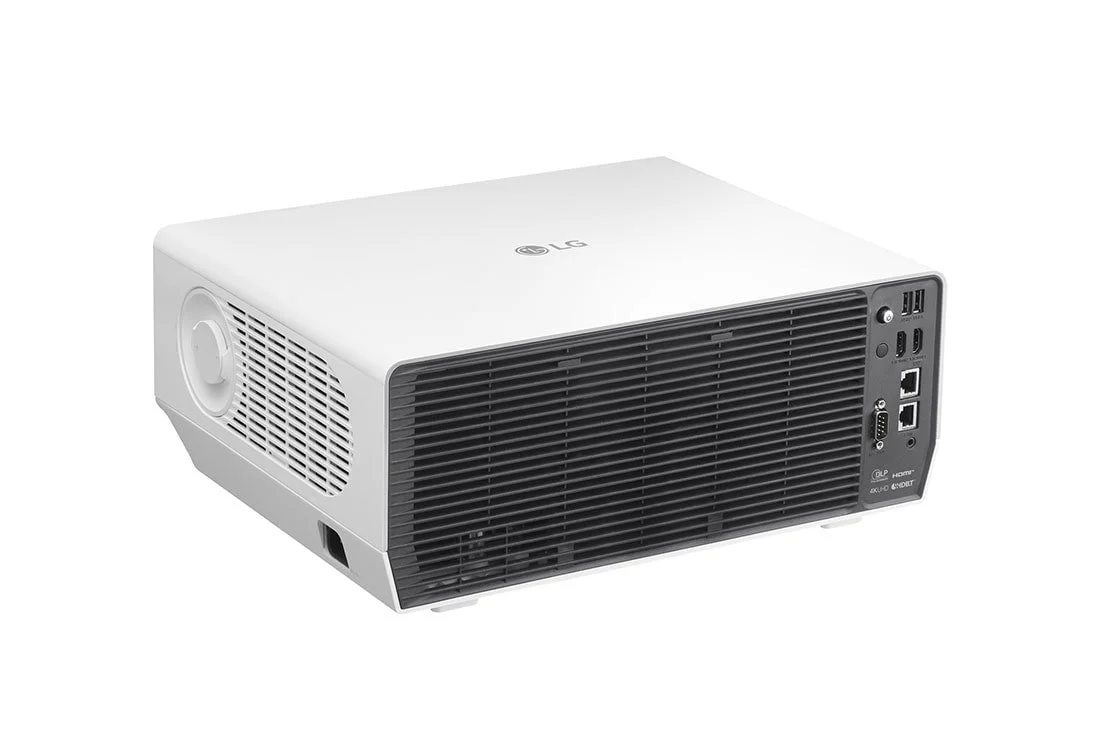

    INPUT/OUTPUT TERMINALS

    IP control Yes (Control 4, Crestron, and Savant)RJ45 1

    HDMI 2HDBaseT Yes

    USB Type-A 2 (USB2.0)

    MAIN FEATURES

    Platform (OS, UI) webOS 4.5Home Launcher - Edit mode/Recent Yes

    Contents Suggestion HomeInternet Browser Yes

    Home Dashboard (Input, IoT with OFC device) YesScreen Share (Wireless Mirroring with MiraCast supporting device) Yes

    Contents Sharing (with DLNA supporting device) YesBluetooth Sound out Yes

    Bluetooth AV Sync Control YesLG Sound Sync(with Sound Bar) Yes

    Plug & Play(RGB/DVI/HDMI Auto Source Detection) YesUSB Host (Movie, Music, Photo) Yes

    File(Office) Viewer YesSetting Guide Yes (Bean Bird)

    HID (Keyboard/Mouse/GamePad Connection Thru USB) YesEco Function - Energy Saving Mode Yes (Min/Mid/Max)

    Eco Function - Sleep Timer YesEco Function - Auto Off / Auto Sleep Yes

    Eco Function - Time Power On/Off (On Time / Off Time) Yes (On/Off)Eco Function - Automatic Standby/Auto Power Off Yes

    Eco Function - HDD Eco Mode Yes

    ADDED FEATURES

    HDR HDR10HDR Effect Yes

    TruMotion YesDigital Keystone Correction Warping

    HDCP HDCP2.2Quick (Instant) Power on/off Yes (on 12 Sec off 2 Sec)

    Store Mode YesBackground Image Yes

    Blank YesImage Flip Yes (Horizontal/Vertical)

    Black Level Control YesColor Temperature Adjustment Yes

    Expert controlvADJ YesBrilliant Color™ (Overlap Duty) Yes

    Gamma Correction YesNoise Reduction Yes

    HDMI ARC (Audio Return Channel) YesHDMI simplink (CEC) Yes

    Self Diagnosis Yes

    DESIGN

    Cabinet Color Top/Bottom - White

    Front/Rear - BlackLocal Key Joystick

    Kensington Lock YesLeg-Stand Yes (4 Leg)

    Ceiling mount hole (for bracket) Yes

    ACCESSORY

    Manual (Full or Simple Book) Simple BookQuick User Guide (Quick Set-up Guide) Yes

    Warranty Card YesCable - Power cord 1

    Remote control (Battery included) - Normal YesConformances (Regulation) KCC, KC
