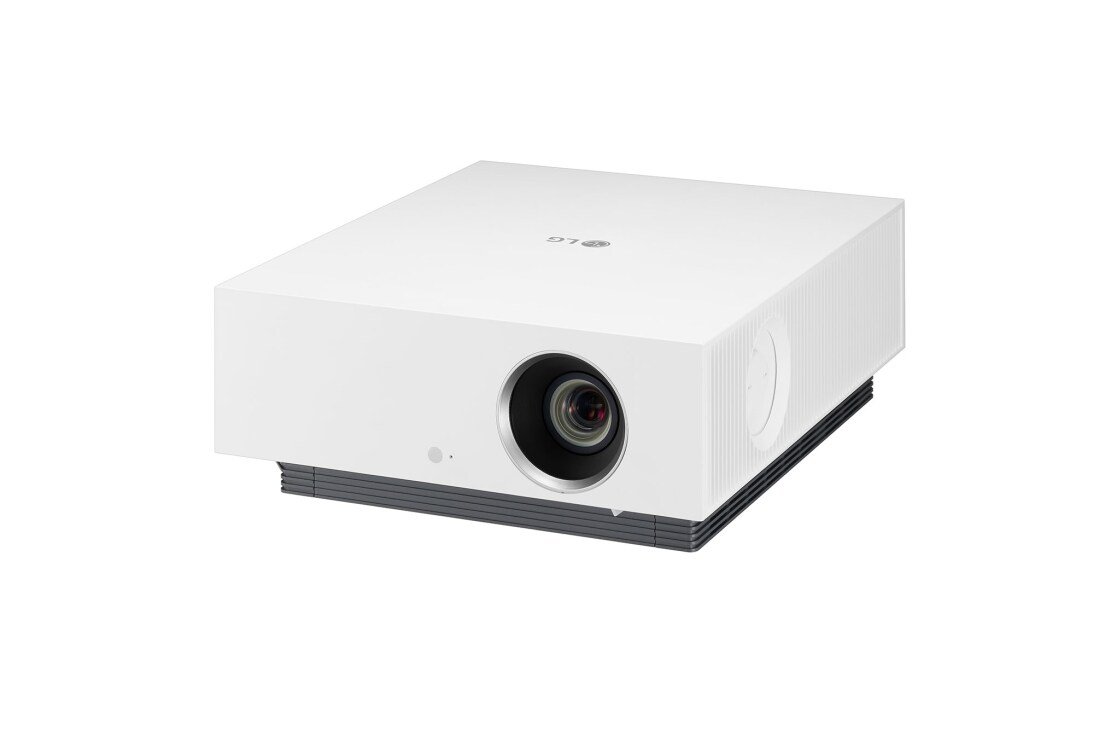

AU810PW

PROJECTION SYSTEM

Native Resolution 4K UHD (3840 x 2160)'Brightness (ANSI Lumen) 2) 2700

Contrast Ratio (Full On Full Off) 2,000,000:1Noise (typical) - Energy Saving Min. (Bright) 28 dB(A)↓

Noise (typical) - Energy Saving Med. 27 dB(A)↓Noise (typical) - Energy Saving Max. (Eco) 26 dB(A)↓

Uniformorty(JBMMA 9point) 85%↑Projection Lens - Focus (Auto / Manual) Manual

Projection Lens - Zoom 1.6 xProjection Image - Screen Size 40" ~ 300"

Projection Image - Standard / 100" (lens to wall) 150"@4.3~6.9m

100"@2.9~4.6m

40"@1.1~1.8mProjection Image (Throw Ratio) 1.3 - 2.08

Lens Shift V +-60% / H +-24%Projection Offset 0% (+110% ~ -110%)

Light source -Type Dual Laser (B LD+G-rap Phophor, R LD)Light source -Life High Brightness 20,000 Hrs

Light source - Life Economic 30,000 Hrs

GENERAL SPECIFICATION

OSD Language English(UK) / French/ Spanish/ German / Portuguese / Dutch / Russian / Polish/ Hungarian / Romanian / Slovenian / Croatian / Bulgarian/ Serbian /Italian /Czech /Turkish/Slovak

Arabic/ChineseSimplified/Indonesian/ L-Spanish / India / EnglishAspect Ratio Control 16:9/Original/Full Wide/4:3/Vertical Zoom

Sound - Output 5W + 5W StereoSound - Clear Voice Yes (Clear Voice lll)

Sound - Dolby Atmos compatible Yes (Pass through)Sound - WiSA Ready (dongle) Yes(EU : up to 5.1Ch MEA : 2.0Ch only)

(Dongle and Speakers sold separately)

Net Size (mm) (W x D x H) 337 x 410 x 145Net Weight (kg or g) 11kg

Power Consumption (Max.) 300WStand-by Power <0.5W

Power Supply 100V – 240V @ 50~60 Hz

(PSU Built-in)Operation Temperature 0 ~ 40℃

Input Signal Compatibility - Digital(HDMI) Up to 4K (4096x2160)

(60Hz, 50Hz, 24Hz)Segment 4K Standard- Throw

INPUT/OUTPUT TERMINALS

Audio Out S/PDIF 1(Optical)RS-232C Yes

IP control Yes

(Control 4, Crestron, Savant, URC, ELAN)RJ45 1

HDMI 3 (HDMI2.1* : 1EA / HDMI2.0 : 2EA)

*ALLM (Auto Low Latency Mode),

eARC (Enhanced Audio Return Channel),

up to 24Gbps (input) / 4:4:4/RGB 10 bit (output)USB Type-A 2 (USB2.0)

12V Trigger Yes

OS/CONNECTIVITY

Platform (OS, UI) webOS 5.0 (Smart)Home Dashboard (Input, IoT with OCF device) Yes (OCF/UEI IoT not supported)

Background Image YesPremium CP Yes

Contents Store (LG App Store) YesContents Suggestion Yes

Internet Browser YesVoice Recognition - Speaker Compatible (works-with) Apple Homekit works-with

Screen Share (Wireless Mirroring with MiraCast supporting Android/Window device) Yes (up to 4K/30Hz)Airplay 2

(iOS/Mac Video Casting, mirroring, Audio Streaming) Yes (up to 4K/30Hz)

Contents Sharing (with DLNA supporting device) YesBluetooth - Bluetooth Sound out Yes

Bluetooth - Bluetooth AV(Lip) Sync Control YesLG Sound Sync(with Sound Bar) Yes

HDMI ARC(Audio Return Channel) Yes (eARC)HDMI simplink(CEC) Yes

HDCP HDCP2.2 (HDCP2.3)Plug & Play(RGB/DVI/HDMI Auto Source Detection) Yes

USB Host (Movie, Music, Photo) YesSetting Guide Yes (Bean Bird)

HID (Keyboard/Mouse/GamePad Connection Thru USB) YesEco Function - Energy Saving Mode Yes (Min/Med/Max)

Eco Function - Sleep Timer YesEco Function - Auto Off / Auto Sleep Yes

Eco Function - Time Power On/Off

(On Time / Off Time) Yes (On/Off)Eco Function - Automatic Standby / Auto Power Off Yes

Eco Function - HDD Eco Mode Yes

PICTURE QUALITY AND SETTING

Processor Quad CoreHDR HDR10, HLG

HDR Effect YesHDR Tone Mapping Yes (Auto, Dynamic/frame by frame)

Brightness Optimizer - Iris Mode Yes (BrightRoom/Medium/Darkroom/UserBrightness Optimizer - Adaptive Contrast Yes (High/Medium/Low/Off)

TruMotion Yes (up to 4096x2160)Real Cinema Yes (up to 4096x2160)

Upscaler Yes (4K)Super Resolution (Expert Control) Yes (4K)

FILMMAKER mode YesHGiG (HDR Gamming Interest Group) mode Yes

Digital Keystone Correction V-KeystoneImage Flip Yes (Horizontal/Vertical)

Callibration II (Auto Calibration / CalMan) YesSmooth Gradation Yes

Black Level Control YesNoise Reduction Yes

Color Temperature Adjustment YesDynamic Contrast (Expert control) Yes

Dynamic Color (Expert control) YesColor Management System (Expert control) Yes

Color gamut setting (Expert control) YesGamma Correction (Expert control) Yes

White balance setting (Expert control) Yes

ADDED FEATURES

Quick(Instant) Power on/off Yes (on 12 Sec ↓ / off 2 Sec)Store Mode Yes

Self Diagnosis Yes

DESIGN

Cabinet Color WhiteLocal Key Joystick

Kensington Lock YesLeg-Stand Yes

Ceiling mount hole (for bracket) Yes

ACCESSORY

Manual (Full or Simple Book) Simple BookWarranty Card Yes

Cable - Power cord 1Remote control (Battery included) - Motion Yes (Magic Lighting Remote)

Conformances(Regulation) CE/CB
