55VM5J-H
55" 500 nits FHD Slim Bezel Video Wall
Key Feature
Brightness(Typ.) : 500 nit
Bezel : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm (T/L), 0.44mm (B/R)
Depth : 86.9 mm
Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
Artistic Immersion,
Overwhelming Captivation
* All images in this web page are for illustrative purposes only.

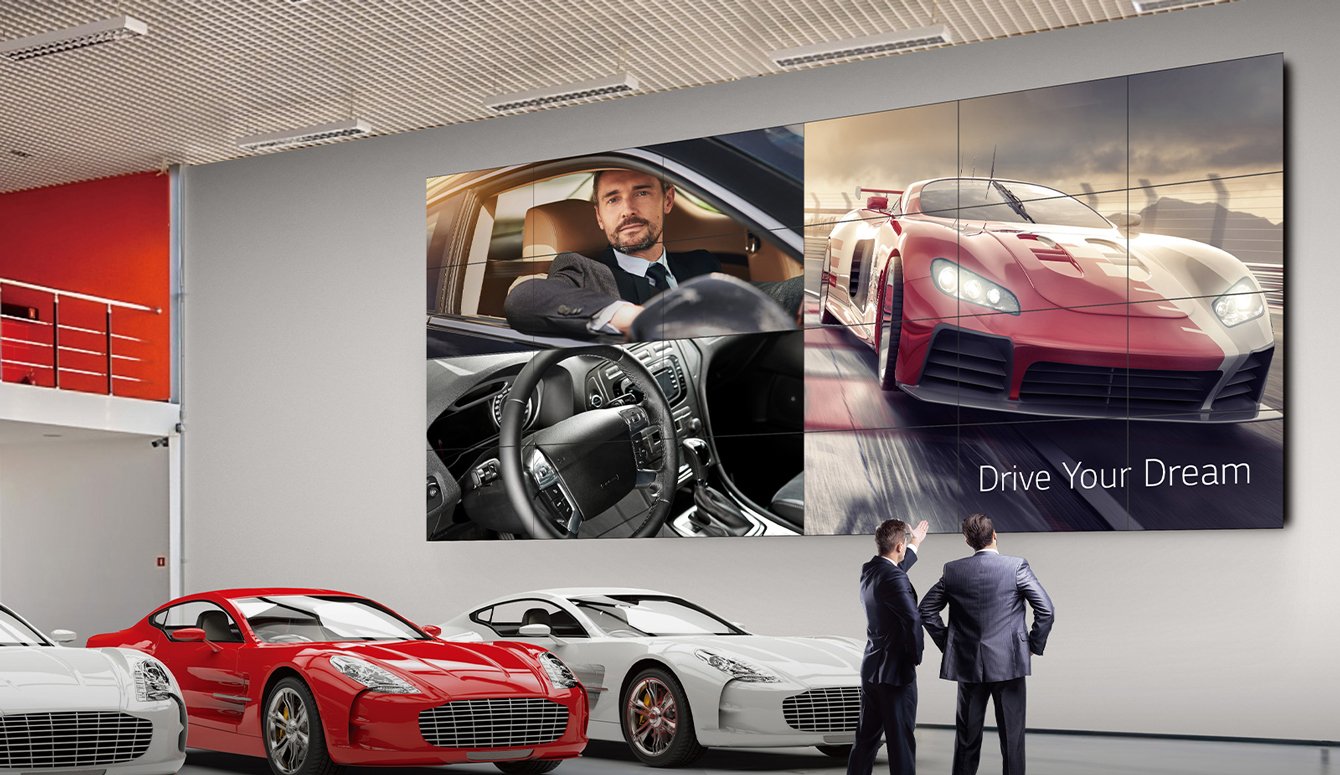

Seamless Large Screens with Extreme-Narrow Bezel
The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.
* The 1.74mm BtoB (Panel Bezel to Panel Bezel) have been verified by Nemko, a global institution that tests and certifies electrical equipment.
Higher Viewing Angle
Large screens are usually positioned higher than human-eye level. Wide half luminance angle (40˚) enables effective picture quality for video walls. The viewing angle of the VM5J-H is high enough to display vivid colors throughout the screen without any color distortion.
* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.
Wider Viewing Angle
LG IPS panel technology enables stable and smooth control of liquid crystals, and allows the screen to be viewed from virtually any angle. Therefore, the VM5J-H captivates the attention of more viewers with lifelike colors, regardless of their viewing position.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is protected from dust, eliminating the risk of performance degradation
Tech Spec
-
Screen Size 55"
Panel Technology IPS
Aspect Ratio 16 : 9
Native Resolution 1,920 x 1,080 (FHD)
Refresh Rate 60Hz
Brightness 500
Contrast Ratio 1,000:1
Dynamic CR 500,000 : 1
Color gamut NTSC 72%
Viewing Angle (H x V) 178x178
Color Depth 10bit, 1.07Billion colors
Response Time 8 ms (G to G)
Surface Treatment (Haze) 28%
Life Time (Typ.) 60,000Hrs
Life Time (Min.) 50,000Hrs
Operation Hours (Hours / Days) 24/7
Portrait / Landscape Yes / Yes
-
Bezel Color Black
Bezel Width B2B : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(T/L), 0.44mm(B/R)
A2A : 2.49mm (Active area to Active area), 1.75mm(T/L), 0.74mm(B/R)
Weight (Head) 18.8 Kg
Monitor Dimensions (W × H × D) 1,212.2 × 683.0 × 86.9 mm
Handle Yes
VESA™ Standard Mount Interface 600 x 400
-
HW Internal Memory 8 GB, Sensor (Temperature Sensor, BLU Sensor, Acceleration(Gyro) Sensor), Local Key Operation
SW webOS 4.1, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected®2)), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), HDMI-CEC3), SI Server Setting, webRTC, Pro:Idiom, W/B Setting by Grey Scale, Scan Inversion
-
Operation Temperature 0 °C to 40 °C
Operation Humidity 10 % to 80 %
-
Power Supply AC 100-240V~, 50/60Hz
Power Type Built-In Power
-
Typ. 160 W
Max. 190 W
Smart Energy Saving 90 W
DPM 0.5 W
Power off 0.5 W
BTU (British Thermal Unit) 546 BTU/Hr(Typ.), 648 BTU/Hr(Max)
-
Safety CB / NRTL
EMC FCC Class "B" / CE / KC
ErP Yes (EU Only)
-
SuperSign CMS Yes
SuperSign Control / Control+ Yes
SuperSign WB Yes
SuperSign Media Editor Yes
LG ConnectedCare Yes
-
Input HDMI 2 (HDCP 2.2), DP (HDCP 2.2), DVI-D (HDCP 1.4), Audio In, RS-232C In, RJ45 (LAN), IR In, USB 2.0 Type A
Output DP Out (Input : HDMI / DVI / DP), Audio Out, RS-232C Out, RJ45 (LAN)
-
Basic
Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan calbe, DP cable, IR Receiver, Guide Bracket, Screws, Manual
Optional
OPS Kit (KT-OPSF)
-
OPS type compatible Yes (Piggyback)
-
IP Rating IP5X tested
