55EW5G-V

Transparent OLED Signage

Key Feature

  • Brightness(Typ.): 400nit (APL 25%, Without Glass)

  • Transparency(Typ.) : 38%

  • Bezel: 7.9 mm (T/R/L), 121.7mm (B)

  • Interface : HDMI/DP/USB(2)/ RS232C/ RJ45/ Audio/ IR


See the unseen,

LG Transparent OLED

LG Transparent OLED Signage offers new ways to communicate visually and opens up a whole new level of creativity that even conventional digital signage cannot offer.

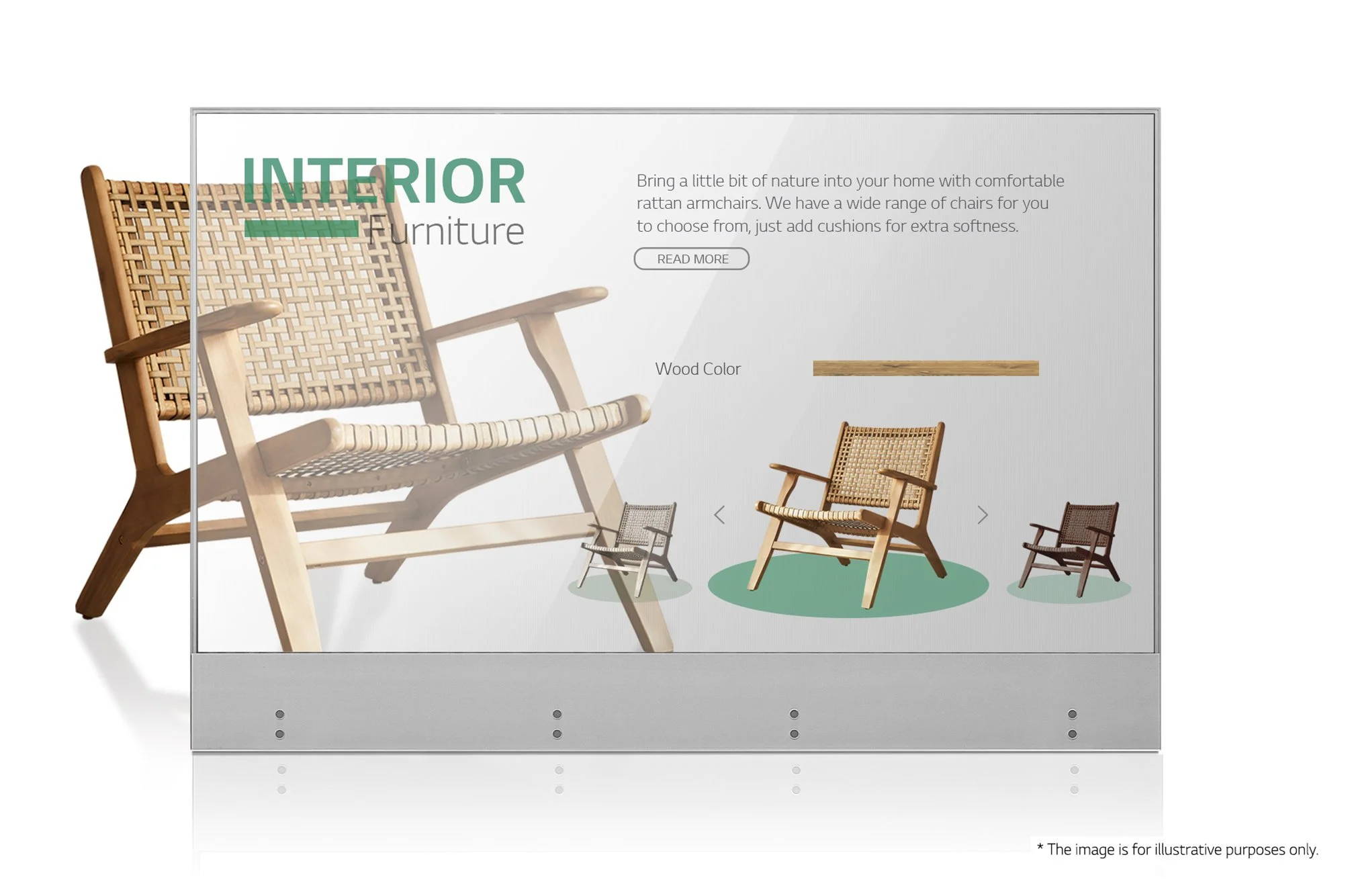

* All images are for illustrative purposes only.

High Transparency

LG’s OLED technology makes the Transparent OLED Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 38%* much higher than conventional LCD transparent displays (10%**). While clearly showing objects behind the screen, it overlays the relevant information right before them.

* The Year of Measurement : 2018

Measurement Method : Checking Transparency Using a Hazemeter

Conducted by : LGD - internal testing

** Based on LG’s WFB series.

Accurate

and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

* Optically Clear Adhesive

Expandable Design

(2×N Tiling)

LG Transparent OLED Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.

* Installation accessories are not supplied by LG.

Splendid Design

LG’s OLED technology unlocks the new worlds of design flexibility with unbelievably lightweight and slim display. The advantages the OLED display brings are countless from the easier installation to a sleek look.

Tech Spec

  • Screen Size 55"

    Panel Technology OLED

    Aspect Ratio 16 : 9

    Native Resolution 1,920 x 1,080 (FHD)

    Refresh Rate 120 Hz

    Brightness 150/400nit (APL 100%/25%, Without Glass)

    Contrast Ratio 150,000 : 1

    Viewing Angle (H x V) 178 × 178

    Response Time 1ms (G to G), 8ms (MPRT)

    Life Time (Typ.) 30,000 Hrs

    Operation Hours (Hours / Days) 18 / 7 (Moving Content Only)

    Portrait / Landscape Yes / Yes

    Transparency (Typ.) 38% (SET)

  • Bezel Color Transparent

    Bezel Width 7.9 / 7.9 / 7.9 / 121.7mm (T / R / L / B)

    Weight (Head) 11.6Kg (Head)

    3.4Kg (Signage Box)

    Packed Weight 23.1Kg

    Monitor Dimensions (W × H × D) 1,225.5 x 810.1 x 7.0mm (Head)

    782.8 x 238.4 x 34.7mm (Signage Box)

    Carton Dimensions (W × H × D) 1,345 x 920 x 207mm (Box outer size)

    Protection Glass (Depth) 3.0 mm

    Protection Glass (Tempered / Chemical Strengthening) Chemical Strengthening

    Protection Glass (Anti-Reflective) Film

    Protection Glass (Shatter-Proof) Yes

  • Operation Temperature 0 °C to 40 °C

    Operation Humidity 10 % to 80 %

  • Power Supply AC 100-240V~, 50/60Hz

    Power Type Built-In Power

  • Typ./Max. 171W (IEC 62087) / 280 W

    BTU (British Thermal Unit) 853.03 BTU/Hr(Typ.), 955.39 BTU/Hr(Max.)

  • Safety IEC 60950-1 / EN 60950-1 / UL 60950-1

    EMC FCC Class "A" / CE / KC

    ErP Yes

  • SuperSign CMS Yes

    SuperSign Control / Control+ Yes

    SuperSign WB Yes

    SuperSign Media Editor Yes

    LG ConnectedCare Yes

  • Input HDMI (HDCP 1.4), DP (HDCP 1.3), RS-232C In, RJ45 (LAN), IR In (External IR Receiver), USB 2.0 Type A (2)

    Output DP Out, Audio Out, RS-232C Out (w / IR Out), RJ45 (LAN)

  • OSD English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Arabic

  • Basic

    Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS-232C Gender, FFC Cables (1,600 mm × 4 ea for Connection between Panel and Signage Box), DP Cable (2 M), LAN Cable (1.5 M), RS-232 Cable (4P-4P, 1.5 M), LC Cable (VLC, 3 M), Wall Fixer (4 ea), Wall Fixer Install Guide, Install Guide Sheet (2 ea), Tape (10 ea for Cabling / 2 ea for Dust Proof), Screw (M4 × L25, 10 ea / M3 × L5.5, 8 ea)
