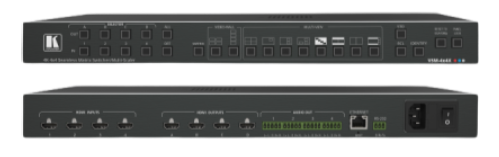

KRAMER VSM-4X4X

VSM-4x4X

4x4 Matrix Switcher, Videowall & Multiviewer

  • Modes — Seamless 4X4 matrix, video wall, multi–viewer (PIP(s), P&P(s), quad, etc)

  • Bezel Correction — In video wall mode

  • Max Resolutions — 4k60 4:4:4

  • Built–in ProcAmp

  • Control — RS–232, Ethernet

  • HDMI | Ethernet - RJ-45

VSM-4X4X

Overview

Kramer's VSM 4x4X is a 4X4 seamless matrix switcher that can also be used as a video wall driver (2X2 or 1X4), a quad−viewer, or a 4 picture multi−viewer.

The unit allows instantaneous switching between inputs (that is, with a clean, frame−to−frame video cut). The VSM 4x4X supports HDMI 2.0 and HDCP 2.2, with resolutions up to 4K60 4:4:4, per−port HDCP and EDID settings, passing of 4 channels of embedded audio, and analog stereo de−embedded audio for each of the 4 outputs.

  • PixPerfect™ Scaling Technology — Kramer’s precision pixel mapping and high quality scaling technology.

  • Matrix Switching Modes — Truly seamless switching mode (zero–time video cuts), or fade–through–black mode (enabling independent output resolutions).

  • Multiple Aspect Ratio Selections — Full, 4:3, 16:9 and best fit.

  • 4 Preset Memory Locations — For each operation mode for quick access to common IN OUT configurations.

  • Non–Volatile Memory — Saves final settings.

  • Built–in Noise Reduction and Picture Enhancement Features

  • HDMI Support — 4K@60Hz, Deep Color, x.v.Color™, 7.1 PCM, Dolby TrueHD, DTS–HD, as specified in VHDMI 2.0.

  • Selectable Operation Modes — 4x4 matrix switcher, video wall (2x2 or 1x4 configuration), multi–view display Split, Side–by–Side, PIP, POP, Stacked or Quad display.

  • Bezel Correction Options — In video wall mode.

  • Constant Output Sync — For all modes of operation.

  • Built–in Video ProcAmp — Color, hue, sharpness, noise, contrast and brightness set individually for each input.

  • Firmware Upgrade — Ethernet based, via a user–friendly software upgrade tool.

  • Advanced EDID management per Input

  • Video inputs and Outputs — 4 HDMI Inputs and 4 Scaled HDMI Outputs.

  • Audio Outputs — 4 balanced audio outputs with independent volume settings per output, embedded audio on the HDMI inputs and outputs.

  • o- Presentation and multimedia

    o- Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios, rental and staging.

    o- Video wall: large signage applications in public places.

    o- Any application where high quality conversion and switching of multiple and different video signals to graphical data signals is required for display or projection purposes.
