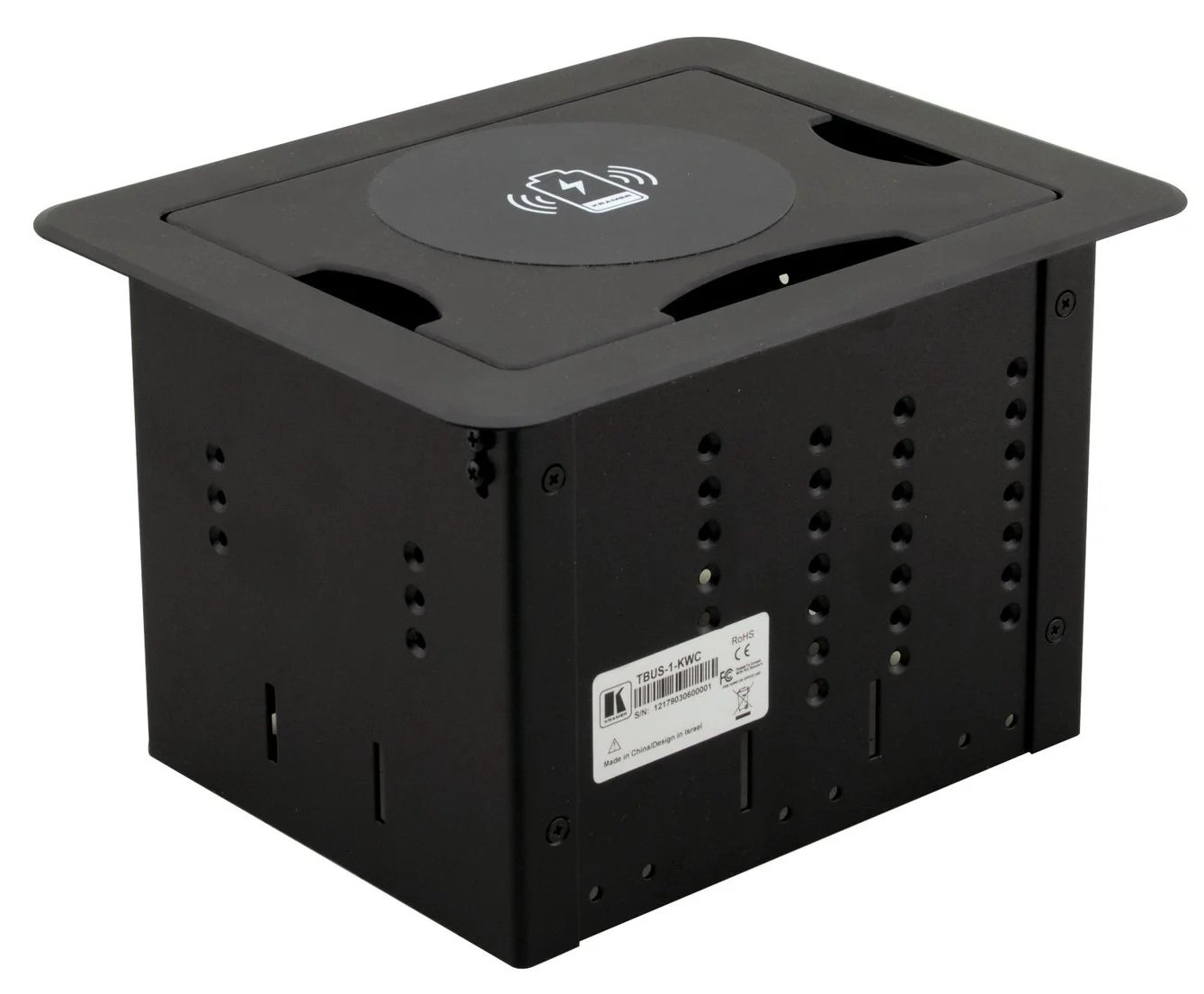

KRAMER TBUS-1-KWC

TBUS with Wireless Charging Spot

Wireless charging spot in TBUS–1A

KRAMER TBUS-1-KWC

TBUS−1−KWC is a modular enclosure using the same inner frames as the TBUS−1Axl and TBUS−1N with an integrated, surface mount, wireless charging spot flush−mounted on the TBUS bezel.

  • Integrated Wireless Charging Spot — For mobile phones integrated in the TBUS.

  • Flush Surface

  • Power Supply — Requires a supply voltage of 12V DC at 2.0A.

  • Current Input — 1A, IEEE 802.15.4 based RF channels.

  • Power Output — 6 to 15W.

  • Regulatory Compliance — PMA type 3 compliant

  • EMC Emission — EN5502/CISPR22

  • Safety — EN60950–1, EN60950–1, UL60950–1, IEC 60950–1, RoHS, REACH

  • Qi Standard Compliant

  • Cutout Dimensions — 152+2mm x 191+2mm (6+0.08in x 7.5+0.08in).
