Kramer Galil 4-C

Galil 4-C

  • 4–Inch, 2–Way Closed–Back Ceiling Speakers

  • UL Listed

  • Woofer — 4"

  • Tweeter — 1"

  • Impedance — 8Ω

  • 70V/100V Tap selection

  • 2 Speakers (1 Pair)

Overview

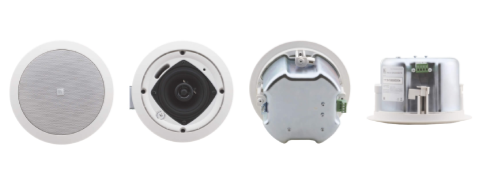

The Galil 4−C Closed−back Compact Ceiling Speaker features a multi−tap power transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation. The Galil 4−CO open−back version is also available.

  • Type — 2–way coaxial speaker.

  • Woofer — 4” polypropylene cone.

  • Tweeter — 0.5” Mylar dome.

  • Impedance — 8Ω.

  • Power Handling — 30W RMS, 80W continuous program.

  • Transformer Taps — 70V: 30W/15W/7.5W/3.7W/Off (Lo–Z); 100V: 30W/15W/7.5W/Off (Lo–Z).

  • UL 1480 & 2043 Listed

  • Package Includes — 2 speakers (1 pair), ceiling mounting kit, template and user manual.

  • Installation Dimensions — External diameter: 19.5cm (7.68"); cutout diameter: 16.7cm (6.57")
