Optical Armored 4K HDMI Cable

Low Smoke & Halogen Free

4K@60 (4:4:4) 18 Gbps for all lengths

Extremely Durable

CRS-PlugNView-HActive

Overview

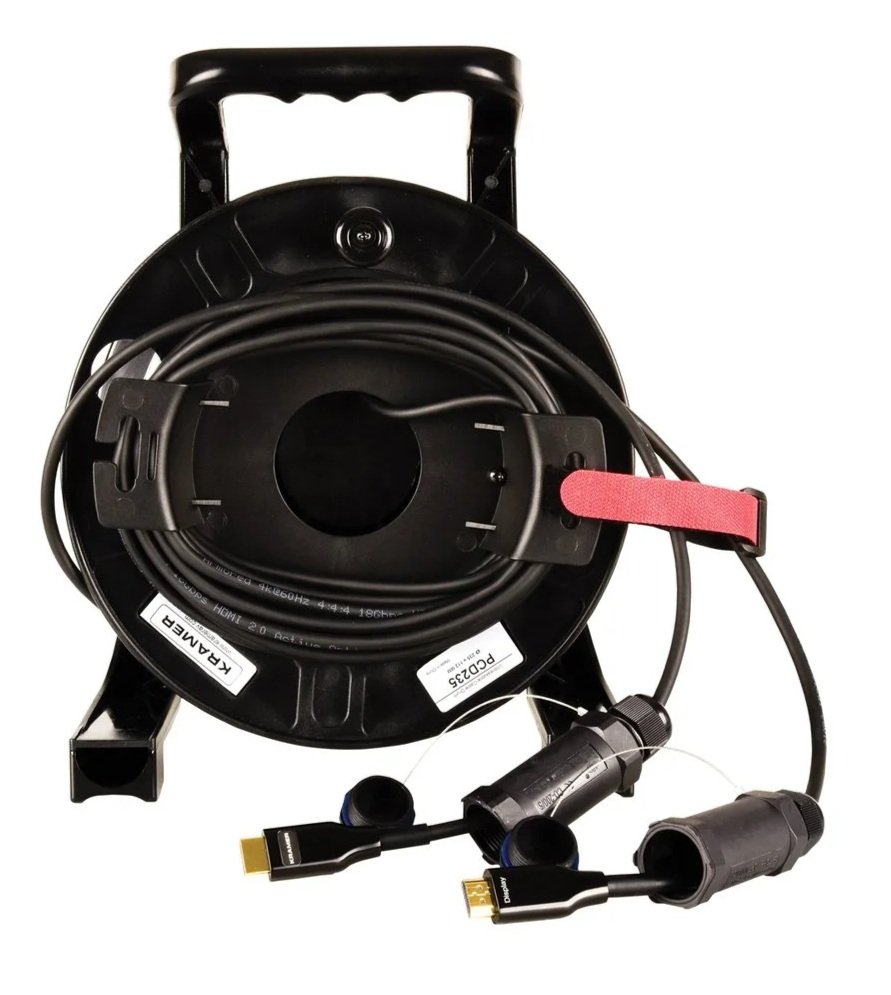

CRS−PLUGNVIEW−H cable is a high−speed HDMI active optical cable (AOC) designed with heavy−duty durability perfectly suited for the harshest use and abuse expected from rental and road applications. CRS−PlugNView−H supports resolutions up to 4K@60 (4:4:4) 18 Gbps over long cable runs up to 100 meters without the need for an external power supply or additional extenders.

  • High Resolution over Long Range — Active cable supports resolutions up to 4K@60 (4:4:4) over long cable runs up to 100 meters.

  • High Data Transfer Rate — Up to 18 Gbps.

  • No External Power Needed — Powers the active units via the HDMI connector with a power consumption of only 0.25W:50mA @5V.

  • Comprehensive HDMI Support — HDCP 2.2, HDR–10, HLG, Dolby Vision™, deep color, x.v.Color™, 5.1/7.1 lossless Dolby® TrueHD, DTS–HD Master Audio®, EDID and CEC.

  • Extremely Durable — integrated. stainless steel, corrugated tube with Kevlar reinforcement protects the internal optical fibers. A TPU jacket, heavy duty connectors and robust waterproof & impact resistant connector covers ensure high pulling strength and compression load. Dispensed from a solid, mobile plastic spool.

  • Varied Selection of Lengths — Available in versions from 10 to 100m (33 to 328ft).

  • o- Rental and Staging
