XDS-2285 - IAdea

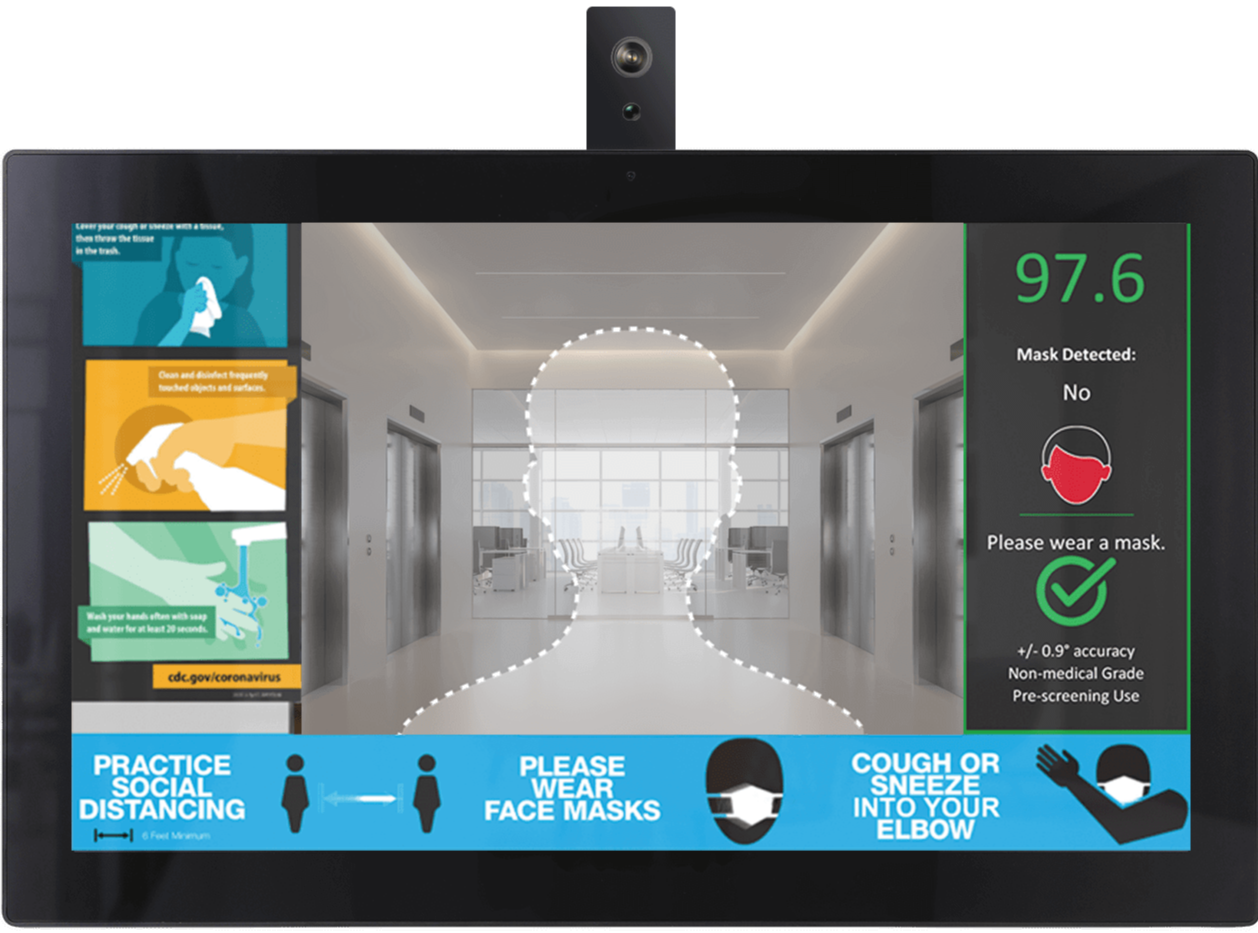

22″ Non-touch All-in-one display
IAdea 22″ Non-touch All-in-one display enables corporate and campus to announce important information without interrupting classes or meetings. With IAdea bundled content management utility allow users to update announcement anywhere, any time.
XDS-2285
IAdea 22″ All-In-One Display
A dynamic, modern, and powerful solution for all spaces
The IAdea XDS-2285 is a 22” all-in-one smart display that is part of the IAdea Digital Signage Series.
It incorporates a robust design and commercial functionality into a value-packed digital signage solution.
Powerful CPU Computing
Responsive Design
Wide View Angle
Tempered Glass
Superior Image Quality
Featuring the latest wide viewing angle technology (IPS) and 250 nits brightness for the best visual experience, even from a distance. Users are also able to view images or videos being played on screen in both landscape and portrait modes.
All-in-One Smart Design
No extra cabling. Simply connect power and network, then update and control the display remotely at your fingertips. Whether you are an administrator or in management, work has gotten just a lot more efficient, productive and smarter for you.
I/O Ports
Technical Specification
Display
• 21.5” IPS LCD panel
• 250 nits maximum brightness
• 1920 x 1080 (Full HD) panel resolution
• Viewing angle (H/V): 178/178
Internal Player
• Processor: Cortex-A17 1.8 GHz Quad-Core
• System memory: 2.0 GB
• Flash memory: 8 GB eMMC built-in
Video Format Supported
• H.264 / AVC up to 1080p (1920 x 1080)
• H.265 / AVC up to 1080p (1920 x 1080)
• MPEG-4 up to 1080p (1920 x 1080)
• MPEG-2 up to 1080p (1920 x 1080)
• MPEG-1 up to 1080p (1920 x 1080)
• VC-1 up to 1080p (1920 x 1080)
Image Format Supported
• JPEG up to 1920 x 1080
• PNG up to 1920 x 1080
Audio Format Supported
• MP3 up to 320 kbps
Content Management
• SignApps Express
• 3rd party solution (optional license)
Open Standards Supported
• HTML5, JavaScript, and CSS
• W3C SMIL for cross-platform management
• W3C widgets for HTML delivery
• Android 7.1 API
HTML5 Support
• Widgets for calendar, clock, news, and web page integration
• HTML5 technology including CSS and Javascript
• Chromium-based browser engine, same as Google Chrome™
Advanced Signage Features
• Remote commissioning
• AlwaysOn, AppLock to prevent unauthorized access
• StrongCache for continuous playback even when network is not available
• Multi-zone screen layout, transparent PNG overlay, and graphical scrolling ticker
• Auto-play starts playing scheduled content automatically when power is not re-established
• Automatic error recovery with built-in WDT
• Real-time clock with backup clock battery
Connectivity
• Front camera: 2MP
• Wi-Fi: 802.11 b/g/n
• Mini USB for ADB (Android Debug Bridge)
• Ethernet RJ45
• USB 2.0 x 3
• Built-in stereo speakers 2 W x 2
• 3.5 mm analog stereo audio out
• SD card slot, memory expendable to 16 GB / 32 GB / 64 GB (card replaces internal storage)
Mounting Options
• Built-in VESA compatible 100 mm x 100 mm posts
Supplied Accessories
• Power adapter
• Power cord
• I/O bracket
• Quick guide
Optional Accessories
• PVK-302 Adjustable Table Stand
Power Requirement
• Input: AC 100 - 240 V, 50 - 60 Hz, 1.5 A max
• Output: 12 V / 3 A
• UL/CB certified power supplies
Environmental
• Operating temperature: 0 °C to 40 °C
• Humidity: 10 % to 85 % @ 40 °C non-condensing
Dimensions for Product & Package
• System dimension (mm): 538 x 331 x 37 (21.18" x 13.03" x 1.46")
• System weight: 3.83 kg (8.44 lbs)
• Package weight: 5.8 kg (12.78 lbs)
Certifications
• CE / FCC / RoHS
Warranty
• 1-year limited parts & labor* (varies based on region, contact sales for more details)
