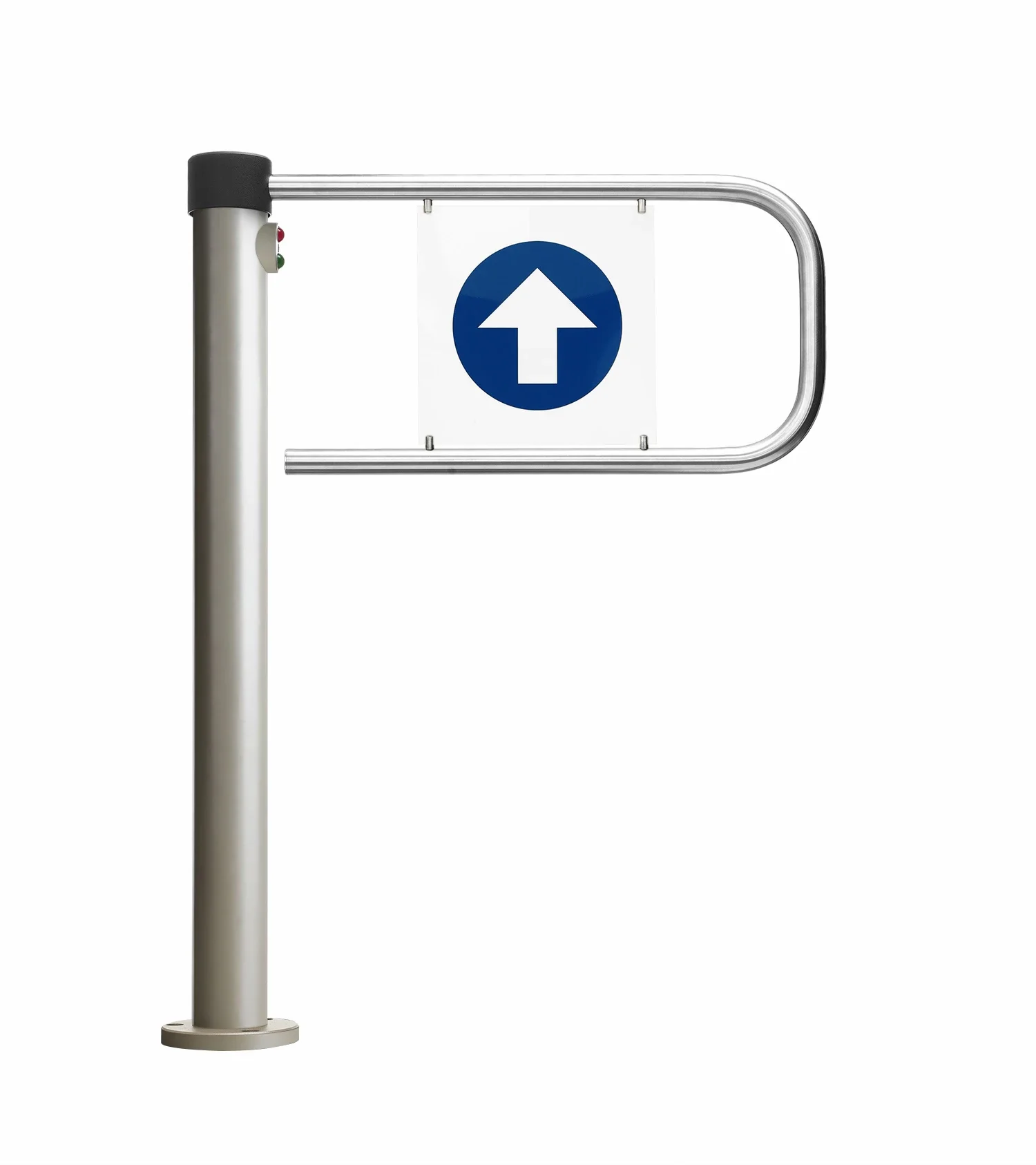

WHD-05 electromechanical swing gates with the ASG-650 swing panel are designed to organize access control points with the convenient luggage and transportation of bulky goods.

• swing gate post with built-in electronics

• tempered glass swing panel of 650 mm

• RC-panel

Swing panel options:

• AGG-650 - swing panel of 650 mm, stainless steel

• AGG-900 - swing panel of 900 mm, stainless steel

The passage width of the swing gate is 700 mm.

It is recommended to install the swing gates based on the 20 people/minute peak load for each passage zone.

To increase passage width, the swing gates can be installed in pairs with the swing panels facing each other.

WHD-05 swing gate can be installed standalone or with other PERCo turnstiles. The swing gates can also be completed with railings produced in the same design.

In case of a power loss, the swing panel can be opened manually in both directions.

The control board provides emergency unblocking upon receiving the Fire Alarm signal (Fire Alarm input).

WHD-05 swing gates can operate as standalone units from RC-panel (included in the delivery set) or WRC (optional), and a part of an access control system (ACS).

The ability to select the control mode (pulse or potential) ensures correct operation in access control systems of any manufacturer.

The standard WHD-05 gate is a bi-directional device but it may be configured to a single direction mode with a mechanical rotation limiter included in the standard delivery set.

The control board located in the swing gate post has inputs to connect sound indication (siren) and outputs to connect remote indication blocks.

To pass in the permitted direction, the swing panel is pushed manually. Once the passage is complete, the swing panel automatically returns to its home position. The swing panel smooth rotation is ensured by a hydraulic damper.

Built-in indication block of the swing gate state (open/closed) is located on the post from the side of the passage zone.
