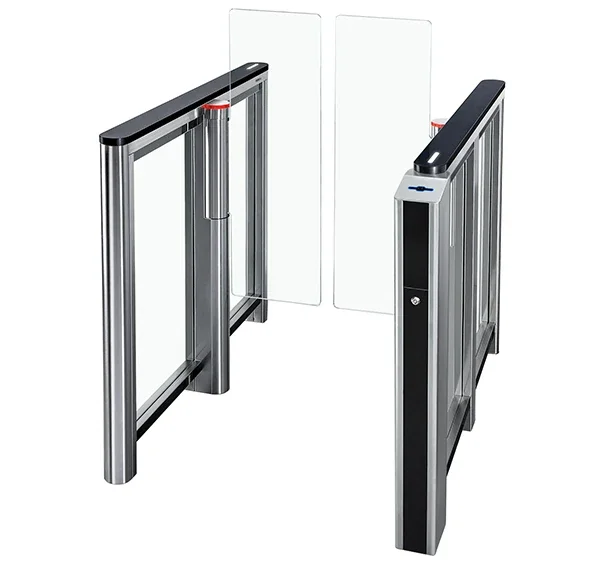

ST-11 Speed gate with a built-in card capture reader is designed for small sites with increased requirements for design, convenience, and throughput.

The built-in card capture reader allows automating the guest passes collection.

• two sections with built-in electronics

• two top covers

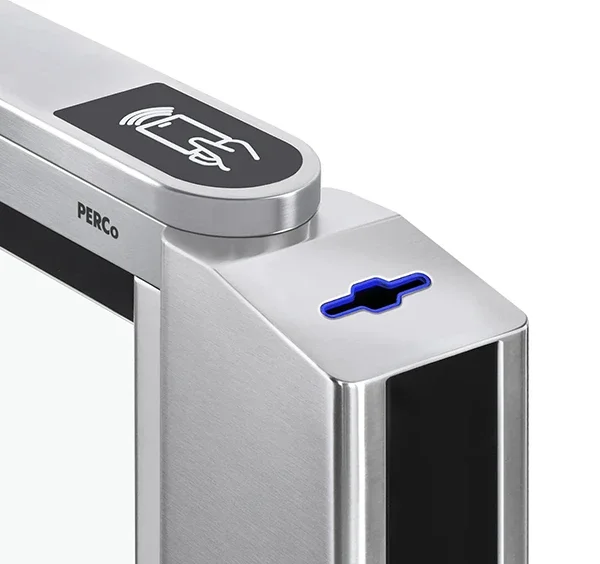

• FP-11C front panel with a built-in card capture reader

• two glass swing panels

• central section with built-in electronics and two glass swing panels (optional)

• RC-panel

ST-11 Speed gate can be equipped with four types of swing panels and three types of top covers.

The distinctive feature of the top cover made of artificial quartz stone is its high durability to external influences. Unlike artificial acrylic stone, artificial quartz stone contains up to 90 percent of natural quartz - one of the strongest natural materials. The stainless-steel design provides an easier installation of additional equipment. The stainless-steel top covers with plastic inserts allow embedding proximity card readers.

Special poles and brackets are provided to ensure the convenient installation of additional equipment.

It is possible to install readers under the turnstile top covers.

It is possible to install STD-11 central section to increase the number of passage zones. Each central section allows organizing an extra passage zone.

The increased passage width allows organizing an additional emergency exit and access for people with reduced mobility.

The speed gates can also be completed with railings produced in the same design.

The tracking system is equipped with two levels of infrared sensors with 24 pairs located on the upper level and the other 24 on the lower level of the turnstile, which guarantees safety and a high throughput rate and prevents tailgating.

The control board provides emergency unblocking upon receiving the Fire Alarm signal (Fire Alarm input).

The turnstile can be a part of an ACS as an operating device or a standalone unit controlled by RC-panel or WRC. The RC-panel is included in the standard delivery set.

The ability to select the control mode (pulse or potential) ensures correct operation in access control systems of any manufacturer.

The product provides independent control of the passage zone in two directions. The infrared sensors built into the speed gate sections record the actual fact of passage and its direction, which ensures correct accounting of working hours in ACS.

Upon authorized access, the swing panels open automatically.

The control board inside the speed gate housing provides a complete set of control modes. The control board has inputs to connect sound indication (siren) and outputs to connect remote indication blocks.

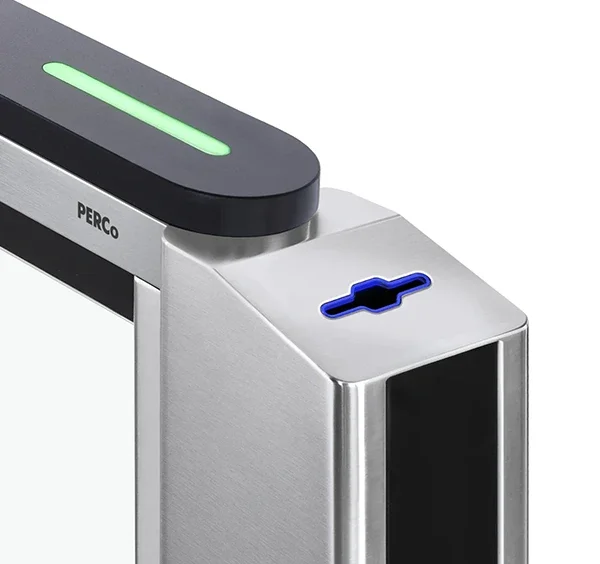

The (open/closed) turnstile state indication is located on the central indication blocks above the swing panel drives, and on the front ends of the artificial stone top covers (the indication on stainless steel covers is not provided).
