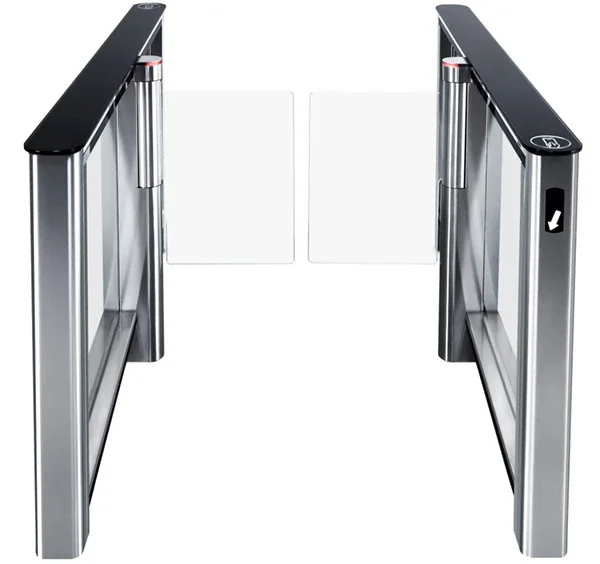

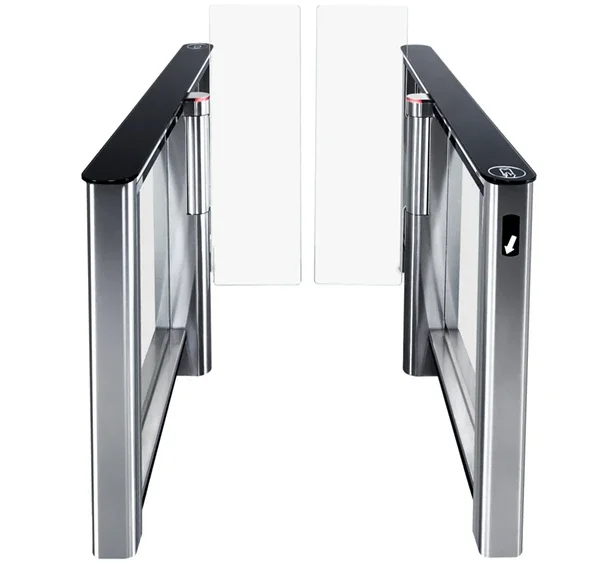

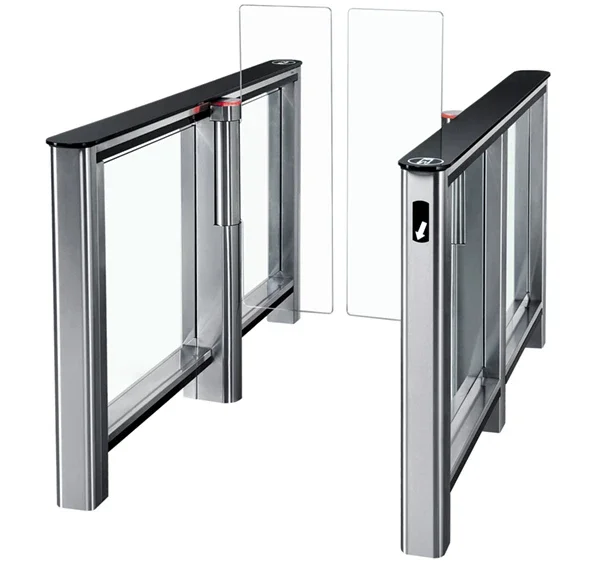

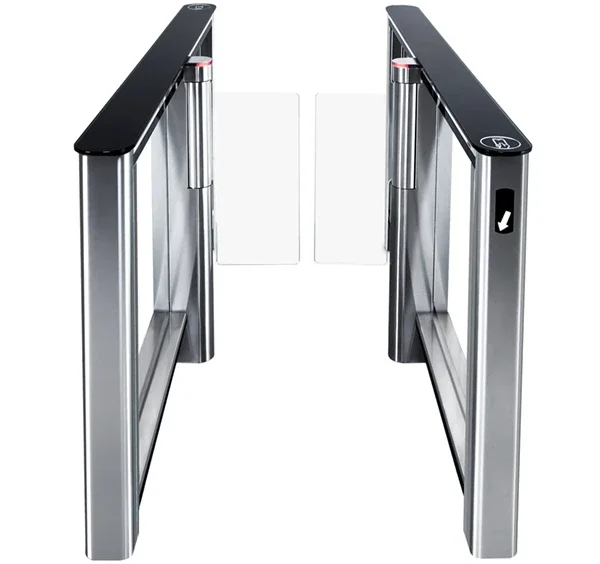

ST-01 Speed gate with swing panels is designed for sites with increased requirements for design, convenience, and throughput.

• two sections with built-in electronics

• two top covers

• two swing panels made of tempered glass

• central section with built-in electronics and two swing panels (optional)

• RC-panel

ST-01 can be equipped with 5 types of swing panels and 4 types of top covers.

The stainless-steel design simplifies the installation of additional equipment and increases the durability of the top covers. The top covers of tempered glass with stainless steel inserts combine style and easy integration of additional equipment. The stainless-steel top covers with plastic inserts allow embedding proximity card readers.

Special poles and brackets are provided to ensure the convenient installation of additional equipment.

It is possible to install readers under the turnstile top covers.

It is possible to install STD-01 central section to increase the number of passage zones. Each central section allows organizing an extra passage zone.

The increased passage width allows organizing an additional emergency exit and access for people with reduced mobility.

The speed gates can also be completed with railings produced in the same design.

The tracking system is equipped with two levels of infrared sensors with 14 pairs located on the upper level and the other 28 on the lower level of the turnstile, which guarantees safety and a high throughput rate and prevents tailgating.

The control board provides emergency unblocking upon receiving the Fire Alarm signal (Fire Alarm input).

The turnstile can be a part of an ACS as an operating device or a standalone unit controlled by RC-panel or WRC. The RC-panel is included in the standard delivery set.

The ability to select the control mode (pulse or potential) ensures correct operation in access control systems of any manufacturer.

The product provides independent control of the passage zone in two directions. The infrared sensors built into the speed gate sections record the actual fact of passage and its direction, which ensures correct accounting of working hours in ACS.

Upon authorized access, the swing panels open automatically.

The control board inside the speed gate housing provides a complete set of control modes. The control board has inputs to connect sound indication (siren) and outputs to connect remote indication blocks.

The passage direction indicators are located on the front ends of the turnstile posts. The turnstile state indicators (open/closed) are located on the post top covers.
