BB01 Retractable belt stanchion
5 year warranty
5 year warranty
All-weather design
High corrosion resistance
-

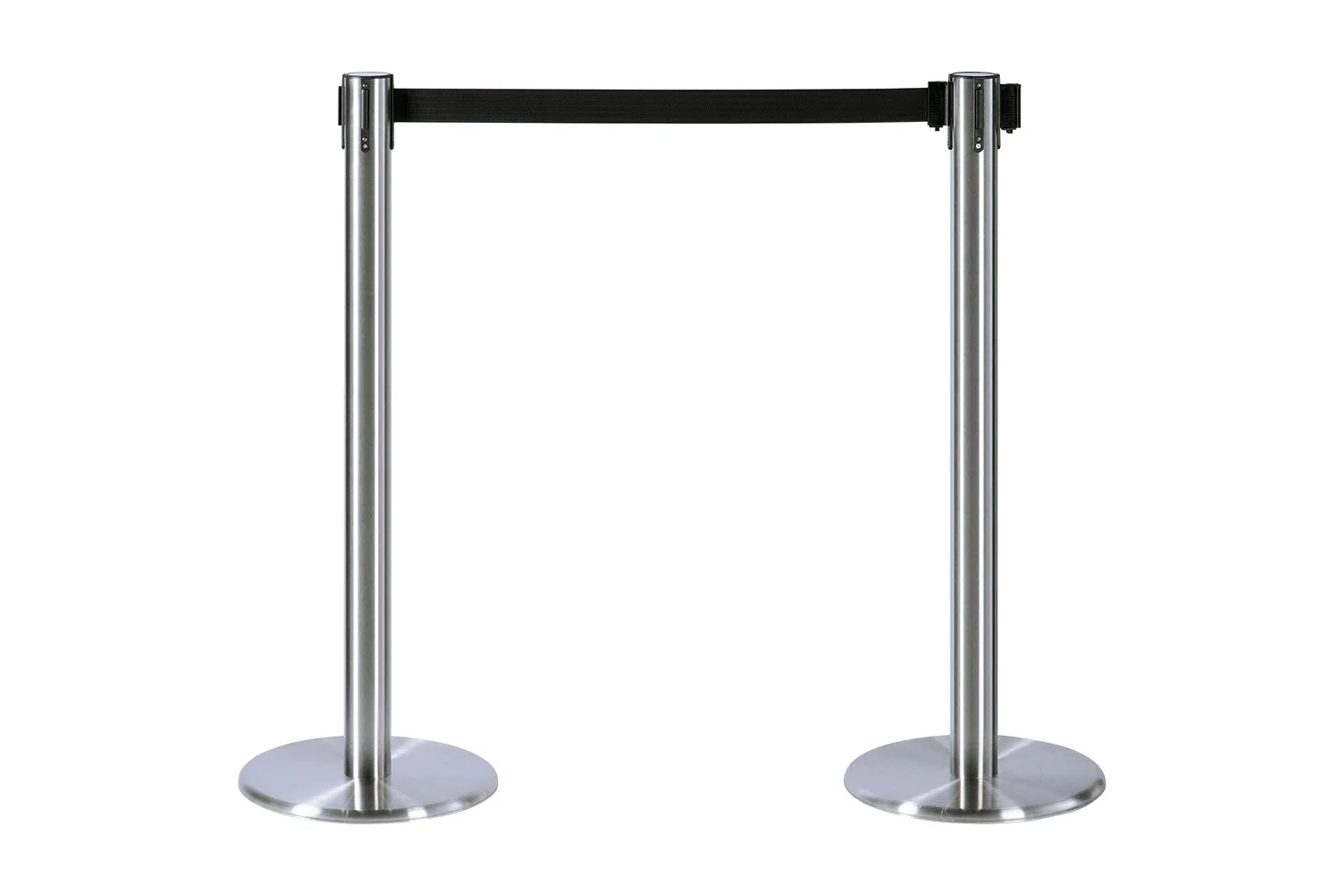

The BB01 Retractable belt stanchion is designed to form passage zones, arrange queues, and divide premises into zones at shopping complexes, retail outlets, business centers, hotels, airports, cinemas, hotels, museums, and mass cultural events.
-
The BB01 Retractable belt stanchions are made of stainless steel, which not only contributes to their elegant appearance but also ensures their corrosion resistance under adverse environmental conditions.
-
Stanchion post with a weight

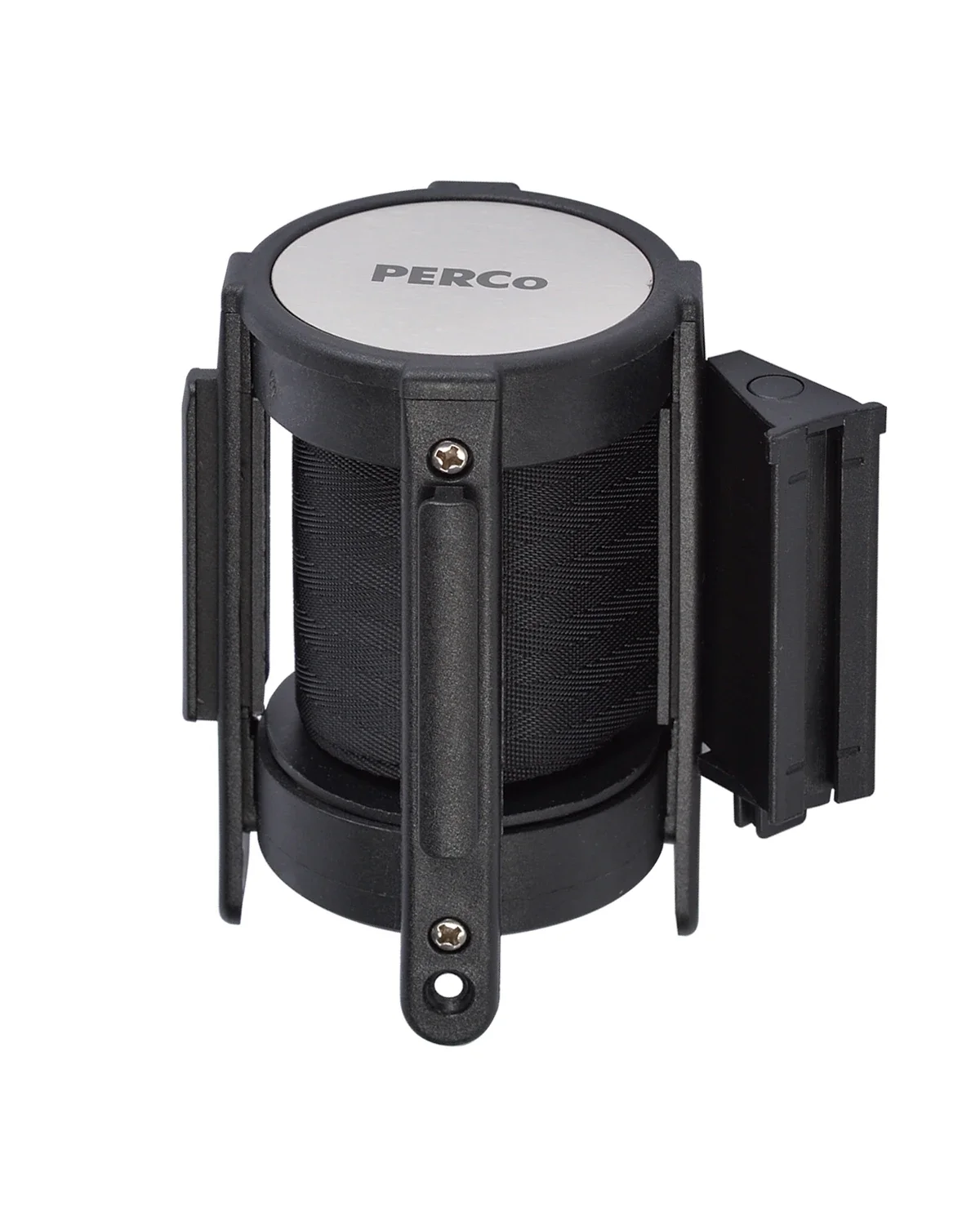

Reel with a barrier belt
-
The optimum height of the stanchion post prevents people from passing under or over the barrier. The edges of the post’s flat base taper to the floor, allowing suitcases, baby transport, and wheelchairs to roll freely without causing queues.
The post can tilt up to 35 degrees before overturning.
-

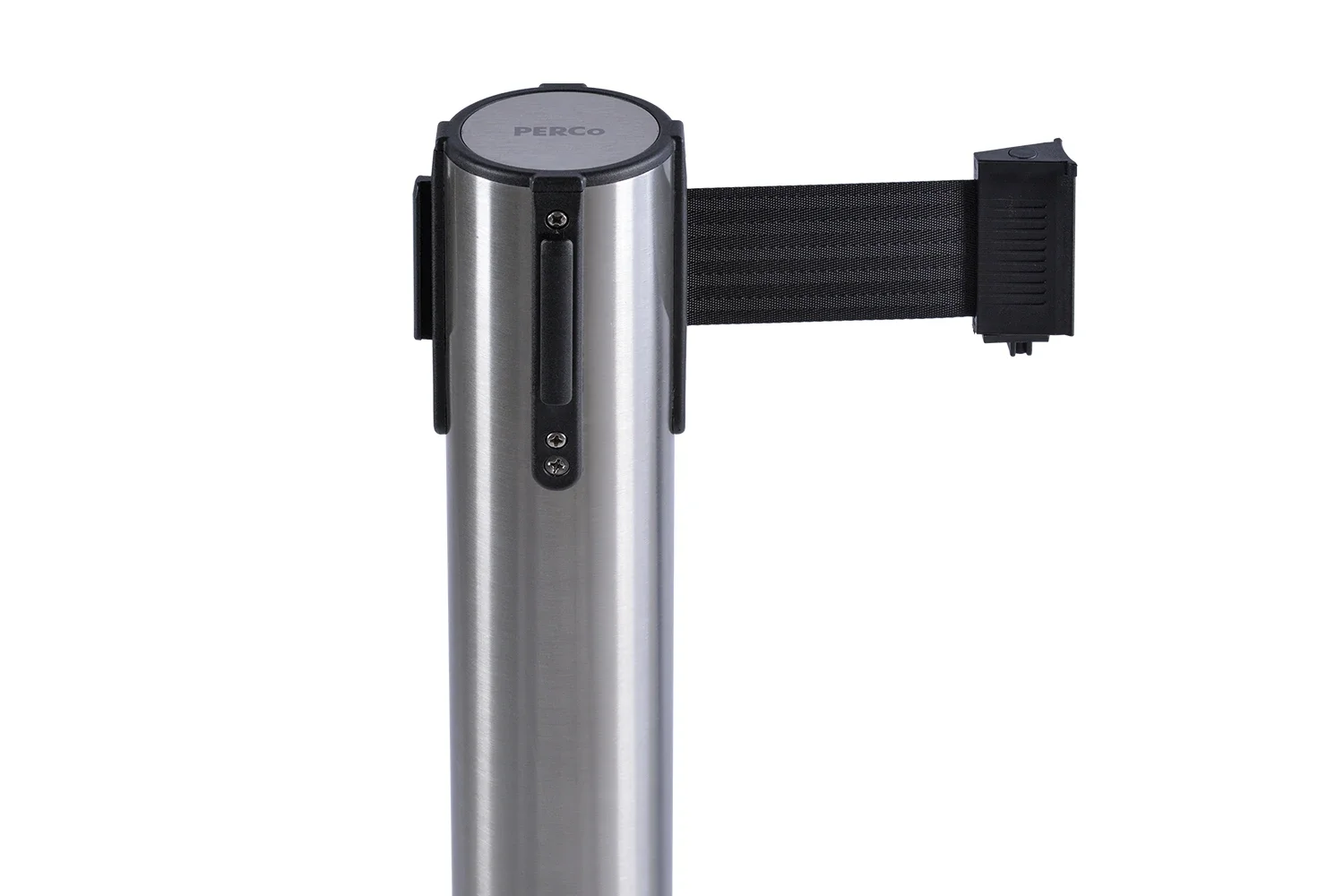

The reel has a return mechanism with smooth retraction (a brake). An anti-tamper lock prevents accidental release of the belt from the post.
-
The post base is outfitted with a rubber ring to protect the floor from damage.
-
The stanchion's low center of gravity ensures resistance to overturning during passage. The reel’s slow retraction mechanism contributes to a high level of safety for passers-by.
Characteristics
Weight material: cast iron.
Reel material: durable plastic.
Post, base disk, and flange (cap) material: stainless steel (AISI 304).
| Post height | 1000 mm |
| Post diameter | 63.5 mm |
| Post wall thickness | 1.2 mm |
| Base shape | flat |
| Base disk diameter | 350 mm |
| Base height | 25 mm |
| Base weight | 7.5 kg |
| Total weight of the stanchion | 9.5 kg |
| Belt length | 3 m |
| Belt width | 48 mm |
| Belt color | black |
