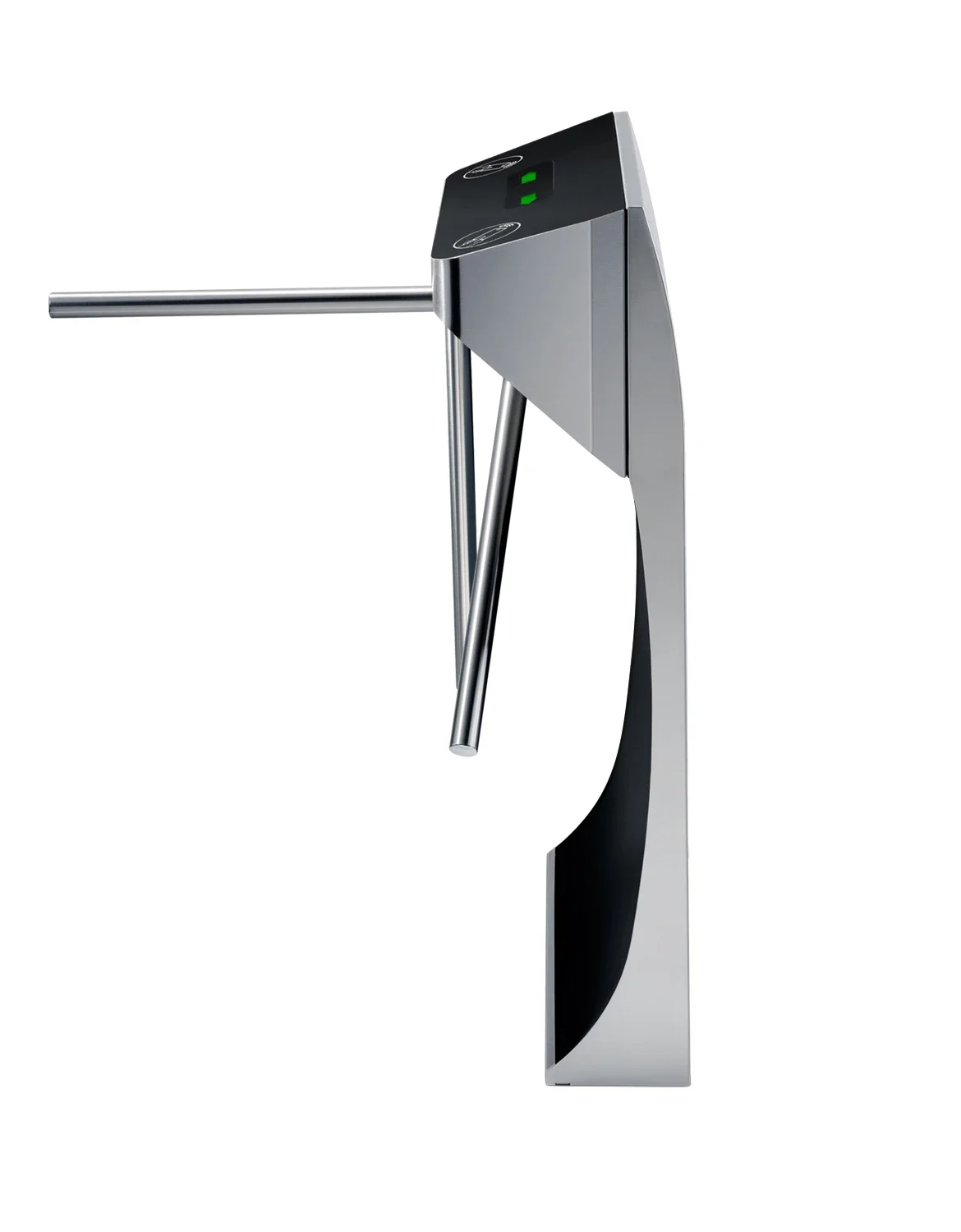

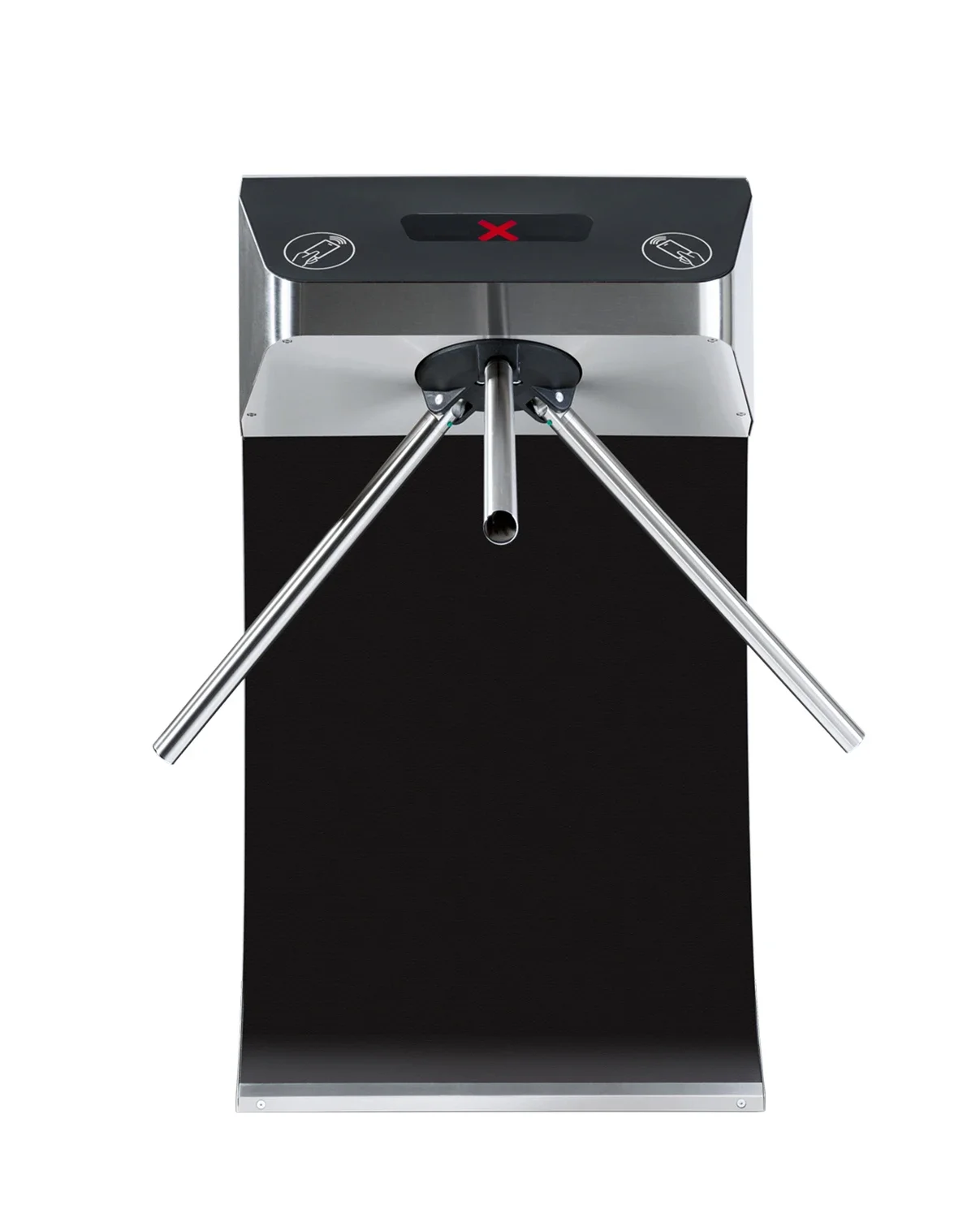

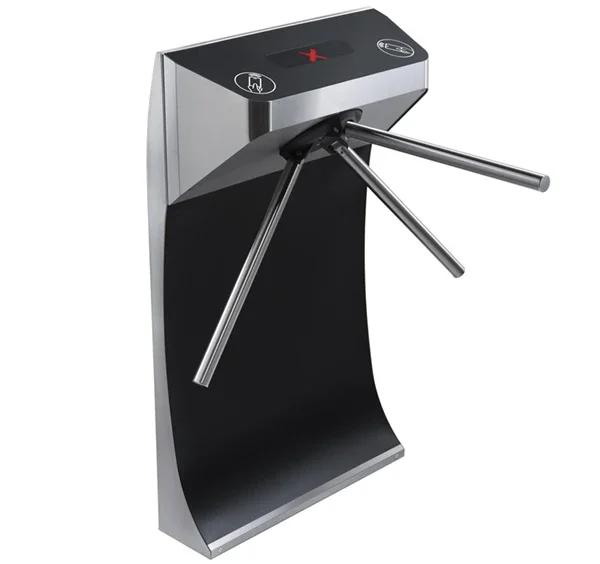

TTR-11А Motorized tripod turnstile
5 year warranty
All-weather design
Automatic "anti-panic" function
Expandable design
persons/min
temperature range
protection rating
"anti-panic" barrier arms
motor drive
cycles of time to failure
-
TTR-11A Motorized tripod turnstile is used as a blocking device in paid access systems and allows controlling the flow of people at the entrances of industrial enterprises, banks, administrative institutions, shops, railway stations, and airports.
-
TTR-11A Tripod turnstile is designed for outdoor use under a shelter protecting against direct precipitation.
-
Turnstile with built-in electronics
Flywheel with automatic “anti-panic” barrier arms
RC-panel
-

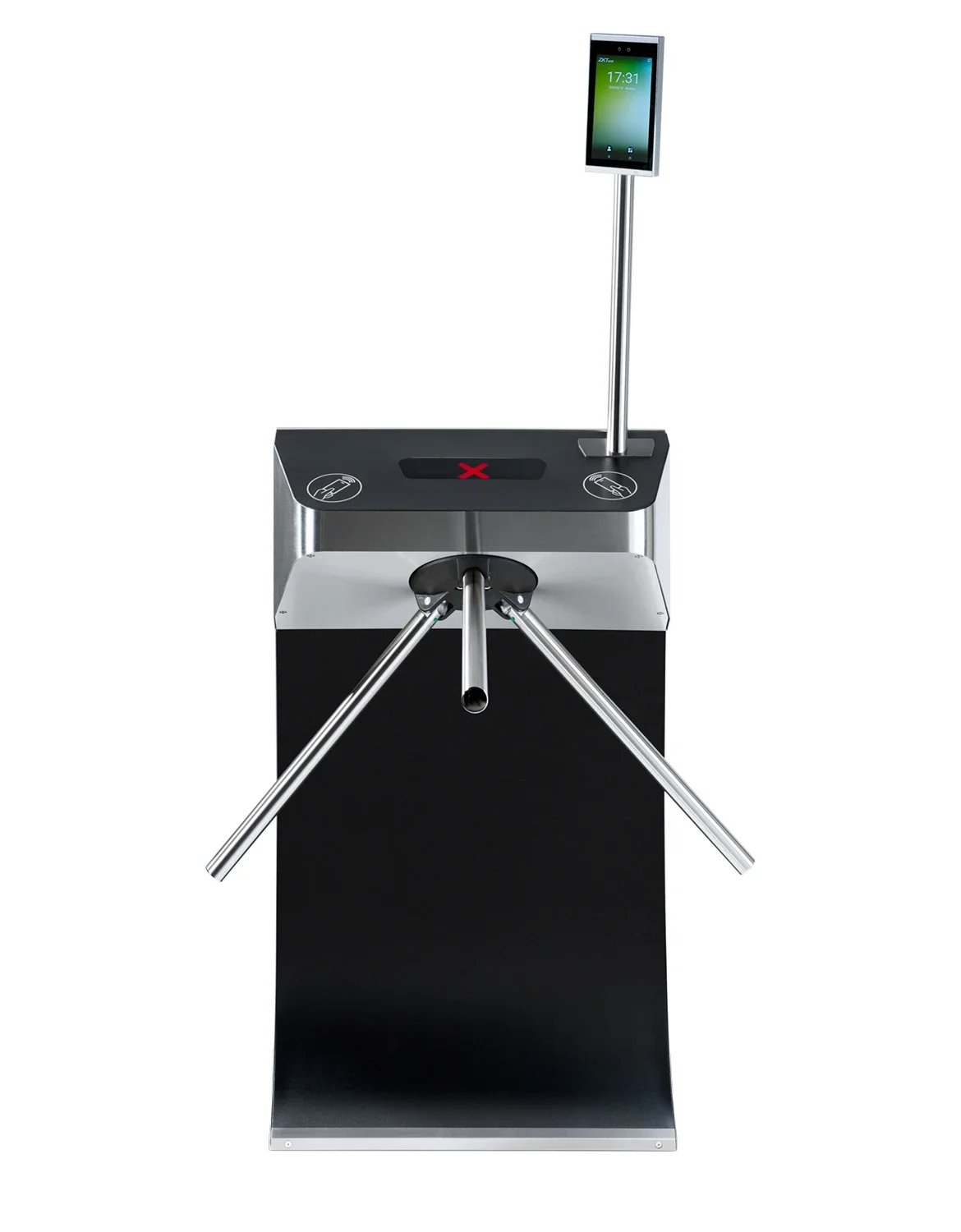

The radio-transparent top cover made of laminate plastic allows embedding readers and installing external additional equipment.
-
To ensure a fast and convenient passage, it is recommended to install one turnstile for every 500 people working one shift or based on the 30 people/minute peak load.
Turnstiles can also be completed with railings, produced in the same design.
-

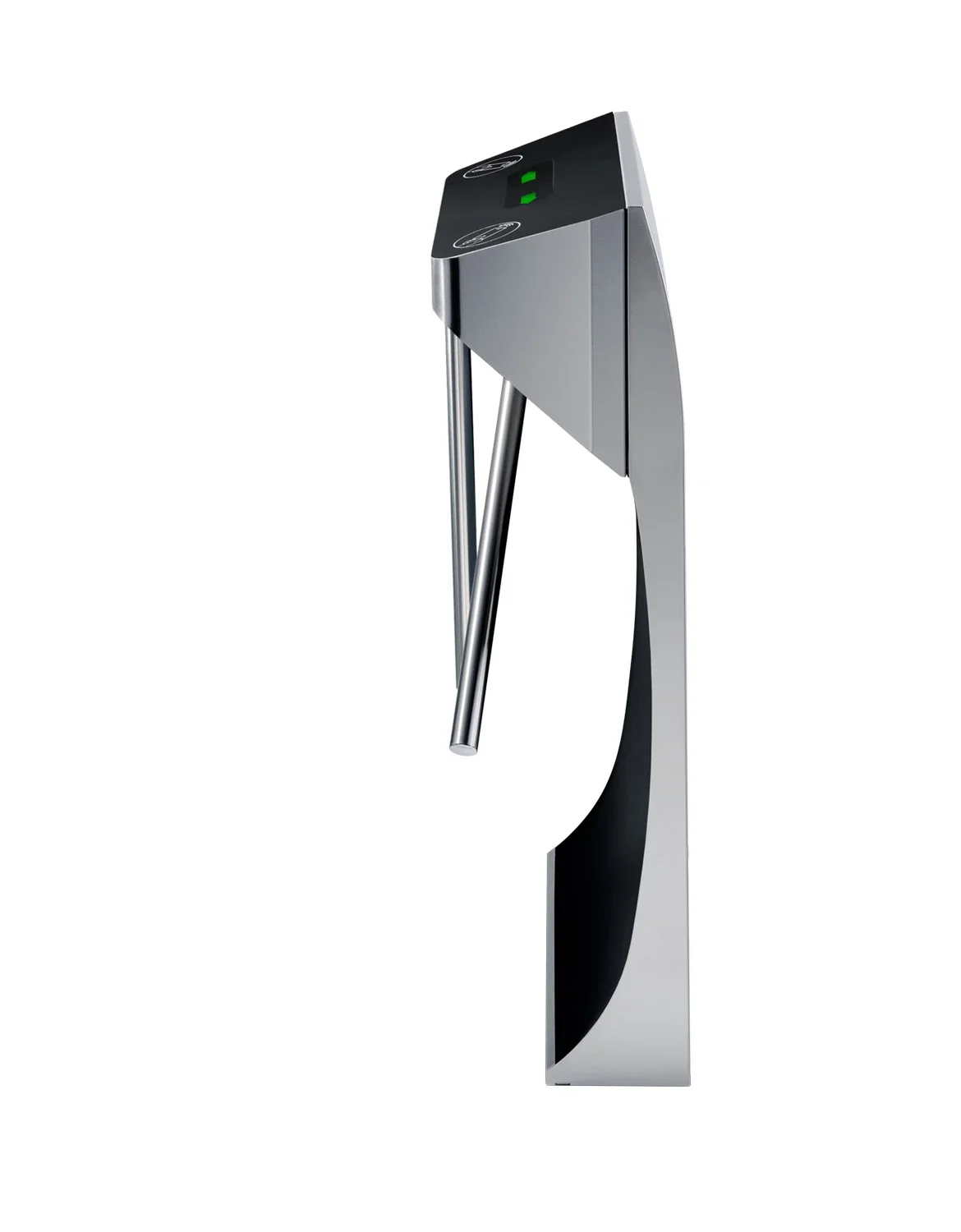

The automatic “anti-panic” function is an up-to-date solution that provides a fast evacuation in case of emergencies. At a signal from the access control system or in case of power loss, the barrier arm automatically falls, ensuring free passage.
After the Fire Alarm signal is removed or the power supply is restored, the barrier arm is set to the initial (horizontal) position manually.
The control board provides emergency unblocking upon receiving the Fire Alarm signal (Fire Alarm input).
-
TTR-11A can be operated from an access control system (ACS) or as a standalone unit from RC-panel or WRC (purchased separately).
The ability to select the control mode (pulse or potential) ensures correct operation in access control systems of any manufacturer.
The operation mode (passage permission and denial) can be set independently for each passage direction. The optical sensors built into the turnstile housing record the actual fact of passage and its direction, which ensures correct accounting of working hours in access control systems.
The control board placed inside the turnstile housing provides a complete set of control modes. The control board has inputs to connect sound indication (siren) and outputs to connect remote indication blocks.
A built-in motor drive ensures smooth and quiet operation of the turnstile.
-

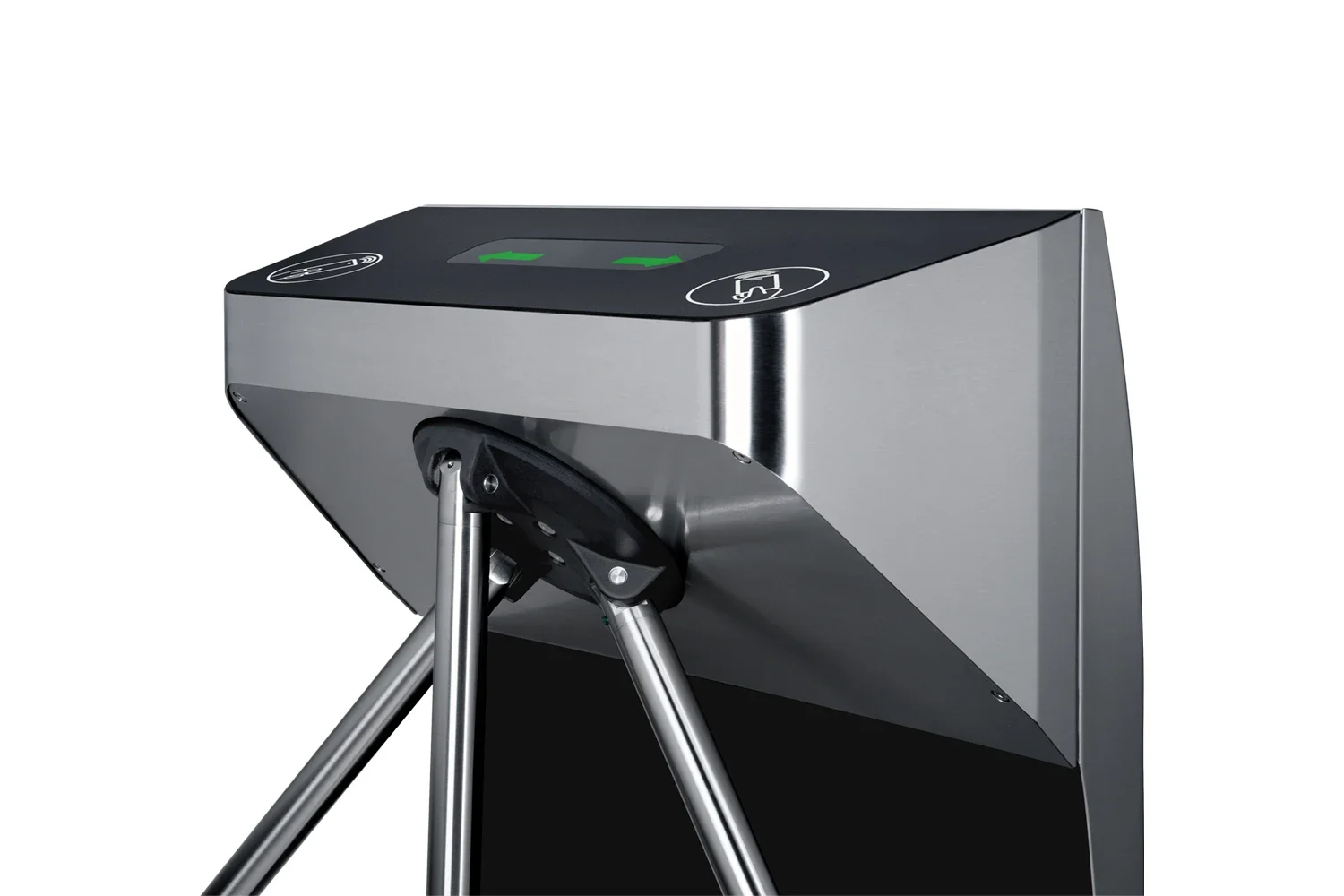

The turnstile state (open/closed) and passage direction indicators are located on the turnstile top cover.
Characteristics
Housing - stainless steel and powder coating, laminate plastic.
Barrier arms - stainless steel.
| Operating voltage | 24 V DC |
| Power consumption | 150 W |
| Consumption current | max 5.5 A |
| Number of passage directions | 2 |
| Throughput rate (in the single passage mode) | 30 persons/min |
| Throughput rate (in the free passage mode) | 60 persons/min |
| Dimensions (length×width×height) | 800×760×1055 mm |
| Passageway width | 500 mm |
| Operating temperature range | from -40 °C to +55 °C |
| IP Code | IP42 |
| "Anti-panic" barrier arms | automatic |
| Mean lifetime | 8 years |
| Mean time to failure | 3000000 passages |
| Required operating range for installed RFID readers | not more than 150×70×28 mm |
