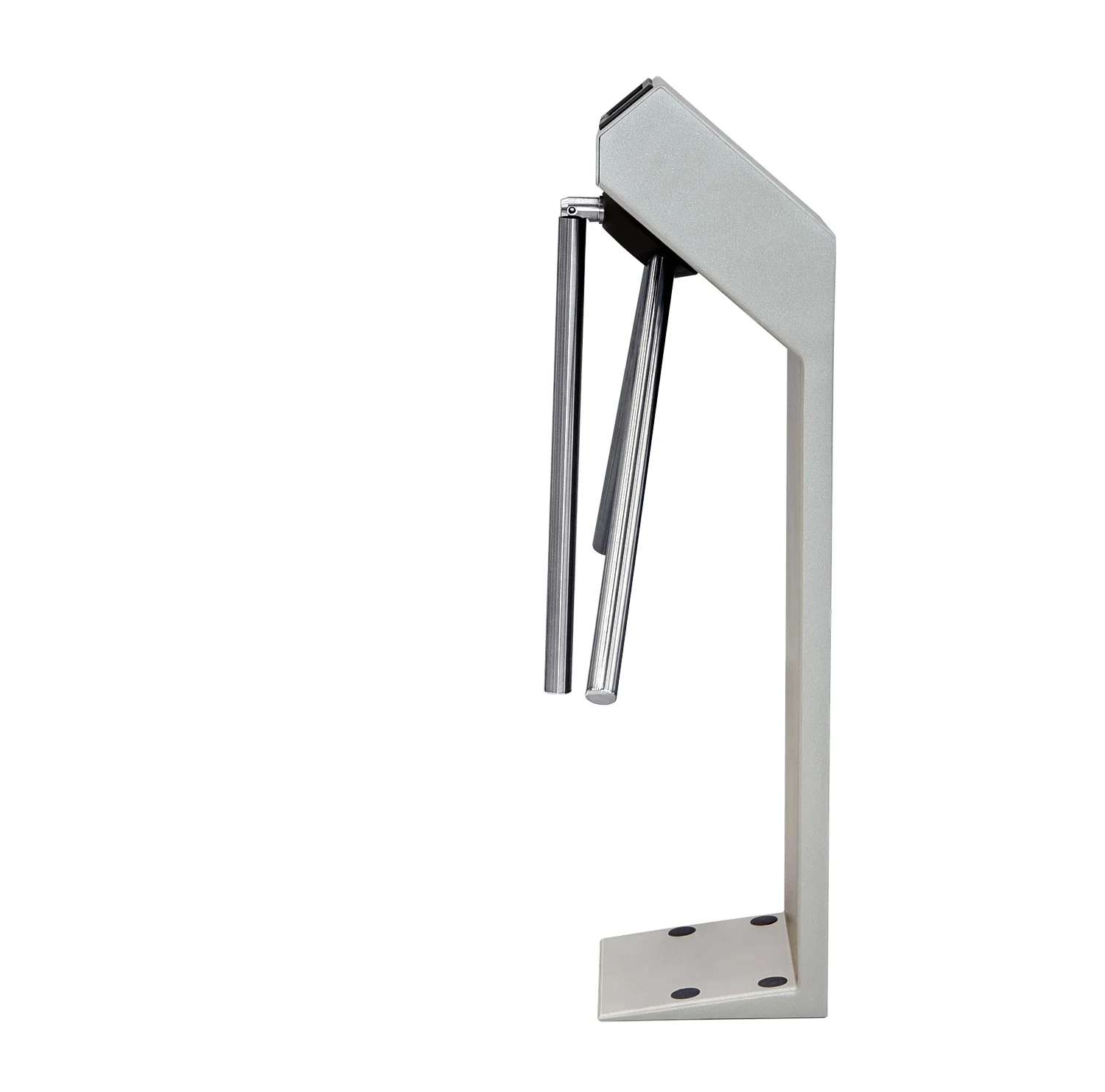

TTR-04.1 compact tripod turnstile provides access control at checkpoints of commercial, public, and industrial facilities. TTR-04.1 turnstile is designed for indoor application; for outdoor application TTR-04CW is provided.

• Turnstile with built-in electronics

• Set of barrier arms

• RC-panel

Barrier arm options:

• AS-04 Standard barrier arms - stainless steel

• AA-04 “Anti-panic” barrier arms - stainless steel

• light beige color with pearl mica effect

• dark grey color with pearl mica effect

To ensure a fast and convenient passage, it is recommended to install one turnstile for every 500 people working one shift or based on the 30 people/minute peak load.

Turnstiles can also be completed with railings produced in the same design.

Optionally, the turnstile can be equipped with mechanical “anti-panic” barrier arms, which provide a fast evacuation in an emergency without special keys or tools.

If necessary, the built-in mechanical release key allows unblocking the turnstile and ensures free rotation of barrier arms.

The control board provides emergency unblocking upon receiving the Fire Alarm signal (Fire Alarm input).

It is possible to connect the intrusion detector and siren to the turnstile.

TTR-04.1 Turnstile can be operated from an access control system (ACS) or as a standalone unit from RC-panel or WRC (purchased separately).

The ability to select the control mode (pulse or potential) ensures correct operation in access control systems of any manufacturer.

The operation mode (passage permission and denial) can be set independently for each passage direction. The optical sensors built into the turnstile housing record the actual fact of passage and its direction, which ensures correct accounting of working hours in access control systems.

The control board placed inside the turnstile housing provides a complete set of control modes. The control board has inputs to connect sound indication (siren) and outputs to connect remote indication blocks.

A built-in hydraulic damper ensures smooth and quiet operation of the turnstile.

The top cover displays the passage direction and turnstile state indication (open/closed).
