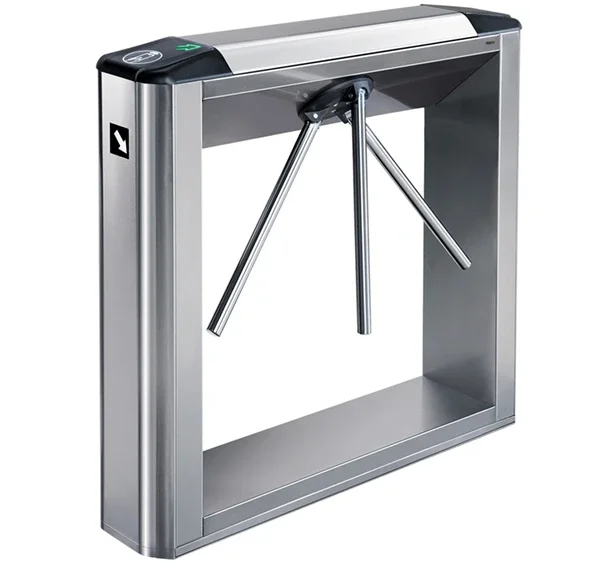

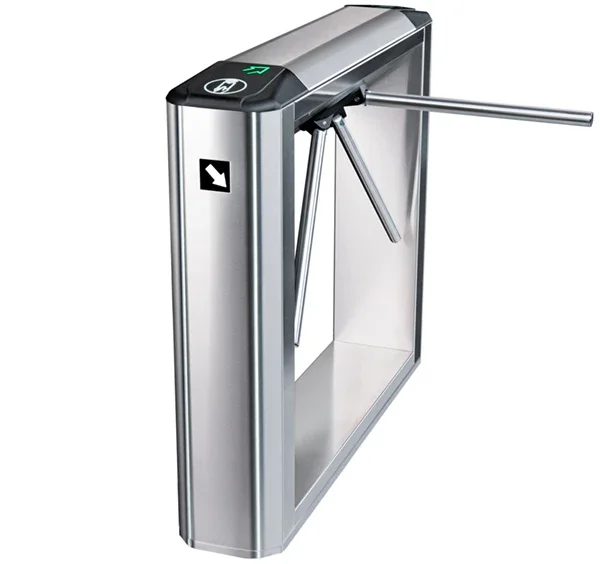

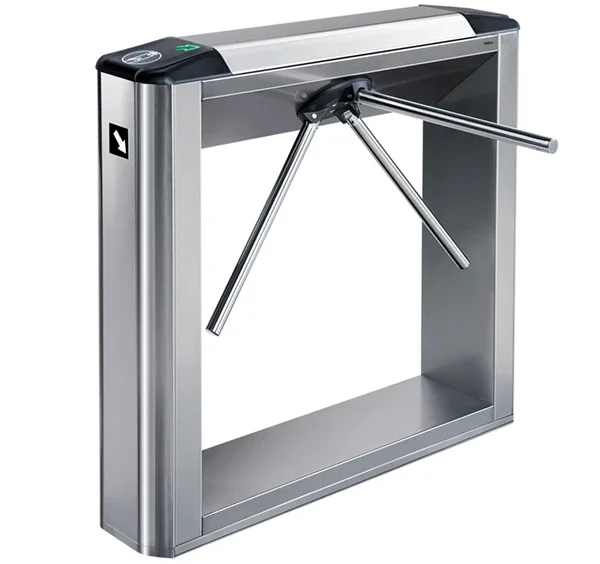

TTD-08A Box tripod turnstile is an up-to-date solution for organizing access control outdoors without shelter due to the stainless-steel design. The design allows the turnstile to be used in the entrances of office buildings, enterprises, business centers, banks, etc.

TTD-08A Turnstile is made of stainless steel, which ensures both an elegant design and corrosion resistance to outdoor operation.

• Turnstile with built-in electronics

• Flywheel with automatic "anti-panic" barrier arms

• RC-panel

The box tripod turnstile features radio-transparent top covers, under which proximity card readers (of PERCo or other manufacturers) can be placed. It is possible to place ACS controllers inside the turnstile. Special poles and brackets allow the installation of additional equipment on the stainless-steel top cover.

The turnstile has a convenient passage width of 560 mm.

To ensure a fast and convenient passage, it is recommended to install one turnstile for every 500 people working one shift or based on the 30 people/minute peak load.

Turnstiles can also be completed with railings, produced in the same design.

The automatic "anti-panic" function is an up-to-date solution that provides a fast evacuation in case of emergencies. At a signal from the access control system or in case of power loss, the barrier arm automatically falls, ensuring free passage.

After the Fire Alarm signal is removed or the power supply is restored, the barrier arm is set to the initial (horizontal) position manually.

The control board provides emergency unblocking upon receiving the Fire Alarm signal (Fire Alarm input).

TTD-08A can be operated from an access control system (ACS) or as a standalone unit from RC-panel or WRC (purchased separately).

The ability to select the control mode (pulse or potential) ensures correct operation in access control systems of any manufacturer.

The operation mode (passage permission and denial) can be set independently for each passage direction. The optical sensors built into the turnstile housing record the actual fact of passage and its direction, which ensures correct accounting of working hours in access control systems.

The control board placed inside the turnstile housing provides a complete set of control modes. The control board has inputs to connect sound indication (siren) and outputs to connect remote indication blocks.

A built-in hydraulic damper ensures smooth and quiet operation of the turnstile.

The card presentation zones are highlighted with pictograms. The turnstile top cover has a pictographic display indicating the turnstile operation modes.
