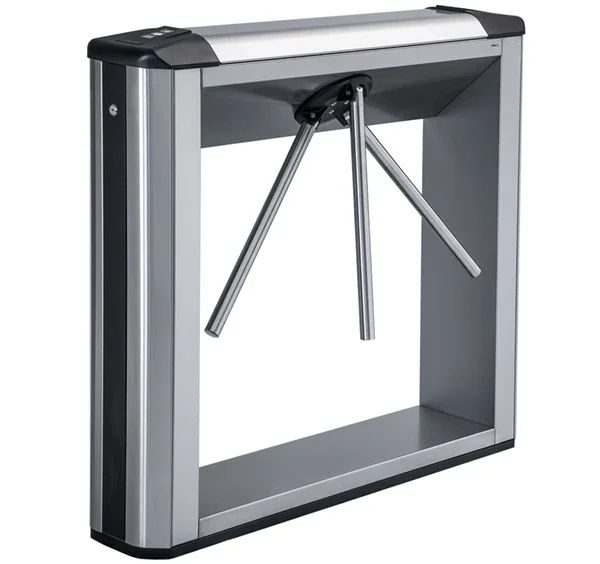

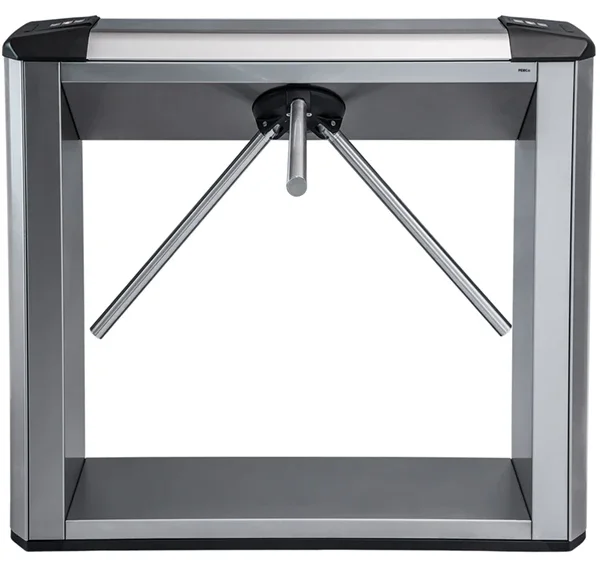

TBC-01.9A Box tripod turnstile is a compact and elegant solution to equip checkpoints. Box tripod turnstiles installed in one line form a passage zone without extra railing system installation.

• Turnstile with built-in electronics, 2 readers, and a card capture reader (EMM/HID/MIFARE)

• Flywheel with automatic "anti-panic" barrier arms

• RС-panel

Two built-in multi-format readers provide communication with the controller via the Wiegand interface. The built-in card capture reader can be used in an access control system that supports the status of temporary passes.

It is possible to place ACS controllers inside the turnstile.

The turnstile has a convenient passage width of 560 mm.

To ensure a fast and convenient passage, it is recommended to install one turnstile for every 500 people working one shift or based on the 30 people/minute peak load.

Turnstiles can also be completed with railings, produced in the same design.

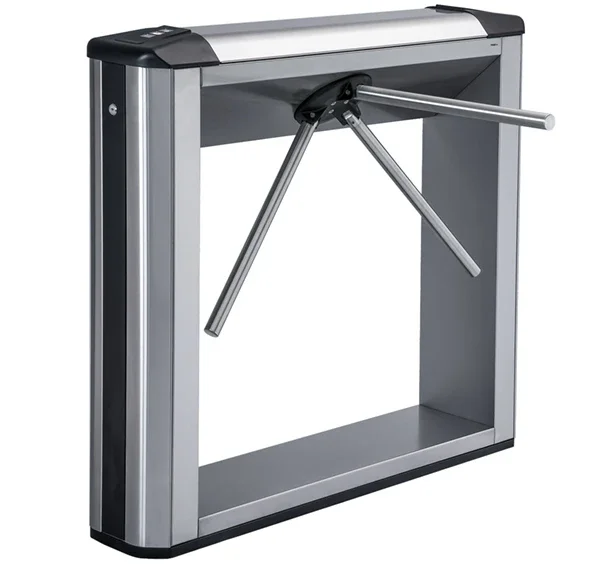

The automatic "anti-panic" function is an up-to-date solution that provides a fast evacuation in case of emergencies. At a signal from the access control system or in case of power loss, the barrier arm automatically falls, ensuring free passage.

After the Fire Alarm signal is removed or the power supply is restored, the barrier arm is set to the initial (horizontal) position manually.

The control board provides emergency unblocking upon receiving the Fire Alarm signal (Fire Alarm input).

TBC-01.9A can be operated from an access control system (ACS) or as a standalone unit from RC-panel or WRC (purchased separately).

The ability to select the control mode (pulse or potential) ensures correct operation in access control systems of any manufacturer.

The operation mode (passage permission and denial) can be set independently for each passage direction. The optical sensors built into the turnstile housing record the actual fact of passage and its direction, which ensures correct accounting of working hours in access control systems.

The control board placed inside the turnstile housing provides a complete set of control modes. The control board has inputs to connect sound indication (siren) and outputs to connect remote indication blocks.

A built-in hydraulic damper ensures smooth and quiet operation of the turnstile.

On the side cover on the exit side, there is a receiving slot with LED backlight of the card capture reader. The card capture reader container is locked and has easy access for maintenance.

The turnstile top cover is equipped with LED indicators of passage direction and turnstile operation mode.
