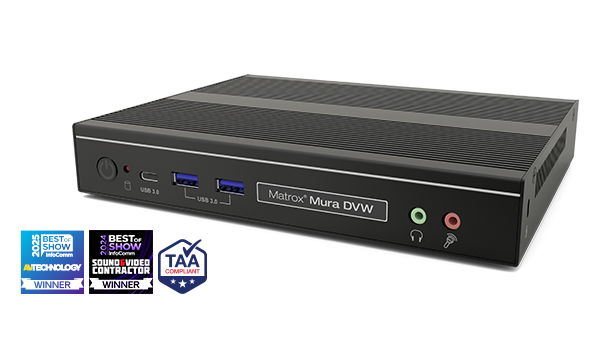

Mura DVW Appliance
Seamless, scalable, synchronized video walls
Matrox Mura DVW is a high-performance, IP-based 4K distributed video wall appliance that lets you combine multiple units to easily create a fully synchronized video surface across a wide range of sizes and rectangular layouts. Mura DVW integrates advanced computing, networking, video decoding, and graphics processing to deliver seamless visual experiences with maximum security. Mura DVW supports high-density, flexible decoding of H.265 (HEVC) and H.264 (AVC) video streams, as well as HTML5 web pages and dashboards. It is also fully TAA compliant.
Perfect video synchronization
Drive up to 64 4K synchronized displays, or 256 full HD when combined with Matrox QuadHead2Go, from a range of sources and eliminate tearing by synchronizing DVW appliances together using IP-based PTP framelocking. With its built-in Best Master Clock Algorithm (BMCA), facility-wide synchronization across Mura DVW appliances can be achieved when a PTP Grandmaster is present.

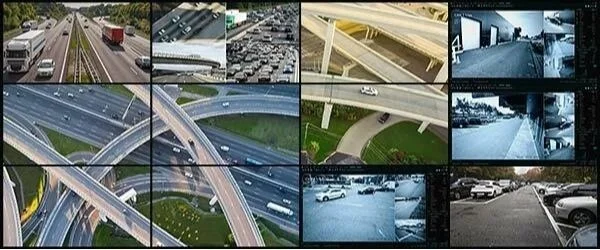

High-performance video wall
Each Mura DVW appliance supports high-density IP stream decoding—handling up to one 8K60, six 4K60, twelve 4K30, eighteen 1080p60, thirty-four 1080p30 or 720p60 and seventy-two 720p30 H.264/H.265 4:2:0 streams simultaneously. Output is supported across up to four 4K60 HDMI displays per device, ensuring smooth, ultra-high-resolution playback.
High-quality desktop content
Mura DVW leverages the HEVC 4:4:4 codec to deliver full-color depth for maximum image quality and system compatibility. This advanced compression enables low-bitrate transmission of visually rich content over IP—ideal for applications demanding color accuracy, compression efficiency, and high performance. Mura DVW also supports widely used codecs like H.264 and H.265 in 4:2:0 format, ensuring seamless integration with most modern COTS equipment.
Simple Installation, No Dedicated Server Required
Reduce deployment costs by eliminating the need for additional hardware, a dedicated server, and extra cabling. Mura DVW simplifies video wall deployment by operating without a separate server, making installation easier while reducing overall complexity and cost.
Robust, built-in security
Mura DVW is engineered with multi-layered security to protect your video wall infrastructure. All communication is encrypted and uses secure protocols like HTTPS, authenticated RTSP, and SRT. User authentication is required for all access and control, while hardware-level encryption ensures no data can be extracted from the device. Powered by a custom-built, locked-down Matrox OS, the system minimizes attack surfaces by tightly controlling software components. Regular vulnerability scans and updates ensure resilience against evolving threats. With Mura DVW, your video wall is not only powerful—but secure by design.

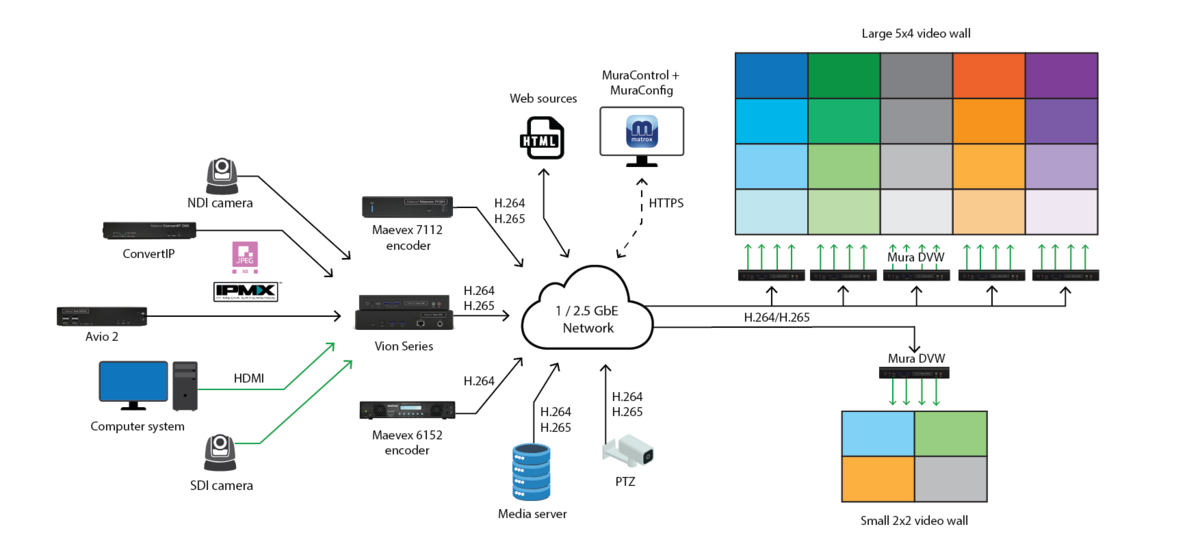

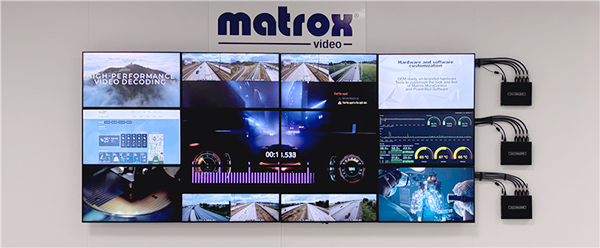

Perfectly seamless, scalable video walls
Display perfectly synchronized streams from a range of sources, including PTZ cameras, encoders, media servers, and web. Mura DVW video walls are flexible and scalable, enabling you to build fully distributed video walls of any size with performance that improves as you add more Mura DVW units to your setup.
IP-based 4K distributed video wall appliance
Technical Specifications
-
Part number
DVW-Q4KY-NA (Canada/US power cord)
DVW-Q4KY-EU (European Union power cord)
DVW-Q4KY-UA (UK and Au/Nz power cords)
Cooling
Dual ball bearing fan

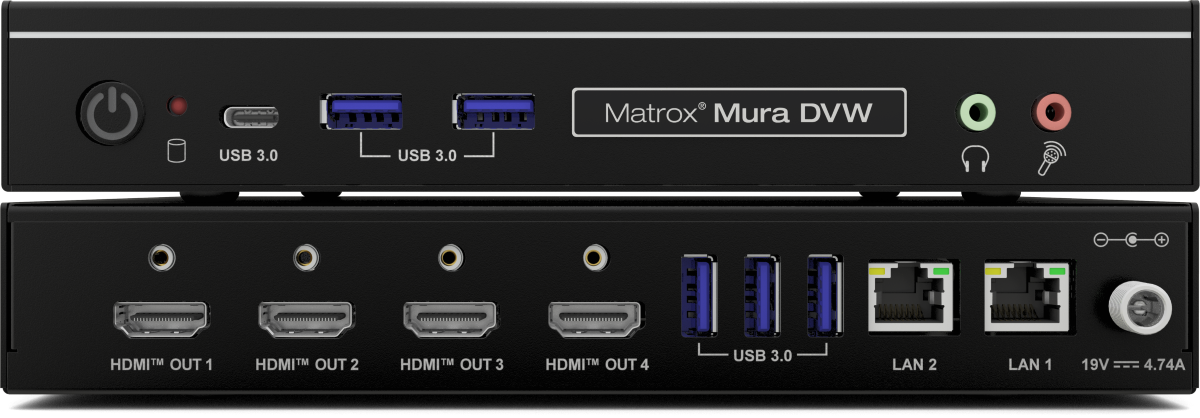

Connectors
4x HDMI outputs with locking mechanism,
2.5 and 1GbE1 RJ45 ethernet
Maximum output resolutions
Max. 4096x2160 @ 60Hz
Form factor
Standalone appliance,
1U, 1/2 rack (horizontal)
-
Standard
Ethernet 10/100/1000/2.5G base-T,
auto-detect, half/full-duplex
Connector
RJ45
IP version
IPv4/IPv6
Distributed method
Unicast, multicast and multiple unicast
IP addressing
DHCP (default) and Static IP
-
Streaming protocols
RTSP, SRT, MPEG2-TS
Command & control protocols
Telnet and HTTPS
-
Pixel formats
RGB: 8:8:8, 10:10:101 (24/32 bits per pixel),
YUV: 4:4:4, 4:2:0 (8/101 bits per component), color space conversion support
-
Video compositing
Multi-channel video composite/key/blend/crop/mirror/flipAudio
Future software feature
-
Codec engine
H.264/MPEG-4 Part 10 (AVC), up to level 5.2, 4:2:0 8-bit
H.265 (HEVC), up to level 6.2, 4:2:0 and 4:4:4 8-bit
H.264 and H.265 decode
For both H.264 and H.265, 4:2:0 8-bit, displayed across four 4K60 monitors:
1x 8K60, 6x 4K60, 12x 4K30, 18x 1080p60, 34x 1080p30, 34x 720p60, 72x 720p30
Rate control
Constant bitrate (CBR), variable bitrate (VBR), VBR with constraints,
configurable GOP (group of pictures) structure
-
Operating conditions
Temperature: 0 to 403 degrees Celsius
Humidity: 10% to 90% non-condensing
Storage conditions
Temperature: -20 to 70 degrees Celsius
Humidity: 20% to 80% non-condensing
Typical power consumption
45W (12-19V)
Power supply
19V, 90 Watt PSU with locking mechanism
-
Dimensions
L: 19cm (7.48in) x W: 14.8cm (5.83in) x H: 3cm (1.18in)
Rackmount
VESA mount bracket included, rackmount compatible
Regulatory compliance
Class A: FCC, CE, RCM, ICES-003, KC, UKCA
Environment compliance
RoHS, China RoHS, REACH, WEEEWarranty2 years2
-
RMK-19TRNXDW-A
Rack-mount shelf kit with pre-attached airflow guide, designed to fit up to two Matrox Vion NX and/or Mura DVW units in a 1RU rack space.
