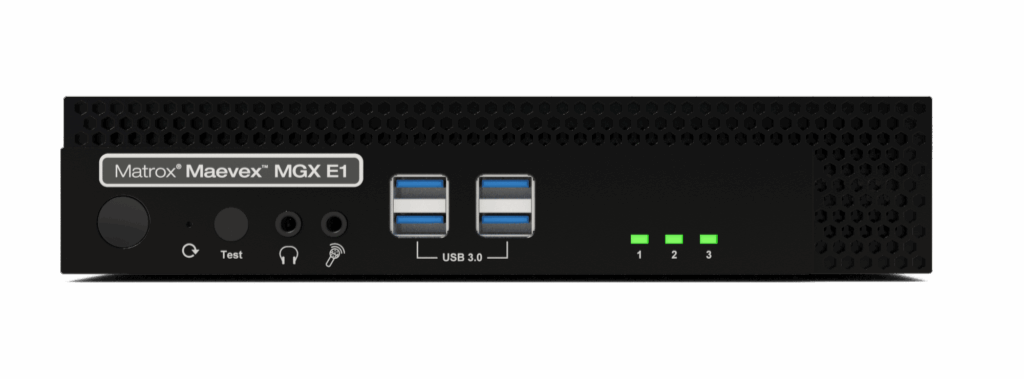

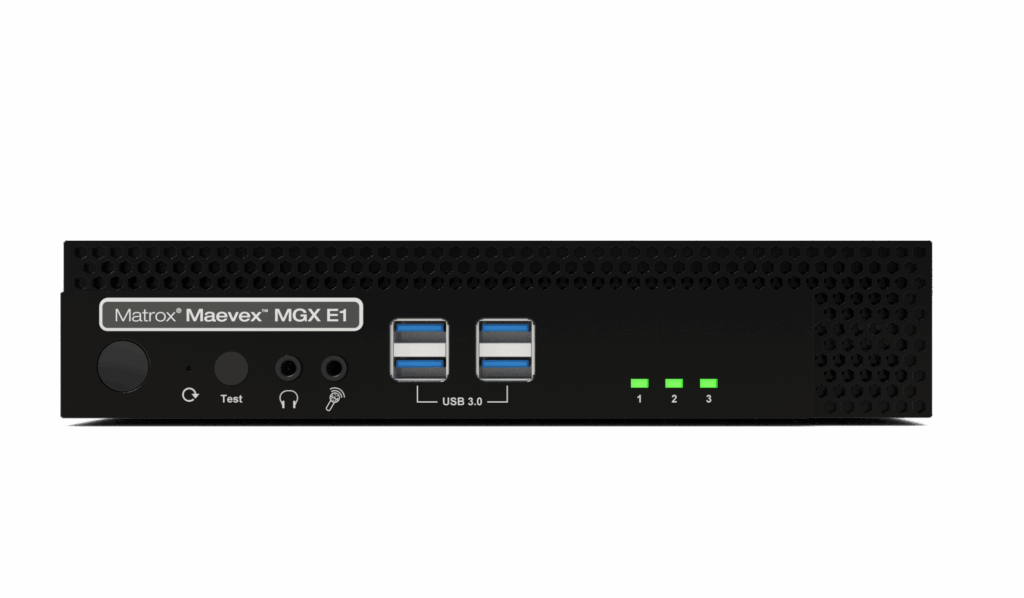

Maevex MGX E1

Single-channel 4K60 H.265/H.264 IPMX-ready video encoder with USB support

Matrox Maevex MGX E1 single channel 4K60 encoder delivers industry-leading imperceptible low-latency 4K60 AV-over-IP streaming with H.265 4:4:4 image quality at up to 1/20th the bitrate of all other lossless ProAV codecs. Its highly efficient streaming architecture dramatically reduces network congestion, complexity, and infrastructure costs, and delivers real-time performance creating a paradigm shift in the way video moves over IP. Built for enterprise and mission-critical environments, Maevex MGX E1 supports both open-standard IPMX, Matrox IQ Mode, and a host of other streaming protocols enabling organizations to optimize for interoperability and maximum performance and design for all their workflow needs.

With advanced codec support, multi-protocol streaming, and integrated USB functionality for interactive workflows, Maevex MGX E1 goes beyond traditional video distribution, enabling real-time collaboration, remote access, and scalable network deployments, all while dramatically reducing bandwidth requirements.

Enquire Us Now
Datasheet
Contact Us
  • Anchor ANSCTRS240V 240cm*180cm 120" Tripod Projector Screen

Key Benefits

Exceptional quality and latency at a fraction of the bandwidth

Achieve 4K60 4:4:4 visual fidelity with industry leading low latency while dramatically reducing network demands.

  • H.265 4:4:4 color space encoding delivers best-in-class lossless image quality combined with high-compression bandwidth efficiency with additional support for HEVC and AVC 4:2:0 encoding

  • Industry-leading low latency performance as low as 1-2 frames for real-time responsiveness when paired with Maevex MGX D1 or Maevex MGX D2 decoders

  • Default bitrate for 4K60 lossless image quality at 50Mbps – user tunable

  • Comparable quality and latency at a fraction of the bandwidth to virtually all Pro AV 1GbE light compression solutions, reducing network congestion, complexity and infrastructure costs to enable more simple and scalable deployment

Flexible streaming modes with simultaneous multi-protocol operation

Adapt to diverse workflows with multiple streaming modes from a single device.

  • Support for open standards IPMX and Matrox IQ Mode for ultra-low latency (both with NMOS support), and RTSP, MPEG-TS, and SRT enables unparalleled flexibility across any AV environment

  • Simultaneous multiple streaming protocol support enables operators to get streams wherever they need to go from a single device – LAN, WAN/VPN, internet/cloud

  • Local pass-through output and control enable seamless integration with existing desktops and workstations while simultaneously streaming your content to decoders and other endpoints

Integrated USB extension for interactive and collaborative workflows

Extend beyond video with built-in USB support for full remote interaction and collaboration with a paired Maevex MGX D1 or D2 decoder.

  • Keyboard, mouse, and webcam extension for viewing, contributing, and controlling real-time content remotely

  • Enables real-time interaction industry-leading low latency for a seamless user experience at 1/20th the bitrate of other light compression USB-enabled solutions

  • Supports collaborative meeting spaces, control rooms, and secure remote operations

  • Pair sets of Maevex MGX encoders and decoders – above and beyond single and dual screen remote operation – to support triple, quad, or more workstation display deployments

Software and Developer Tools

Easy to use with comprehensive tools for integration and device management:

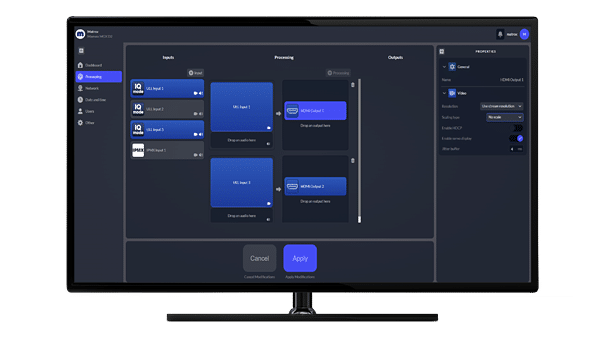

  • Configure and manage your device with the easy-to-use Web UI

  • Discover, route and monitor signals across your network with the ConductIP Media Routing Appliance

  • Streamline firmware updates across multiple devices with Matrox Central Manager

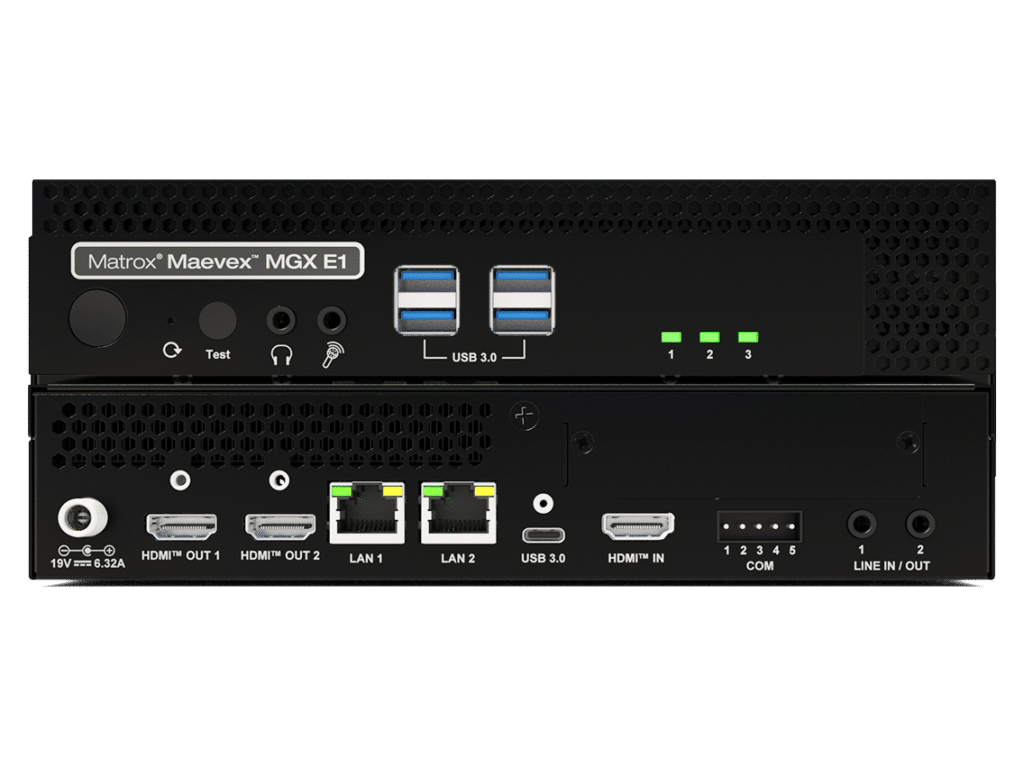

Technical Specifications

    • Part Number: MVX-MGXEIY

    • Form Factor:

      • Standalone appliance

      • Rack-mountable: 1U, 1/2 rack (horizontal)

  • Input – HDMI
    1x HDMI (Type A) with retention screw

    Input – Audio
    HDMI digital LPCM two-channel stereo audio

    Input – Microphone
    1x 3.5mm port*

    Input – Line In
    1x 3.5mm port*

    Output – HDMI
    2x HDMI (Type A) with retention screw

    Output – Headphone
    1x 3.5mm port*

    Output – Line Out
    1x 3.5mm port*

    Network

    • LAN 1: 1000/2500 Base-T RJ45

    • LAN 2: 1000/2500 Base-T RJ45

    • Separate MAC addresses

    USB Ports

    • 4x USB Type A (front)

    • 1x USB Type C (back)

    • USB Type C support for USB host connection

    COM Port
    5 Pin Com port*

  • Baseband Video Input Resolutions
    All common resolutions and refresh rates up to 3840×2160@60Hz (progressive only)

    Baseband Video Output Resolutions
    Passthrough: all common resolutions and refresh rates up to 3840×2160@60Hz (progressive only)

    Encode

    • H2.65 (in 4:2:0 or 4:4:4)

    • Up to 1x 4Kp60

    • H2.64 (in 4:2:0 only)

    • Up to 1x 4Kp60

    Recording
    Available in future firmware release*

    Latency

    • Matrox IQ Mode (glass-to-glass)

    • As low as 32 ms (2 frame)

    • IPMX (glass-to-glass)

    • As low as 120 ms

  • Video Scaling
    Yes

    Video Compositing
    No

    Preview Mode
    Yes

    HDCP Support
    1.4 and 2.3

    Audio Encoding Format
    MPEG-4 AAC-LC (Raw and ADTS)

    Audio Bitrates
    Up to 1152 Kbps (AAC-LC)

    Codecs and Color Space Support

    • H265 (HEVC), 4:2:0 8/10-bit

    • 4:4:4 8/10-bit up to 100 Mbps

    • H264/MPEG-4 part 10 (AVC)

    • 4:2:0 8-bit up to 100 Mbps

    • Uncompressed audio

    • for IPMX & Matrox IQ mode

    • AAC-LC

    • 32 to 1152 kbps per stereo pair

  • Encoder/Decoder Video Bitrate
    50Kbps to 400Mbps (per stream)

    Encoding Level
    Up to 6.0

    Encoding Profiles

    • H.264 Baseline

    • H.264 Main

    • H.264 High

    • H.265 Main

    • H.265 Main 10 bits

    • H.265 Main 4:4:4

    • H.265 Main 4:4:4 10 bits

    Encoding Rate Control

    • Adjustable GOP size

    • Constant Bitrate (CBR)

    • Variable Bitrate (VBR)

  • Network Standard

    • Auto speed

    • Half/full duplex

    • IGMP Version 2 and 3

    Routing Scheme

    • Unicast

    • Multicast

    • Multi-unicast

    IP Addressing

    • IPv4

    • IPv6

    • DHCP (default) and static IP

    Command and Control

    • mDNS and LLMNR

    • HTTPS over TCP

    Discovery, Registration, and Control
    NMOS discovery and control according to standards IS-04 and IS-05

    Streaming Formats

    • IPMX

    • Matrox IQ Mode

    • RTP/RTSP

    • SRT (caller, sender and rendez-vous)

    • MPEG2-TS

  • Product Dimensions
    206mm (L) x 185mm (W) x 46mm (H)

    Unit Weight
    Device only: 1.22kg

    Regulatory

    • CE (EU) Class A

    • FCC (US) Class A

    • ICES-003 (Canada) Class A

    • KC (S. Korea) Class A

    • RCM (Aus/NZ) Class A

    • UKCA (UK) Class A

    Environmental Compliance

    • China RoHS

    • EU RoHS

    • REACH

    • WEEE

    Operating Conditions
    0 – 40°C (32–104°F)

  • Hardware Included

    • Maevex MGX E1 Encoder

    • Power supply: 110-240V AC, 12VDC 60W

    Optional Hardware
    ConductIP NMOS-based routing solution (Part #: CDCTIP-MRA2Y)

    Accessories (sold separately)

    • Rackmount kit (Part #: RMK-I9TR-A)

    • Secure cable solution for HDMI (Part #: SK-SLND-4)

    • Angle bracket kit (RMK-6BRKT-A)

    User Interfaces

    • Matrox Central Manager: Included app to discover, update and configure MGX devices

    • Web UI: Main GUI for configuration and settings

    • NMOS IS-04 and IS-05 API: Discovery and routing of IPMX signals

    Warranty

    • Standard warranty: 2 years

    • Extended warranty: Contact a Matrox Video sales representative
