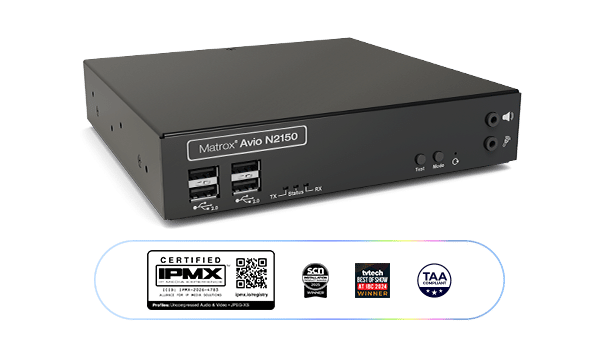

Avio N2150

5K HDMI IP KVM Extender

Matrox Avio N2150 IP KVM extender ensures secure, real-time performance for mission-critical applications that need remote access to computing equipment, delivering unparalleled image quality and support for up to 5K resolution. By leveraging open standards like IPMX, SMPTE 2110, and NMOS, Avio N2150 future-proofs your installation with a scalable, flexible, and easy-to-use IP KVM solution. Designed for seamless integration with evolving networked infrastructures, Avio N2150 is ideal for control rooms, medical applications, broadcast studios, media production, and live events. A TAA compliant SKU is available.

Avio N2150 is part of the Avio 2 Series.

Enquire Us Now
Datasheet
Contact Us
  • Anchor ANSCTRS240V 240cm*180cm 120" Tripod Projector Screen

Key Benefits

High-Performance IP KVM

High-performance video

Achieve multiple performance levels with a single Avio 2 appliance. Deliver uncompressed 5Kp60 4:4:4 video with zero latency over dual 10GbE for high-performance applications, or enable real-time, visually lossless video over 1GbE or 10GbE using Pro AV or optional JPEG XS. Users can switch instantly between multiple source systems for uninterrupted workflows.

Seamless Switching

Instantly switch between multiple sources to keep Operators focused on the task at hand. An intuitive on-screen display (OSD) simplifies source selection, while programmable hotkeys provide fast, efficient switching between Avio 2 transmitters.

Secure and Flexible Deployment

Designed for flexible deployment, a single Avio 2 appliance can be configured as either a transmitter or receiver. The device offers multiple connectivity options, including fiber or copper (1G or 10Gb SFPs), and an optional RJ45 control port with PoE+ for added flexibility. Avio 2 ensures network redundancy with SMPTE ST 2022-7 for reliable operation and supports various configurations, including one-to-one, many-to-one, one-to-many, and many-to-many setups. Robust security features, including AES 128-bit encryption, Microsoft Active Directory® integration, HTTPS, and digital certificate support, help protect data and control system access.

Based on Open Standards

With full IPMX/ST 2110 compatibility, Avio 2 integrates with other IPMX/ST 2110 devices and equipment, optimizing workflows and reducing installation complexity. NMOS open APIs simplify device discovery and connection management, while a standards-based IP KVM approach ensures future-proof installations.

Software and Developer Tools

Easy to use with comprehensive tools for integration:

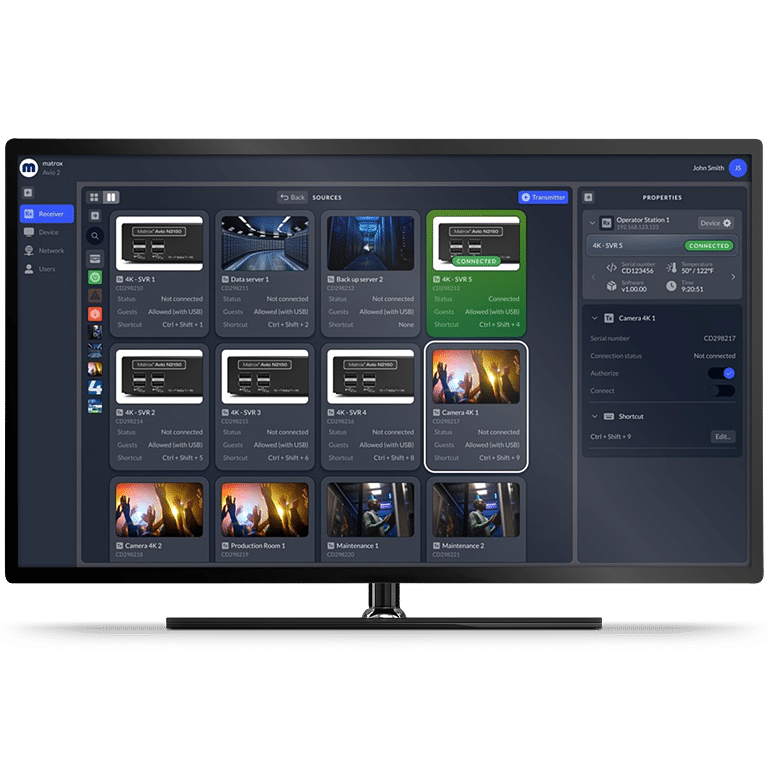

  • Configure and setup devices through the easy-to-use Web UI

  • Streamline firmware updates across multiple devices with Matrox Unified Utility updater tool

  • Customize workflows or build bespoke solutions using Avio 2’s REST API support

  • OEMs can take advantage of Avio 2’s white-label options to provide tailored branding opportunities

Technical Specifications

    • Part Number

      • AV2-N2150

      • AV2-N2150Y (TAA Compliant)

      Form Factor

      • Appliance (1U ½R)

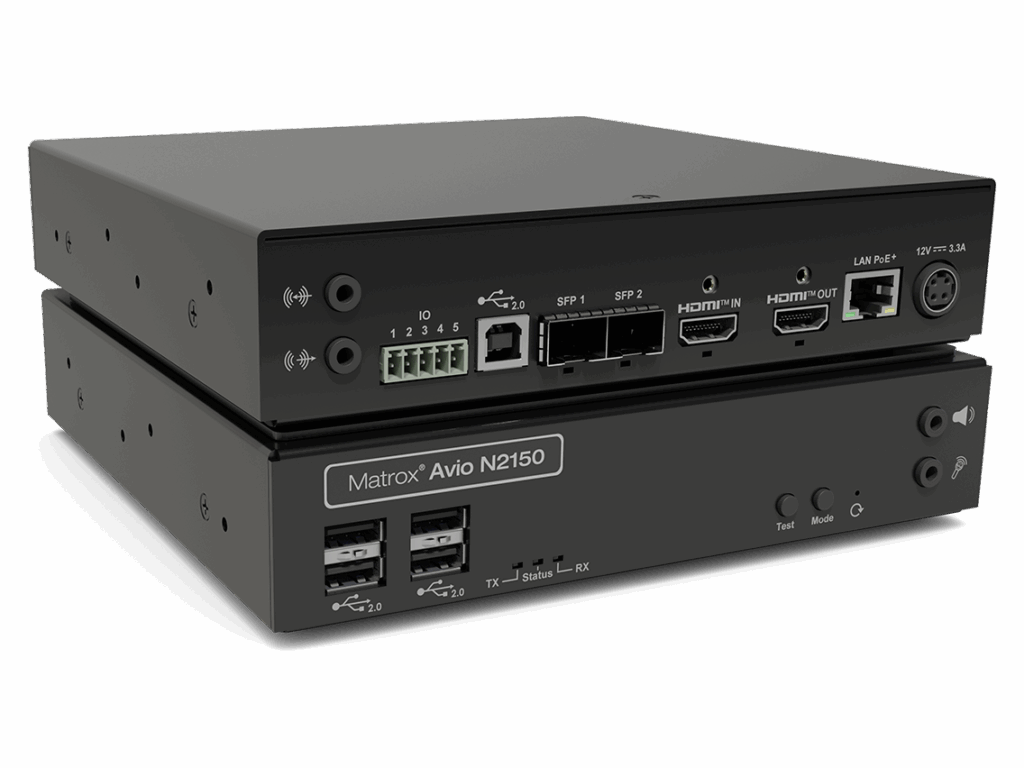

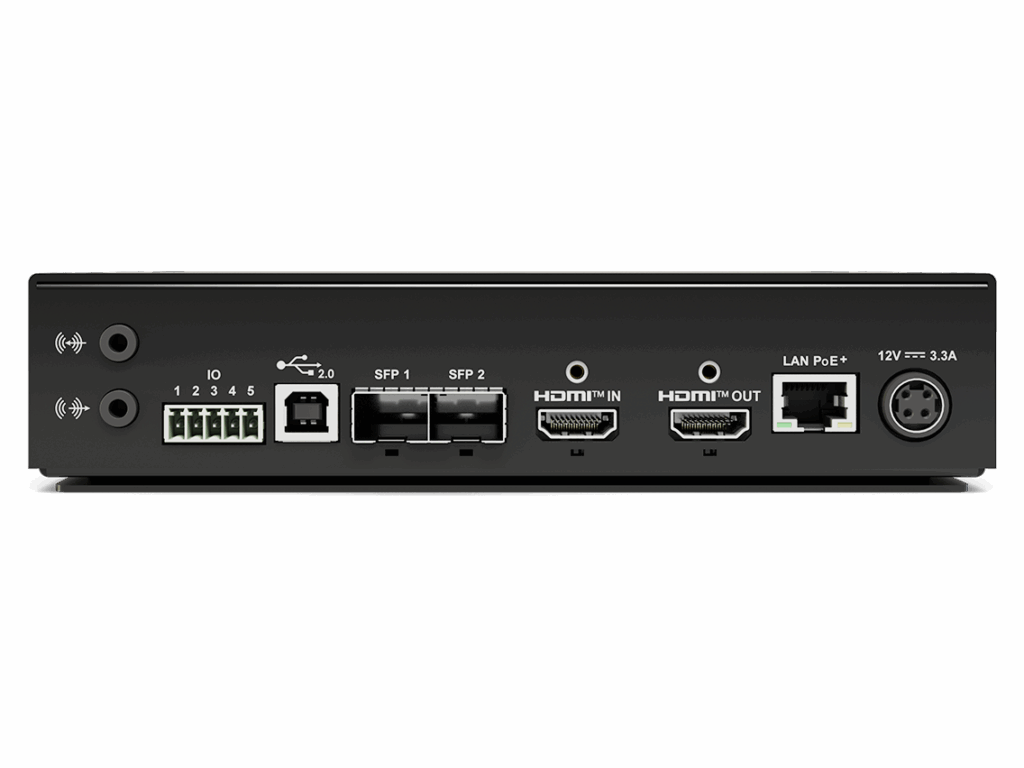

  • Connectors

    Video Input connector

    • Transmitter Mode: HDMI

    • Receiver Mode: N/A

    Video Output connector

    • Transmitter Mode: HDMI zero-latency local pass through

    • Receiver Mode: HDMI

    Audio Input/Output

    • Transmitter Mode: Line in 3.5 mm, line out 3.5 mm

    • Receiver Mode: Line out 3.5 mm, mic in 3.5 mm, headphone out 3.5 mm

    Network Connectors

    • 1x RJ45 LAN control port (1GbE)

    • 2x SFP cages for media and/or control (1GbE or 10GbE)

    USB Port

    • Transmitter Mode:

    • 2x USB2.0 Type A for local keyboard and mouse

    • 1x USB2.0 Type B for host system connection

    • Receiver Mode:

    • 4x USB2.0 Type A

    5-pin Phoenix connector

    • RS232

  • Max video resolution

    • 1920×1080@240Hz 4:4:4

    • 3840×2160@60Hz 4:4:4

    • 4096×2160@60Hz 4:4:4

    • 5120×1440@30Hz 4:4:4

    • 5120×1440@60Hz 4:4:4

    • 5120×2160@30Hz 4:4:4

    • 5120×2880@30Hz 4:4:4

    • All standard desktop GPU resolutions are supported.

    Color space and bit depth

    • RGB 4:4:4 8-bit, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0

    • 8-bit, 10-bit

    • SDR, HDR

    USB support

    • High Speed USB 2.0: Keyboard, mouse, touchscreens, pen tablets, touchscreens, joysticks, and other USB HID devices, smart card/CAC readers, USB 2.0 (full speed) speakers/sound bars, USB headsets

    Audio Support

    • Digital embedded audio (HDMI)

    • Stereo analog audio – 2 channels

    Network Speed

    • 1GbE or 10GbE

    Maximum Distance (point-to-point)

    • Copper SFP:

    • 1GbE RJ45 Cat5e, Cat6 – 100 m (328 ft)

    • Fiber SFP:

    • OM1 (62.5/125µm) multi-mode – 275 m (902 ft.)

    • OM2, OM3, OM4 (50/125µm) multi-mode – 500 m (1804 ft.)

    • OS1, OS2 (9/125µm) single-mode – 10 km (6.20 mi)

    • Fiber SFP+:

    • OM1 (62.5/125µm) multi-mode – 33 m (108 ft.)

    • OM2m, OM3, OM4 multi-mode – 300 m (984 ft.)

    • OS1, OS2 (9/125µm) single-mode – 10 km (6.20 mi)

    • On-screen-display (OSD)

    • Available on the RX side

  • Video

    • Matrox ProAV

    • ISO/IEC JPEG XS (optional upgrade)

    • Designed and optimized for 1 Gbps. Can support lower video bandwidth (<100 Mbps) or scale up for maximum quality (≥2Gbps).

    Audio

    • Uncompressed PCM (~1 Mbps/ch)

  • Network Standard

    • Control Port: 1000 Base-T Ethernet

    • Auto-detect

    • Half/full duplex

    • Media port: 1GbE, 10GbE

    Supported protocols

    • IPMX

    • SMPTE ST 2110 (-10, -20, -21, -22, -30, -31, and -40)

    • SMPTE ST 2059-2, 2059-1

    • SMPTE ST 2022-7

    Routing Scheme

    • Multicast

    • Unicast

    IP Addressing

    • IPv4

    • IPv6

    • DHCP (default) and static IP

    Link Redundancy

    • ST 2022-7

    Link Aggregation

    • Available for uncompressed 4Kp60 (Link redundancy is disabled in this mode)

    Command and Control

    • HTTPS over TCP

    Discovery, registration and control

    • NMOS discovery and control according to standards IS-04 and IS-05 (optional)

    • mDNS discovery

  • Product Dimensions

    • 7.3” (W) × 7.126” (L) × 1.545” (H)

    Unit Weight

    • 820g

    Power Supply Unit

    • External 40W PSU with lockable PSU connector (optional, sold separately)

    PoE+

    • PoE+ IEEE 802.3at

    Cooling

    • Fanless

    • Rackmount kit: (Part #: RMK-19TR-A)

    • Mounting bracket: (Part #: RMK-6BRKT-A)

    • Power supply unit: (Part #: EPS40WKIT-NA, EPS40WKIT-EU, EPS40WKIT-UK, EPS40WKIT-AU, EPS40W-10PK)

    • NRG redundant power supply unit: (Part #: NRG-5-1DB or NRG-5-2DB)

    • KMLync Switch: (Part #: KMLYNC-4Y-NA, KMLYNC-4Y-EU, KMLYNC-4Y-UK, KMLYNC-4Y-AU)

  • JPEG XS codec license: (Part #: AV2-JXS-UPG)

  • Operating conditions

    • Temperature: 0 to 45 degrees Celsius

    • Altitude: 650 hPa (3,580 m) to 1,013 hPa (0 m)

    • Humidity: 20% to 80% non-condensing

    Storage conditions

    • Temperature: -40 to 70 degrees Celsius

    • Altitude: 192 hPa (12,000 m) to 1,020 hPa (-50 m)

    • Humidity: 5% to 95% non-condensing

  • EMC/EMI device class

    • Class A

    EMC/EMI compliance

    • CE (EU)

    • FCC (USA)

    • ICES-003 (Canada)

    • KC (Korea)

    • RCM (Aus/NZ)

    Environmental compliance

    • China RoHS

    • EU RoHS

    • REACH

    Warranty

    • Three-year limited warranty with free online or telephone support. Extended warranty available.
