Connection
HDMI Type A

Bandwidth
18 Gbps

Resolution
480 / 720 / 1080p, 4K

HDMI Version
2.0, backwards compatible with 1.4

HDCP Version
1.4 / 2.2

Cable
Fiber/Copper, 50/125 µm multimode fiber

Audio Return Channel
Included

Operating Temperature
23°F to 167°F (-5°C to 75°C)

Tensile Strength
100 N to 300 N

Crush Loads
100 N to 500 N (500 N for instantaneous load)

Dynamic Minimum Bend Radius
10 mm (0.4 in)

Minimum Duct Diameter
25 mm (1.0 in) (non-bendable)

Minimum Cable Diameter
4.1 mm (0.2 in)

1. Before wiring, test the signal to ensure it is transmitting properly.

2. Ensure you differentiate between the input and output ports when using the Extra Long HDMI Cable, as it supports one-way transmission only.

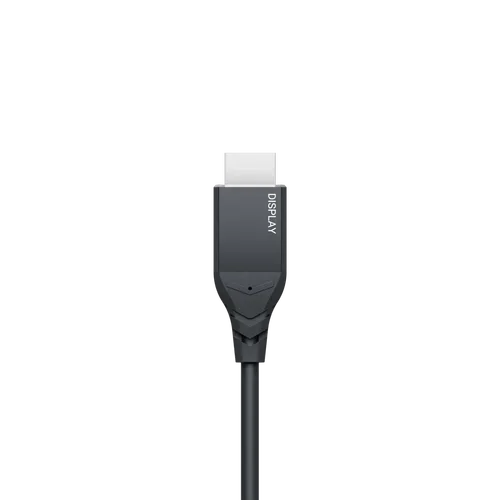

3. Display end: Connect to a display device, such as a monitor or TV, or to the Insta360 Connect HDMI Input port.

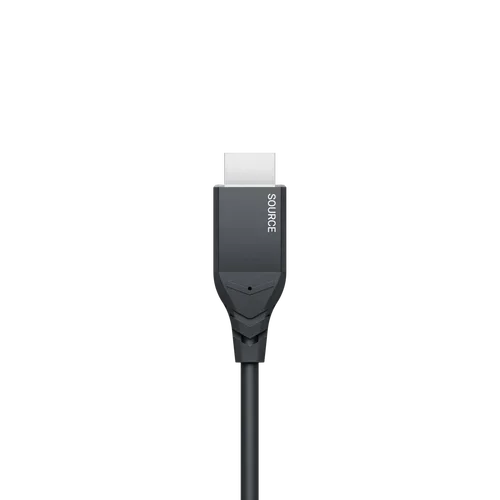

4. Source end: Connect to a signal source, such as a computer, or to the Insta360 Connect HDMI Output port (HDMI 1/2 port).

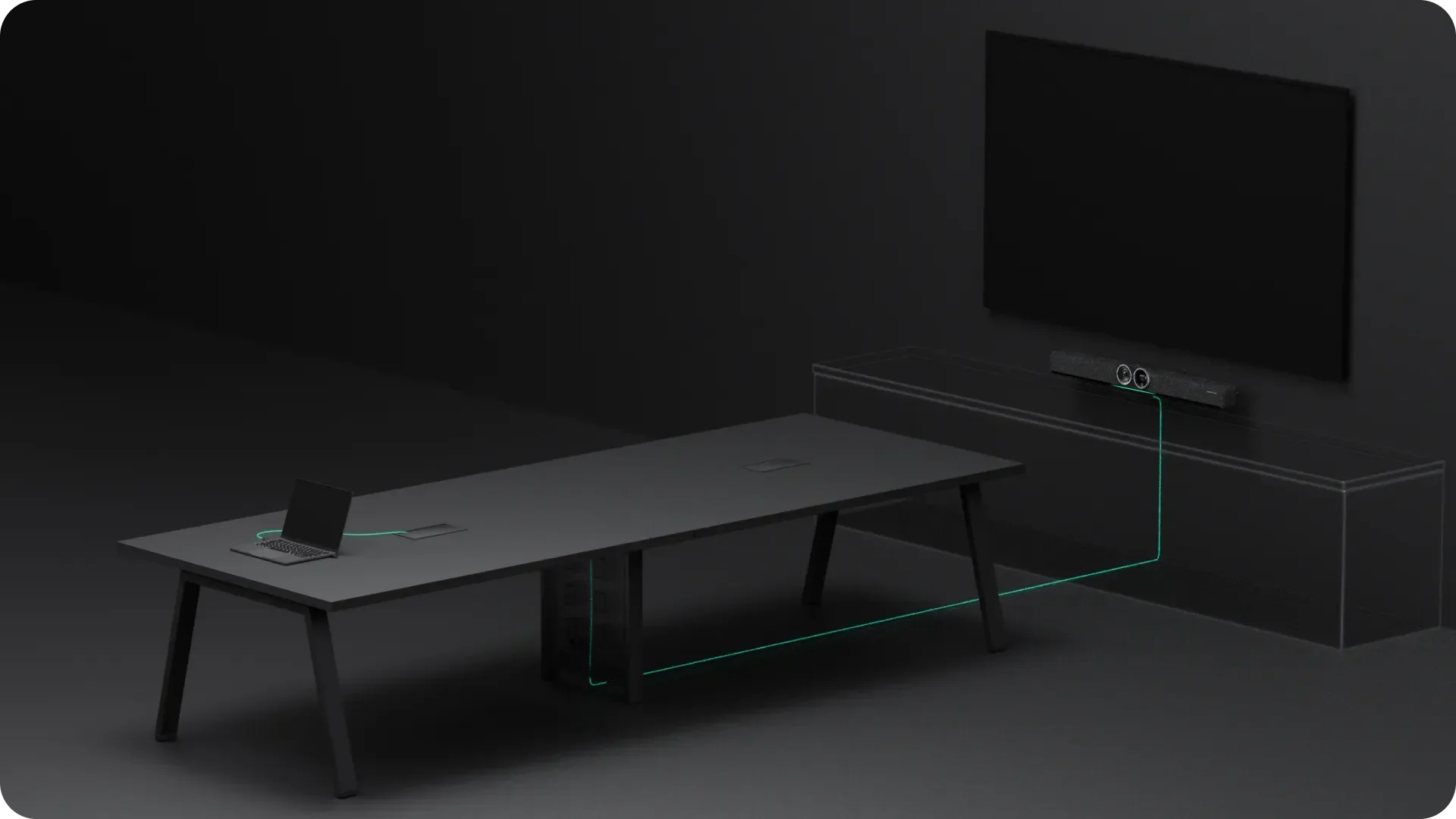

5. When wiring, use the wire puller at the front and avoid pulling the cable or connector directly.

6. The connector contains a built-in chip. Avoid drops and impacts, and always hold the connector when plugging or unplugging the cable.

7. Avoid heavy or sharp objects near the cable to prevent damage, and do not pull or tie it forcefully.
