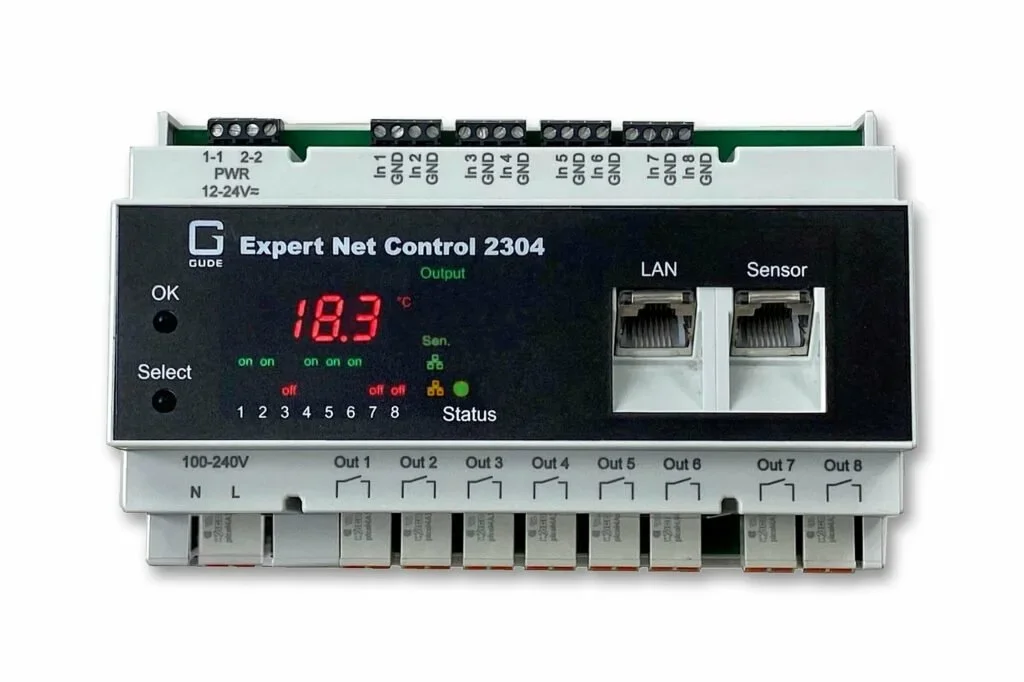

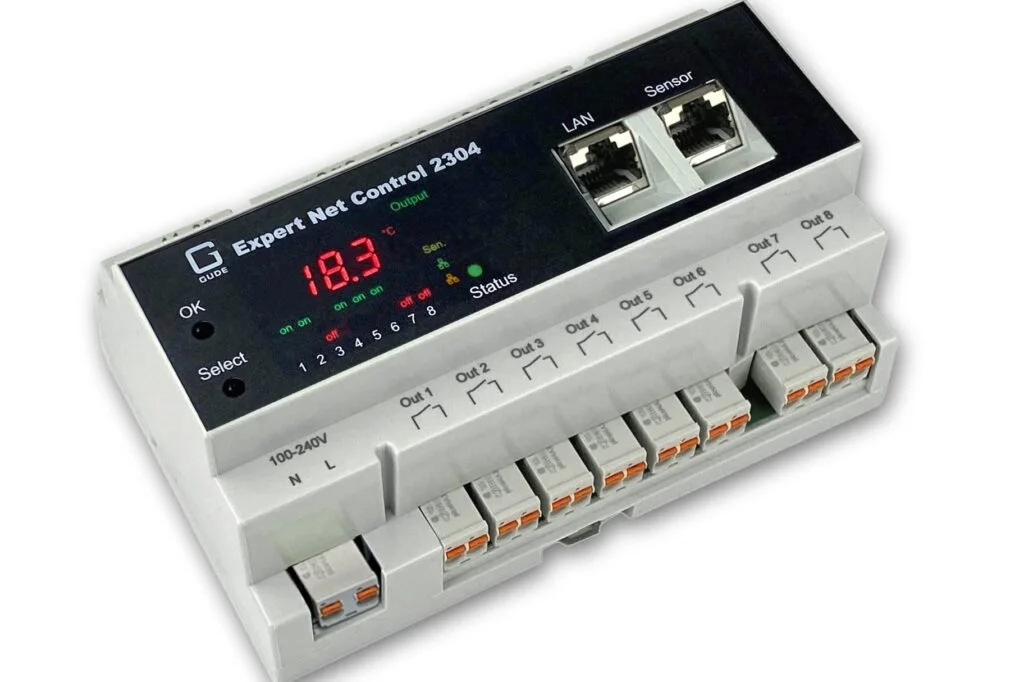

IP relay control with 8 channels and 8 signal inputs

Expert Net Control 2304-1 for increased operational reliability and energy efficiency in DIN rail installations

Enquire Us Now

Top Features:

  • Demonstrably fewer and shorter downtimes of your critical IT and AV infrastructure

  • More control through remote access to switchable relay outputs

  • Detect AV and IT problems at an early stage: Proactive environmental monitoring and configurable alarms

  • Integrate anywhere: Quickly and easily integrate anywhere with API interface: REST API, https, SNMP, Telnet and MQTT

  • Protection against physical hazards with connected smoke detectors, leakage sensors and door contacts

  • Technical Details

    • Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH

    • Housing form: for mounting rail with top hat profile

    • LxHxD: 143 x 65 x 90 mm

    • Weight: approx. 400 g

    • Operating temperature: 0-45 °C

    • Storage temperature: -20 – 70 °C

    • Relative humidity: 0 – 95 % (non condensing)

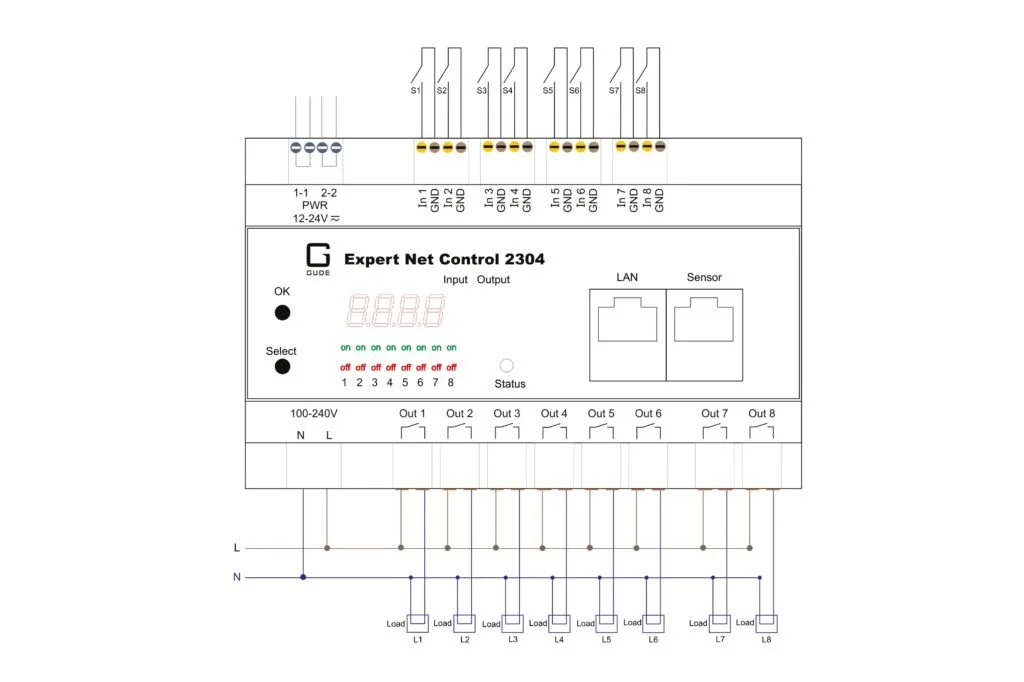

    Electrical Connections

    • 1 Mains connection with 230 V AC or 30 V DC (terminal clamps)

    • 8 switching outputs (terminal clamps)

    • 8 passive signal inputs (terminal clamps)

    • 1 Ethernet connector RJ45 (10/100 Mbit/s)

    • 1 connector (RJ45) for plug-&-play sensors

    Order code

    • 2304-1

    Scope of delivery

    • Expert Net Control 2304-1

    • Quick start guide

  • Technical Details

    • Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH

    • LxWxH: 10.5 x 9 x 7 cm

    • Weight: approx.  300 g

    • Operating temperature: 0-50 °C

    • Storage temperature: -20 – 70 °C

    • Relative humidity: 0 – 95 % (non condensing)

    Electrical Connections

    • Industrial clamp for power supply with 230 V AC or 24 V DC

    • 4 switchable outputs (industrial clamp, 3-fold)

    • 8 passive signal inputs (industrial clamp, 2-fold)

    • 1 sensor connector (RJ45) for plug-and-play sensors or serial interface (RS232)

    • 1 Ethernet connector RJ45 (10/100 Mbit/s)

    Order code

    • 2302-1

    Scope of delivery

    • Expert Net Control 2302-1

    • Quick start guide

    • Support for: HTTP/HTTPS (REST API) JSON, SNMP, Modbus TCP, Telnet, SSH und MQTT 3.1.1

    • Overview of GUDE’s comprehensive API (Application Programming Interface)

    • HTTP/HTTPS, E-Mail (SSL, SSH, STARTTLS)

    • Configuration and control via Telnet and SSH

    • NTP function can be activated

    • Supports Syslog

    • Supports RADIUS authentication

    • 802.1X port authentication

    • SNMPv1, v2c, v3 (Get/Traps)

    • TLS 1.1, 1.2, 1.3

    • IPv6-ready

  • Manual

    Product Brief

    Block Diagram

    Quick start guide

    3D model

    CE Declaration

    EU Data Act Notice

    PSTI Declaration

    Firmware ENC 2304

    Windows Config Tool

    Linux System Tool

  • Locations

    • Industrial environments: Production facilities, solar installations, manufacturing rooms, warehouses or test labs

    • IT installations: distributed infrastructures, equipment rooms, KVM, network closets, server racks, 19″ cabinets, data centers or server rooms

    • AV environments: Huddle rooms, conference rooms, theaters, cinemas, marine environments, smart home, meeting rooms, courtrooms, lecture halls in universities, LED walls or digital signage systems (DooH)

    Application

    • Switching and control of IT devices in solar installations and switching cabinets

    • Switching of network or media devices by media controls of well-known AV manufacturers (AMX, Atlona, Barco, Crestron, Extron, Neets, QSC, Utelogy)

    • Remote reboot of PCs, servers, routers and switches

    • Reduction of power consumption and thus lower CO2 emissions from standby devices

    • Network monitoring with with integration in monitoring software (PRTG, Icinga, Nagios, Power IQ, Tivoli)

    • Environment monitoring with plug-and-play sensors (temperature, humidity and air pressure)
