• Remote switching of 3 relay outputs

• Detailed energy measurement per output

• Connector for plug-and-play sensors

• Fast and easy mounting on DIN rail

• NTP function can be activated

• Special High-Inrush relays prevent sticking of relay contacts during witch on pulse peaks

Switching functions

• 3 switchable, potential-free relay outputs with 16 A switching capacity

• Each power port can be switched via HTTP(S), SNMP, ModbusTCP or command line interface via Telnet, SSH, MQTT and serial interface

• Automatic switching of relay outputs depending on sensor thresholds or inputs possible

• Programmable switch-on/switch-off sequence

• Simultaneous switching on of several switching outputs is prevented by automatic latency of 1 second

• Output states are indicated by two-color LEDs on the front panel

• Relays have high contact reliability even with very small loads

• Self-healing function thanks to 3-channel watchdog: Each power port can be assigned its own Watchdog (ICMP/TCP), which initiates an automatic restart if necessary

Metering functions

• Power consumption metering (kwH) with 2 energy counters per output: one counter counts consistently, the other counter is resettable

• Metering of current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)

Security

• 1 connector for combined plug-and-play sensors (temperature, humidity and air pressure) to prevent often occurring physical hazards like overheating and increased humidity or air pressure

• Generation of status messages and alarms (e-mail, syslog, SNMP traps MQTT, SSH, Telnet)

• Encrypted e-mails (SSL, STARTTLS)

• Access protection by IP access control

• Support for the 802.1X standard for port authentication in the network

• Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH

• Password protected access

Operation

• Easy-to-read LED display for displaying total current, IP address and sensor values

• Firmware update via Ethernet during operation (no restart required)

• Simple and flexible configuration via web browser, Windows or Linux program

• Dynamic assignment of an IP address via DHCP or manual assignment of static IP address

• Rapid commissioning thanks to free and reliable drivers from our technology partners

Technical Details

• Measurement of key electrical parameters: current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)

• Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH

• LxWxH: 10.5 x 9 x 7 cm

• Weight: approx.  280 g

• Operating temperature: 0-50 °C

• Storage temperature: -20 – 70 °C

• Relative humidity: 0 – 95 % (non condensing)

Electrical Connections

• Terminal clamps for power supply with 12-24 V AC/DC voltage

• 3 switchable outputs (industrial clamp, 3 fold)

• 1 sensor connector (RJ45) for plug-and-play sensor

• 1 Ethernet connector RJ45 (10/100 Mbit/s)

Order code

• 2314-1

Scope of delivery

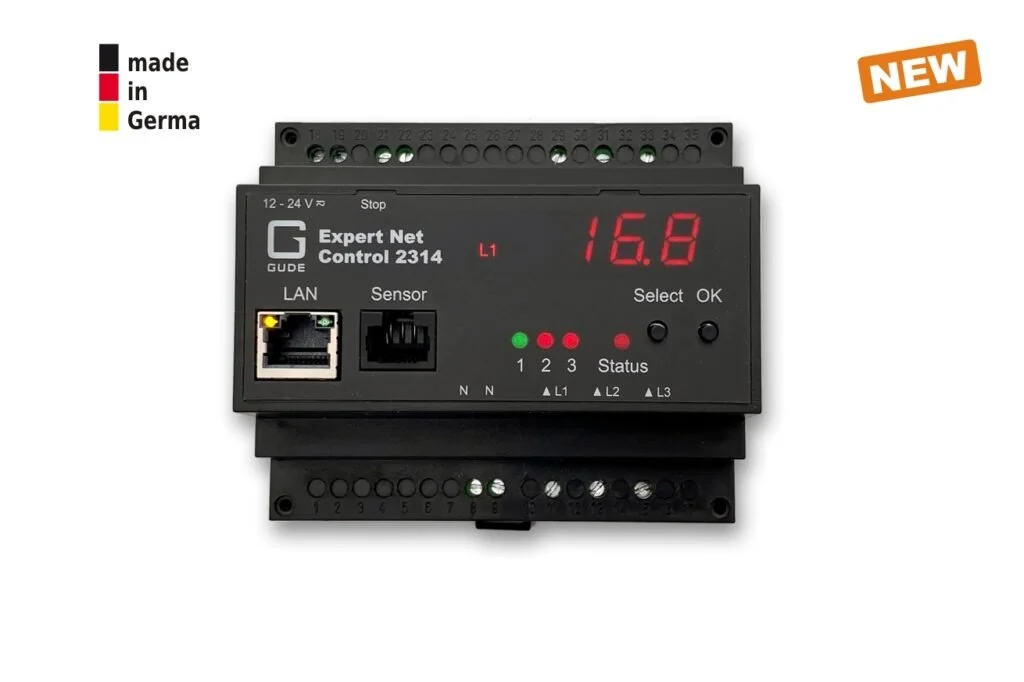

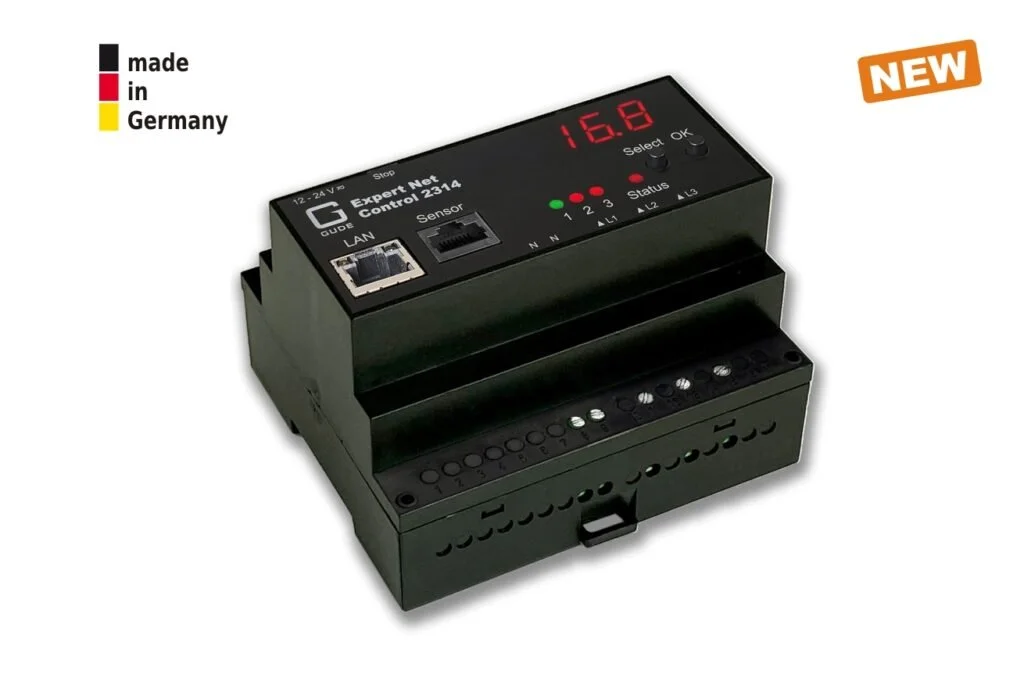

• Expert Net Control 2314-1

• Quick start guide

• Support for: HTTP/HTTPS (REST API) JSON, SNMP, Modbus TCP, Telnet, SSH und MQTT 3.1.1

• Overview of GUDE’s comprehensive API (Application Programming Interface)

• HTTP/HTTPS, E-Mail (SSL, SSH, STARTTLS)

• Configuration and control via Telnet and SSH

• NTP function can be activated

• Supports Syslog

• Supports RADIUS authentication

• 802.1X port authentication

• SNMPv1, v2c, v3 (Get/Traps)

• TLS 1.1, 1.2, 1.3

• IPv6-ready

Manual

Product Brief

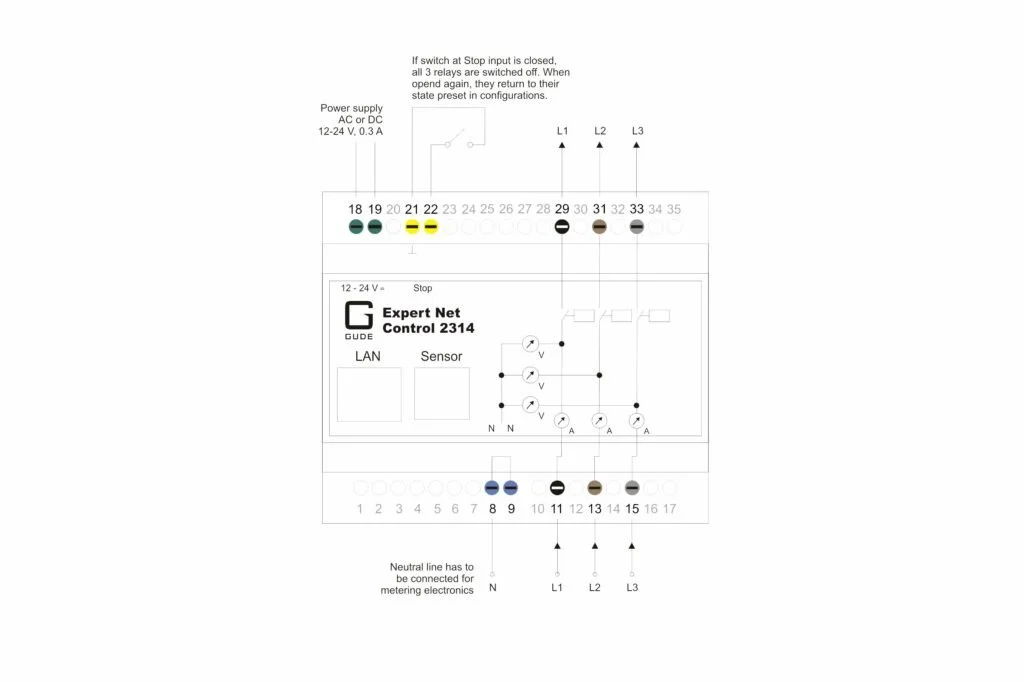

Block Diagram

Quick start guide

CE Declaration

PSTI Declaration

Firmware ENC 2314-1

Windows System Tool

Linux System Tool

Locations

• Industrial environments: Production facilities, solar installations, manufacturing rooms, warehouses or test labs

• IT installations: distributed infrastructures, equipment rooms, KVM, network closets, server racks, 19″ cabinets, data centers or server rooms

• AV environments: Huddle rooms, conference rooms, theaters, cinemas, marine environments, smart home, meeting rooms, courtrooms, lecture halls in universities, LED walls or digital signage systems (DooH)

Application

• Real-time environment monitoring via plug-and-play sensors

• Monitoring of operation-critical technical rooms via query of addtional plug-and-play sensors

• Remote control over IT devices in server room, data center and IT rack

• Network monitoring via integration with monitoring software (PRTG, Icinga, Nagios, Power IQ, Tivoli)
