6-fold switched Power Sequencer safety socket Type F

Expert Power Sequencer 8112 for more operational safety by sequential switching in 19-inch installations

Enquire Us Now

Top Features:

  • Demonstrably fewer and shorter downtimes of your critical IT and AV infrastructure

  • Increased operational safety by avoiding excessive inrush currents, e.g. in amplifiers, media technology installations and LED walls

  • Increased energy efficiency (Green IT and AV): Reduction of electricity costs and CO2 emissions

  • Effectively troubleshoot inrush problems: Typical popping noises when switching on critical devices such as audio amplifiers and loudspeakers no longer occur

    • Sequential switching of up to 6 devices by simply pressing a button

    • Switching interval can be configured individually

    • Avoid critical inrush currents

    • Effectively reduce electricity costs

    • Integrated overvoltage protection type 3

    • Minimize noise through mains filter

    • Simple and quick mounting due to integrated mounting brackets

    Switching functions

    • 6 power ports switchable via switch on the device or by external button

    • Sequential switching on and off of connected loads with a delay of 3 seconds between adjacent outputs

    Security

    • Current peaks during simultaneous switching operations (high inrush) and triggering of upstream fuses are prevented

    • Integrated type 3 overvoltage protection (according to EN61643-1) prevents damage to the device and connected loads

    • Integrated mains filter prevents interference currents and thus eliminates loss of signal quality in connected devices such as loudspeakers, amplifiers and beamers

    Operation

    • Switching intervals (ON/OFF) can be set individually for each power port

    • Jack plug connector allows connection of external switch or I/O contacts for remote control of the switching routine

    • Low energy consumption

  • Technical Details

    • 19 inch, 1 HU

    • LxWxH: 43.9 x 11.2 x 4.4 cm (without mounting brackets)

    • Weight: approx. 2.1 kg

    • Cable length: 2 m

    • Operating temperature: 0-50 °C

    • Storage temperature: -20 – 70 °C

    • Relative humidity: 0 – 95 % (non condensing)

    Electrical Connections

    • 1 power supply safety soket type F (max. 16 A, 230 V)

    • 6 power ports safety socket type F (max. 10 A)

    • Jack plug connector for external switch or I/O contacts

    Order code

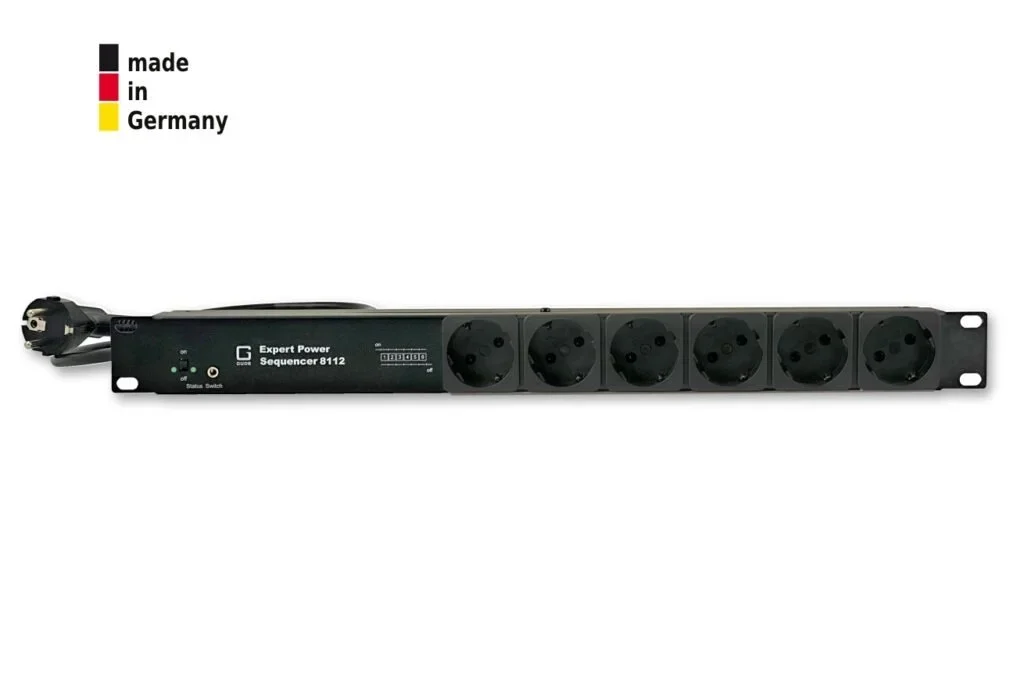

    • 8112-4: 6x safety socket type F, OVP, mains filter

    Scope of delivery

    • Expert Power Sequencer 8112-4

  • Manual

    Product Brief

    Layout

    CE Declaration

  • Locations

    • AV environments with audio components such as conference rooms, theaters, auditoriums and small meeting rooms

    • Installations for display and LED walls

    • IT environments e.g. networks and server racks

    • AV installations e.g. smart home with amplifiers, speakers and beamers

    Application

    • Increasing operational reliability by avoiding excessive inrush currents, e.g. in amplifiers, media technology installations and LED walls

    • Saving electricity costs by switching off devices with high standby consumption, e.g. receivers, servers, external hard drives, displays and audio amplifiers

    • Critical devices such as an audio amplifier are switched on last and switched off first. The typical and unpleasant popping noises, which can also damage speakers and amplifiers, are a thing of the past.

    • The jack plug connector allows the connection of an external push button and enables the control outside of a 19 inch cabinet
