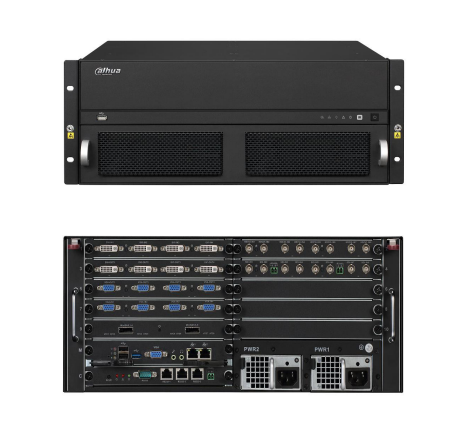

DSCON3000-4U

Multi-screen Controller

Enquire Us Now
Download Datasheet
Contact Us

Features:

  • 19” standard 4U ATCA industry box

  • High speed passive rear panel design, reliable and stable

  • Easy and flexible configuration with pluggable card module design

  • 160ch@1080P or 640ch@D1 signal decoding (full configured)

  • Redundant power optional and smart temperature controlled fan

  • FPGA array framework, built in ultrahigh bandwidth switch matrix, high image processing capacity, flexible data exchange

  • Powerful main control chip inside, ultrahigh data processing capacity and good extensibility

  • PCI-E bus, high system bandwidth

  • Support analog/digital video signals input and matrix output

  • Support non-compressed digital signal encoding output

  • 2 RJ-45 gigabit network ports for matrix control, preview

  • Remote cast analog/digital video onto the video-wall

  • Remote reboot/upgrade/default setting and etc operations

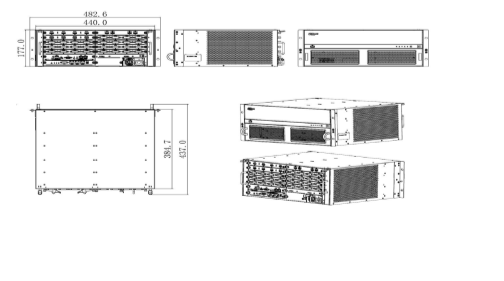

Dimensions (mm/inch)

Technical Specification

  • Model

    DSCON3000-4U

  • Main Processor

    Powerful microprocessor

    Operating System

    Embedded LINUX

    Bus

    PCI-E

    Slot

    12 (2 Main Control Board Slots, 10 Video Function Board Slots)

    Mainframe

    Power module (redundant power optional), main control board, control board, PCI-E bus rear panel, smart temperature-controlled fan

    Video Input Card

    Max. 10

    Video Output Card

    Max. 10

  • HDMI Video Input (VI0201UH-DC3000)

    Interface

    • 2-channel HDMI 1.4

    • Supports HDCP

    Access Capability

    • 2-channel @ 4K

    • Downward compatibility supported

    HDMI Video Input (VI0401HH-DC3000)

    Interface

    • 4-channel HDMI 1.3

    • Supports HDCP

    Access Capability

    • 4-channel @ 1080P

    • Supported resolutions:

      • 1080P

      • 720P

      • UXGA

      • SXGA+

      • SXGA

      • XGA

      • SVGA

      • VGA

    HDMI Video Input (VI0801HH-DC3000)

    Interface

    • 8-channel HDMI 1.4

    • Supports HDCP and I-SYSTEM

    Access Capability

    • 8-channel @ 1080P

    • Supported resolutions:

      • 1080P

      • 720P

      • UXGA

      • SXGA+

      • SXGA

      • XGA

      • SVGA

      • VGA

    DVI Video Input (VI0401HD-DC3000)

    Interface

    • 4-channel DVI-I

    • Supports VGA/HDMI 1.3 with converter

    Access Capability

    • 4-channel @ 1080P

    • Supported resolutions:

      • 1080P

      • 720P

      • UXGA

      • SXGA+

      • SXGA

      • XGA

      • SVGA

      • VGA

    HDCVI Video Input (VI0801HC-DC3000)

    Interface

    • 8-channel BNC

    Signal Format

    • HDCVI (Audio / Video / Control)

    Access Capability

    • 8-channel @ 1080P

    3G-SDI Video Input (VI0401HS-DC3000)

    Interface

    • 4-channel BNC

    Signal Format

    • 3G-SDI (2.97 Gbps)

    Access Capability

    • 4-channel @ 1080P

    • Downward compatibility supported

    HD-SDI Video Input (VI0801HS-DC3000)

    Interface

    • 8-channel BNC

    Signal Format

    • HD-SDI (1.485 Gbps)

    Access Capability

    • 8-channel @ 1080P

    • Downward compatibility supported

    CVBS Video Input (VI3201FB-DC3000)

    Interface

    • 2-channel DVI-D

    • 2 BNC interface braided lines (16-in-1)

    Signal Format

    • PAL

    Access Capability

    • 32 channels @ 960H or D1

  • Transfer Protocol

    • TCP

    • UDP

    • RTP

    • RTSP

    • RTCP

    Supported Devices

    • IPC

    • NVR

    • EVS

    • Other compatible devices

    Video Resolution

    • 4K

    • 1080P

    • UXGA

    • 720P

    • D1

    • HD1

    • 2CIF

    • CIF

    • QCIF

  • HDMI Output (VO0401HH-DC3000)

    Interface

    • 4-channel HDMI 1.3

    Split

    • Maximum 32 layers

    HDMI Output (VO0801HH-DC3000)

    Interface

    • 8-channel HDMI 1.3

    Split

    • Maximum 32 layers

    DVI Output (VO0401HD-DC3000)

    Interface

    • 4-channel DVI-D

    Split

    • Maximum 32 layers

    3G-SDI Output (VO0401HS-DC3000)

    Interface

    • 4-channel BNC

    Split

    • Maximum 32 layers

    HD-SDI Output (VO0801HS-DC3000)

    Interface

    • 8-channel BNC

    Split

    • Maximum 32 layers

  • HDMI Output (VO0405UH-DC3000)

    Interface

    • 4-channel HDMI 1.4

    Split Modes

    • 1

    • 4

    • 9

    • 16

    • 32

    • Free split

    Decoding Capability

    • 2ch @ 12MP (15fps)

    • 4ch @ 4K (25fps)

    • 16ch @ 1080P (25fps)

    • 32ch @ 720P (25fps)

    • 64ch @ D1 (25fps)

    • Supports H.265

    Output Resolution

    • 3840 × 2160 @ 30fps

    • 1920 × 1080 @ 60fps

    • 1600 × 1200 @ 60fps

    • 1400 × 1050 @ 60fps

    • 1366 × 768 @ 60fps

    • 1280 × 1024 @ 60fps

    • 1280 × 720 @ 60fps

    • 1024 × 768 @ 60fps

  • Video Input

    • Analog Camera

    • Digital Camera

    • IPC

    • NVR

    • EVS

    • Other compatible devices

    IP HD Matrix Switch

    • 1024 IP inputs

    • 160 channels @ 1080P

    • 320 channels @ 720P

    • 640 channels @ D1

  • VideoWall Splicing

    Splicing

    • Supports video wall splicing (up to 80 LCD display units)

    Video Wall Functions

    • Splicing

    • Zoom

    • Merge

    • Roam

    • Overlay

    Input Source

    • HD

    • SD

    • Digital

    • Analog

    • Hybrid input supported

    Output Port

    • HDMI

    • DVI-D

    Control Mode

    • PC Client

    • Local GUI

    • Network

    • Keyboard

    • iPad

  • Interface

    • 2 × RJ-45 ports (10/100/1000M)

    Serial Port

    • 4 × RS232 ports (1 DB9, 3 RJ45) for console and control

    • 1 × RS485 port

    USB

    • 3 × USB 2.0

    • 1 × USB 3.0

  • Power Supply

    • 115V–230V AC

    • 47Hz–63Hz

    • Redundant power optional

    Power Consumption

    • 90W (Minimum System)

    • 360W (Full Configuration)

    Working Environment

    • Temperature: -10°C to +55°C (14°F to 131°F)

    • Humidity: 10%–90% RH

    • Pressure: 86–106 kPa

    Dimensions

    • 4U

    • 482.6 × 437 × 177 mm (19 × 17.2 × 6.97 in) (W × D × H)

    Weight

    • ≤20 kg (44.09 lb) (Full Configuration)
