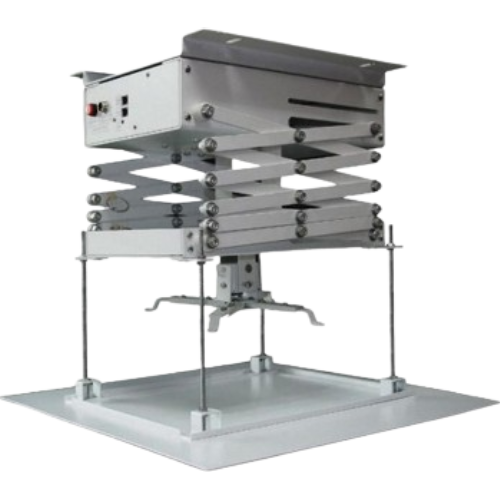

Anchor Projector Lift B570-AS
B5 Series ELECTRIC MOTORIZED PROJECTOR LIFT
Features
Full choices for vertical travel from 1.5M to 10M
Manual & Remote Control with RS232/RS485 interface
CE Approval, ROHS Certified and ISO standard
Imported electromagnetic braking AC/DC motor
Heavy duty steel frame and anti-scratch powder coating
Easy Installation, Smooth, Quiet and Robust performance
Integrated cable management
Hardware and universal projector mount enclosed
Prompt automatic up/down/stop control by remote
Warranted for one year against defects in materials and workmanship
Specifications
Full choices for vertical travel from 1.5M to 10M
Exterior dimension (WxDxH): 550x520x600
Ceiling Cover: 650×650
Min height between the cement and ceiling: 1100mm
Max projector size : 550x500x230
Max running distance (with body height): 7000mm
Net Weight: 61kg
Load Capacity (kg): 90kg
Power: 120W
Rated Voltage: 110-220V

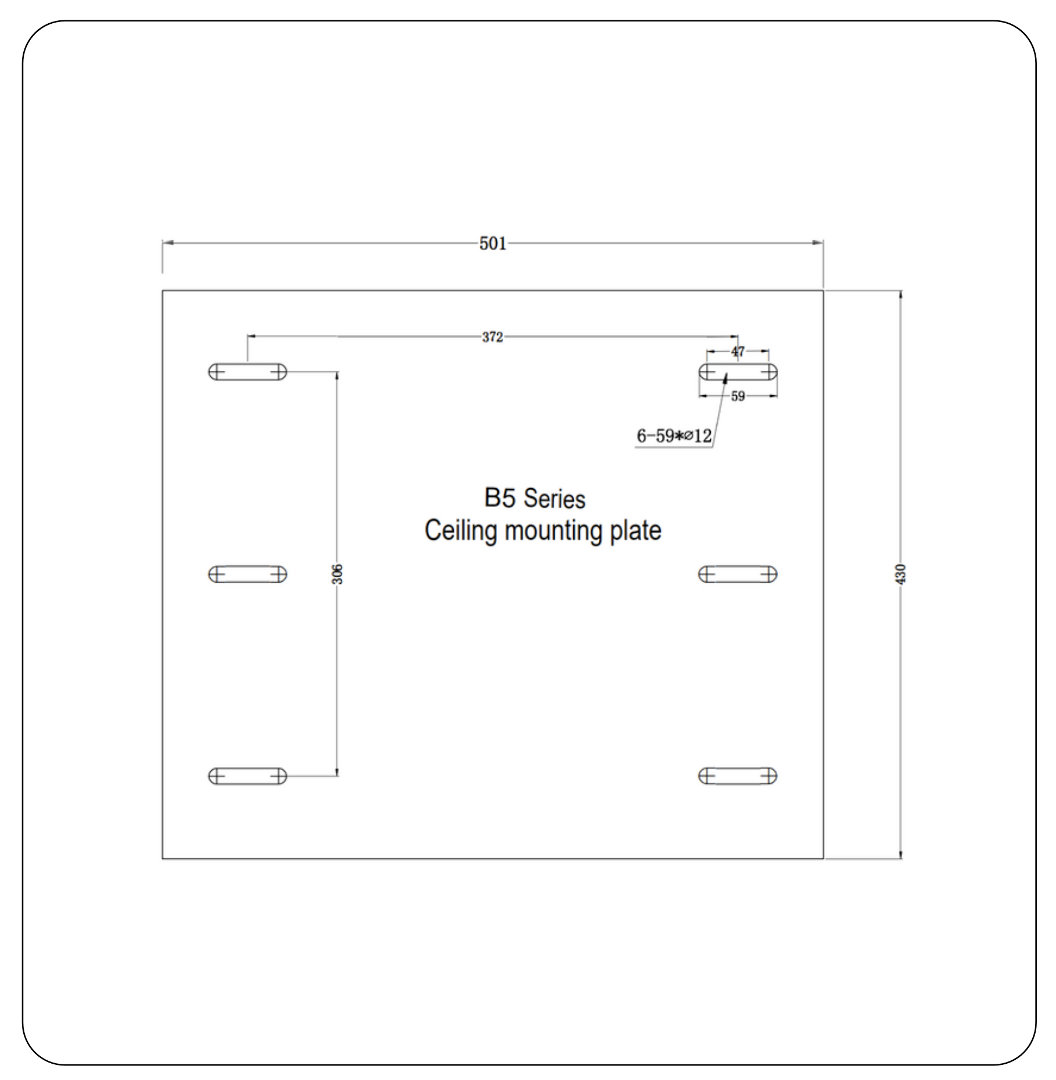

Mounting Dimensions
