SC-TAB10-IPAD

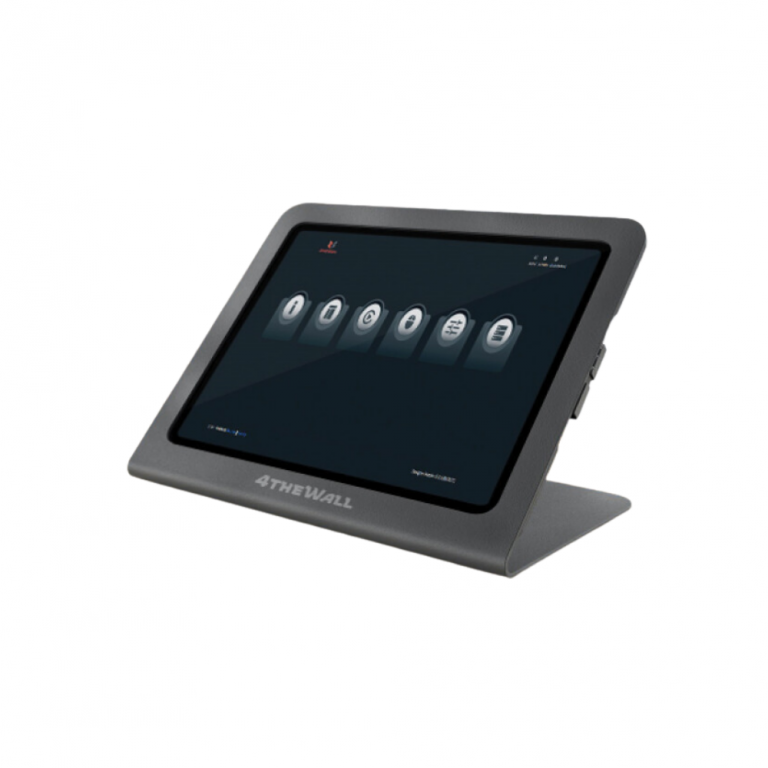

The 4TheWall IOS Touch Screen Control Panel is a high-performance control interface designed to enhance interactive control and management in various professional environments. Built on a powerful A14 Bionic chip architecture and running the IOS operating system, this touch screen panel offers superior processing capabilities, extensive memory, and storage, making it an ideal solution for multi-media conference rooms, multi-functional halls, training centers, exhibition centers, broadcasting studios, and more.

Enquire Us Now
Contact Us

    • 10.9″ Touch screen control panel

    • Resolutions 1280 x 800 pixel

    • Aspect ratio 16:10

    • 1 GB POE Network port

    • Desktop / Table-top – Support POE function (802.3af Class 3)

    • Support POE function (802.3af Class 3)

  • Technical Specifications

    • CPU: A14 Bionic Chip

    • Operating System: iOS

    • Flash Memory: 64 GB

    • Resolution: 1080p (16:10 Aspect Ratio)

    • Touch Screen: 10.9" Retina Touch Screen

    Connectivity

    • LAN: 1 × 10/100/1000 Mbps RJ45 Ethernet Port with PoE Support

    • Wi-Fi: Supported

    • Transmission Distance: Up to 100m (CAT5e/CAT6/CAT6A/CAT7)

    Management & Control

    • TCP/IP

    Environmental

    • Working Temperature: 0°C to 35°C

    • Humidity Range: 20% to 90% RH (Non-Condensing)

    • Storage Temperature: -20°C to 45°C

    Physical

    • Mounting: Desktop / Table-Top

    Protection

    • ESD Protection:

    • ±8kV Air-Gap Discharge

    • ±4kV Contact Discharge

    Certifications

    • CE

    • FCC

    • UL

    Package Contents

    • 1 × iOS Touch Screen Control Panel (Wall-In)

  • SC-TAB10-IPAD Datasheet
