Features and Scenarios

  • True 4K Video

    True 4K Video

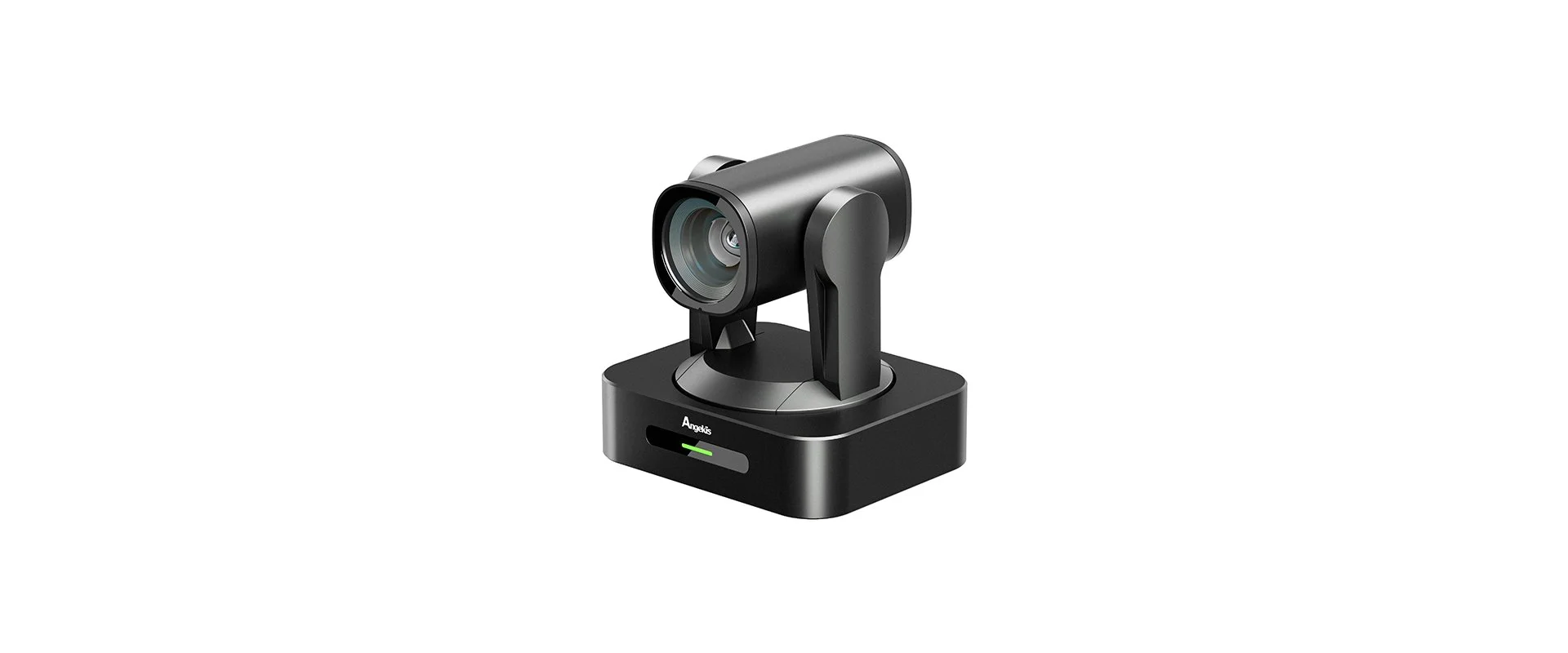

    The Saber X offers 4K Ultra High Definition video, running at framerates up to 60fps. Its 1/1.8-inch, 12MP SONY CMOS Image Sensor is state of the art, and ensures high resolution, excellent color, and smooth video in all kinds of situations.

  • Full Connectivity

    Full Connectivity

    A full range of connectivity options (IP / 3G-SDI / HDMI 2.0 / USB 2.0) gives you the versatility you need, in both production and installation. Add in simultaneous output capabilities for the ultimate livestreaming experience.

  • 30X Optical Zoom

    30X Optical Zoom

    Enjoy crystal clear video at extreme ranges. Perfect for the largest and most demanding recording environments, 30X Optical Zoom gets you up close and personal while maintaining lossless image quality.

  • Audio Line In

    Audio Line In

    A 3.5mm Line In Audio input and support for HDMI, SDI, and IP Audio Out gives you the versatility you need in your AV integrations.

  • NDI®|HX Available

    NDI®|HX Available

    The Saber X is available in an optional NDI®|HX version. Enjoy high efficiency, low-latency streaming with this advanced IP streaming protocol, as well a other benefits like simple integration and access to the full NDI Toolkit. (Note: NDI® is a registered trademark of Vizrt Group)

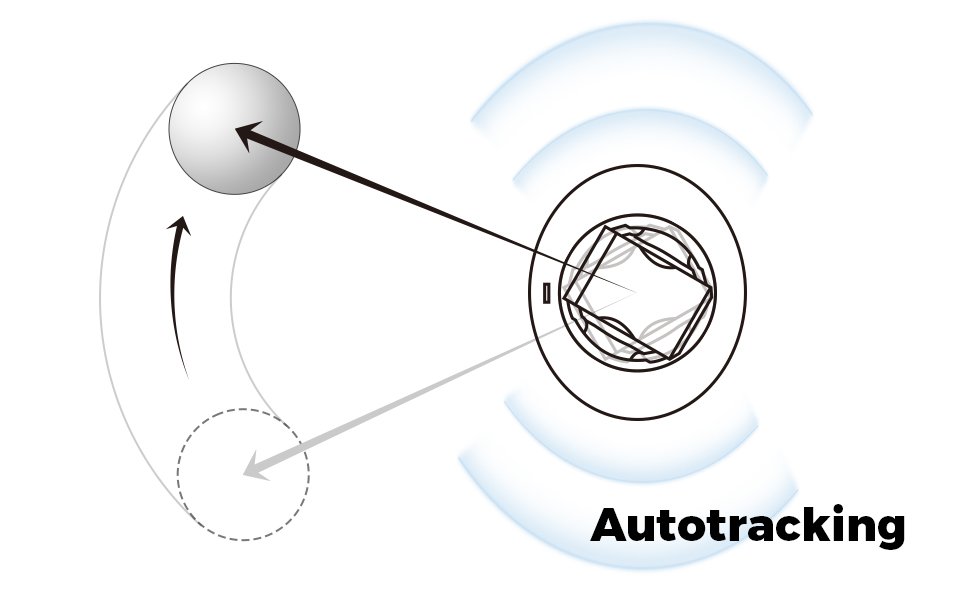

  • Advanced Autotracking

    Advanced Autotracking

    The Saber X comes with advanced autotracking capabilities onboard. Using state of the art algorithmic processing to analyze shape and motion, our smart technology creates a seamless autotracking experience. Standard on all units produced after 25 August 2023.

Download Resources

Product Specifications

  • ANG2-31UHD-01

  • 1/1.8 inch high quality, 12MP CMOS Sensor

  • HDMI (v2.0): 3840*2160P60/59.94/50/30/29.97/25; 1920*1080P60/59.94/50/30/29.97/25/24/23.98; 1920*1080160/59.94/50: 1280*720P60/59.94/50/30/29.97/25

    3G-SDI: 1920*1080P 60/59.94/50/30/29.97/25/24/23.98; 1920*1080i 60/59.94/50; 1280*720P 60/59.94/50/30/29.97/25

    USB-C:

    NV12/YUYV: 1920*1080P5: 1280*720P15; 1024*576P25; 800*448P30

    MJPG: 3840*2160P30: 1920*1080P60; 1280*720P60; 1024*576P60: 800*448P60

    H264/265: 3840*2160P30: 1920*1080P60: 1280*720P60: 1024*576P60: 800*448P60

    IP (Including NDI|HX Version):

    3840*2160P15-60; 1920*1080P15-60; 1280*720P15-60: 1024*576P15-60

  • 60°(Far)~2°(Near)

  • Wide: 1.35, Tele: 4.6
