BLADE VS+ FULL HD PTZ CAMERA

Blade VS+
Blade VS+
Blade VS+

Features and Scenarios

  • 1080p @ 60 fps

    1080p @ 60 fps

    The Blade VS+ runs video at up to 1080p Full HD at 60 frames per second. This smooth, high resolution video can run through HDMI and USB-C (USB2.0) connections, giving your livestreaming or recorded video excellent definition and superb image quality.

  • Power over USB-C

    Power over USB-C

    The Blade VS+ now comes with a USB-C port (running USB 2.0) through which you can run power, video, and control. One plug to rule them all.

  • 10x Optical + 12x Digital Zoom

    10x Optical + 12x Digital Zoom

    With a 10x Optical and 12x Digital zoom, you can get right into the details, whether it be zooming into a presenter or an equation on a classroom whiteboard. Lossless zoom ensures no drop in image quality, meaning you'll have no problem telling if that's a Δ or an α.

  • Connectivity

    Connectivity

    The Blade VS+ gives you options. Run Full HD Video simultaneously out through the HDMI and USB-C ports, enjoy Power and Control over USB, and have the versatility you need in your integrations.

Download Resources

Data Sheet
User Manual

Product Specifications

  • U2-10FHD3

  • HDMI: 1920*1080P60/59.94/50/30/29.97/25/24; 1920*1080I60/59.94/50; 1280*720P60/59.94/50/30/29.97/25

    USB-C:

    MJPG: 1920*1080P60; 1280*960P60; 1280*720P60; 1024*768P60; 800*600P60; 640*480P30; 320*240P60

    YUY2: ：640*480P30；320*240P30

  • 10x Optical zoom + 12x Digital zoom

  • 128 Presets: Visca over USB, RS232

    10 Presets: IR Remote Control (included)

  • Full HD resolution at 60fps via USB-C or HDMI

  • 62.5°

  • Pan: -170°~+170°; Tilt: 90°(up)~30°(down), Rotation Speed: Pan -0°~120°/s, Tilt -0°~80°/s, 10 camera pre-sets via RF Remote Control

  • RS232, RS485 (Serial VISCA, Pelco-P/D), USB-C (Compatible with USB2.0 (UVC1.1)), Zoom Room Controller supported, Angekis NECC on screen app control, 10 presets via RF Remote Control, 128 presets via RS232 Joystick

  • USB 2.0 (Type-C), HDMI

  • Supported

  • Supported

  • Supported

  • Supported

  • Supported

  • Supported

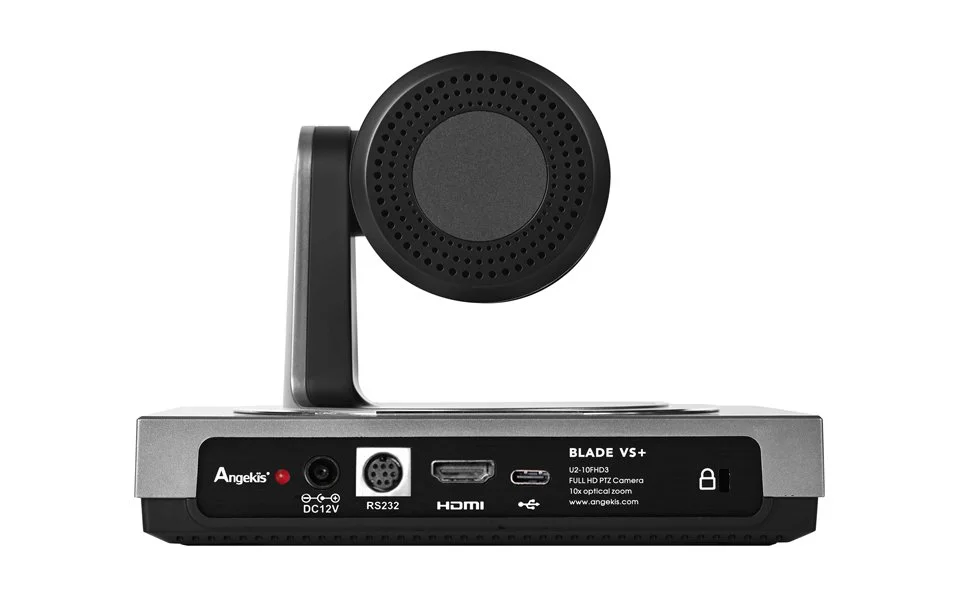

  • Power port: HEC3800, RS232 IN (Visca and Pelco), USB-C (USB2.0, HDMI (v1.4))

  • Camera mount included for wall, Reverse mountable, standard tripod screw on the bottom of the unit

  • Windows® 7/8/8.1/10, Mac OS® X 10.7 or higher, Google Chrome book version 29.0.1547.70, platform 4319.79.0

  • Working temperature:-10°~50°C

  • Consumption:12V, 2A; Max Consumption: 9W

  • 200 x 143 x 152mm

  • 1.25KG

  • 3 Years

  • Zoom, Adobe Connect, BlueJeans, CyberLink U Meeting®, Cisco WebEx®, Google Hangouts, GoToMeeting, Intel®UniteTM, Microsoft®LyncTM, Skype TM, Skype for Business, V-Cube

  • 1/2.8 inch, 2.4MP CMOS
