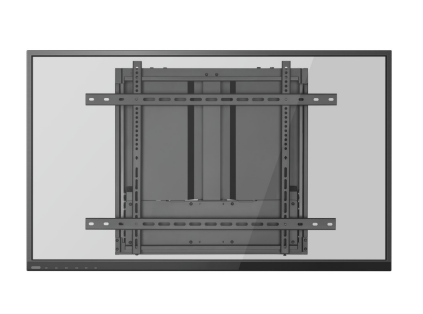

Anchor PRO Manual Height Adjustable Wall Mount
Features
Weight Balance Design: Accommodates varying display weights effortlessly, ensuring stable and secure mounting for a wide range of devices.
Keyhole Pattern: Enables quick and easy installation, simplifying the setup process and allowing for fast mounting and removal when needed.
Compact Design: Discreetly hides behind the screen when not in use, maintaining a clean and uncluttered appearance in any space.
Smooth Height Adjustment: Offers precise control over display positioning, allowing users to easily achieve their desired viewing angle for optimal comfort.
Available Models
ANHAW400-40
ANHAW400-70
ANHAW400-90

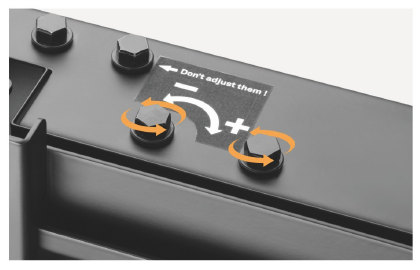

Weight Balance Design
Easily accommodates the different weights of displays.
Specifications
| Item No. | ANHAW400-40 | ANHAW400-70 | ANHAW400-90 |
|---|---|---|---|
| Screen Size | 37"–55" | 50"–70" | 60"–90" |
| Max. VESA | 800×400 | 800×600 | 1000×800 |
| Weight Capacity | 23/40kg / 50–88lbs | 40/60kg / 88–132lbs | 50/80kg / 110–176lbs |
| Strength Tested | Thrice (3 times) | Four times (4 times) | Five times (5 times) |
| Profile | 12mm (0.47") | 12mm (0.47") | 15mm (0.59") |
| Height Range | 400mm (15.7") | 400mm (15.7") | 500mm (19.7") |
| Material | Steel, Aluminum | Steel, Aluminum | Steel, Aluminum |
