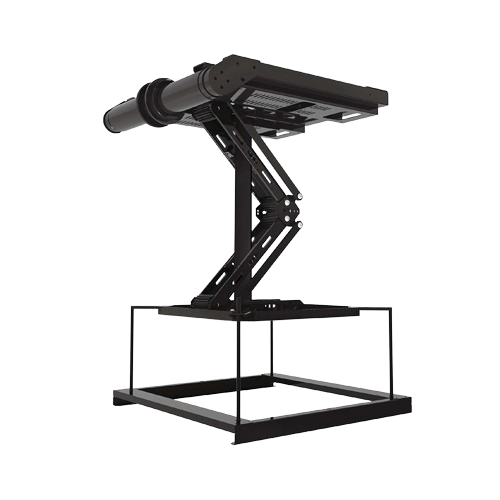

Anchor PRO ANLT150-PRO

Single Arm Heavy Duty Projector Lift

Features

Single-Armed Structure: Unlike the commonly-available scissors structure, the ANLT150-PRO uses a single-armed structure made from aluminum alloy, which prevents front-to-back and side-to-side swing problems.
Anti-Broken Structure: Ensures the security of use, providing a safe and reliable operation.
Customizable: Besides the standard sizes, the lift can be customized to meet specific requirements with up to 2 meters travel distance.
Weight Capacity: Supports a weight capacity of up to 40 kg, making it suitable for a variety of projector sizes.
Quiet Operation: Equipped with a special motor in roller design that maintains quiet and smooth operation.
Easy Installation: Designed for easy installation in different ceiling heights, allowing for flexible setup.
Durable Construction: Built with high-quality materials to ensure longevity and reliability.
Enhanced Stability: The unique design ensures the projector remains stable and secure during use.


    Specifications

          Model No.
          ANLT100-PRO

          Overall Size (WxDxH) MM
          453×528×129 mm

          Overall Ceiling Closure
          500×500 mm

          Distance from ceiling to false ceiling
          300 mm + Projector Height

          Traveling Distance
          150 cm

          Arm Thickness
          129 mm

          Max Projector Size
          50×50×15 cm, Customized

          Control
          RF/RS232/485

          Load Capacity (kg)
          ≤ 40

          Input Voltage
          220V

          Remote Control
          Remote Control Included

Resources

Download PDF
